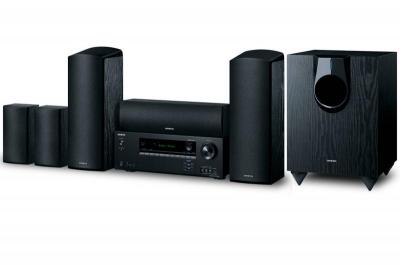

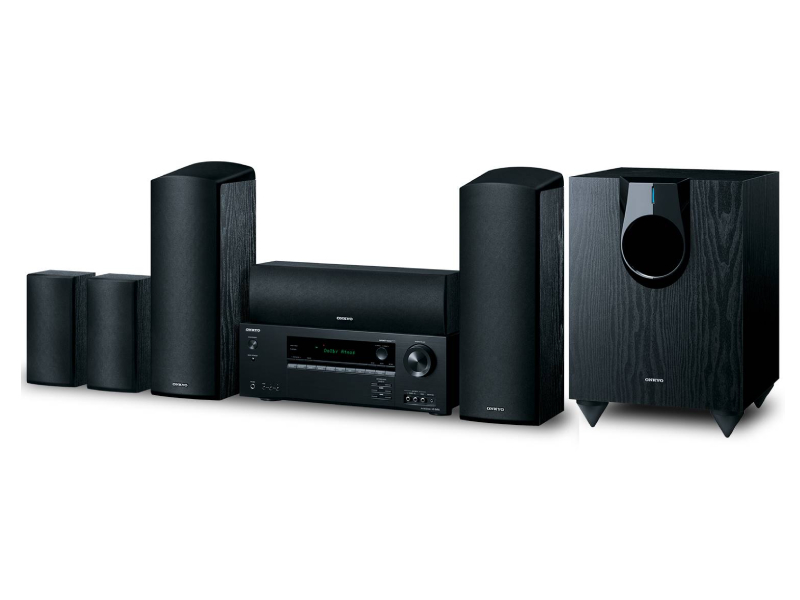

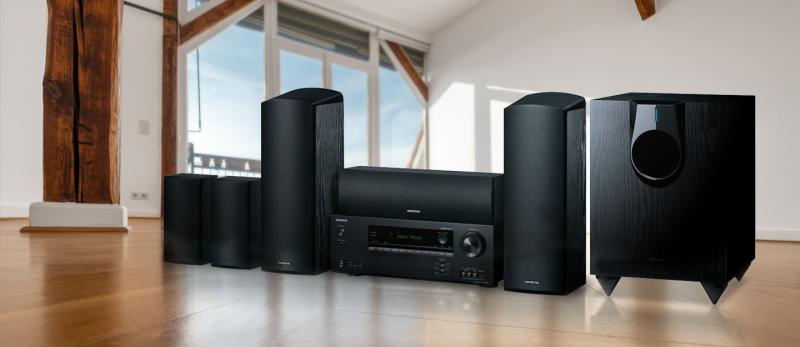

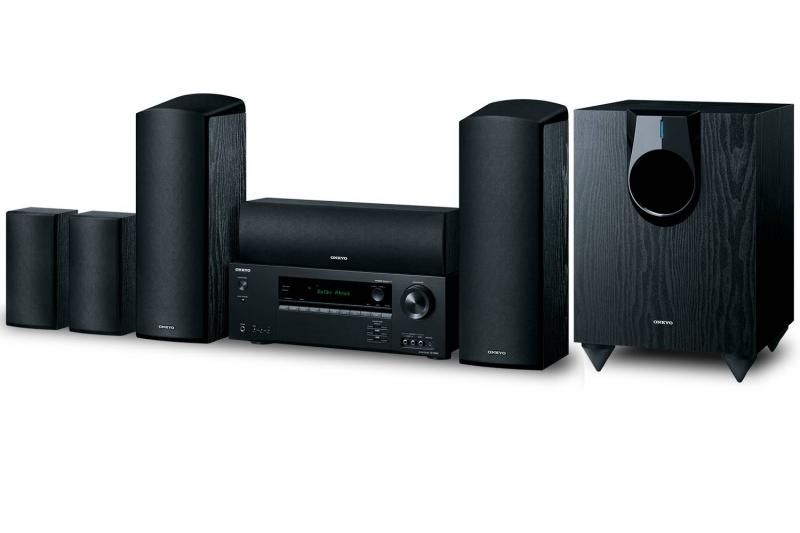

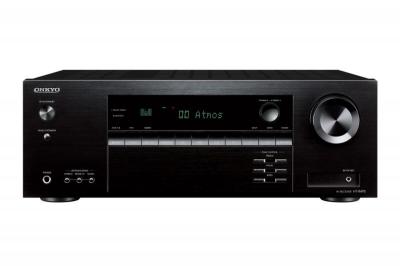

Dolby Atmos® and DTS:X® sound can be yours, minus speaker clutter and installation hassle, with the 5.1.2-Ch HT-S5910 Home Theater Package. High-current amps develop 160 W/Ch to wrap your friends and family in 3D sound thanks to Dolby Atmos-enabled woofers concealed in the front speakers.
- Supports Dolby Atmos® up to 5.1.2 Channels
- Dolby Atmos Height Virtualizer
- EASY BLUETOOTH VOLUME CONTROL
- Mind-Blowing 4K with High Dynamic Range
Supports Dolby Atmos® up to 5.1.2 Channels
With Dolby Atmos, sound comes alive from all directions, including overhead. The format combines a channel-based audio bed with object-oriented sound to place and move specific effects around the room, creating a breathtakingly realistic and captivating sonic atmosphere.
Sound designers and artists are free to mix in a 3D space, steering effects through surround channels and adding a seamless overhead dimension with discrete height channels.
Additionally, a new Dolby surround up-mixer allows for your current channel-based content (that has not been mixed for Dolby Atmos) to be expanded to fill the flexible speaker layouts of a Dolby Atmos system.
Dolby Atmos Height Virtualizer
When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
EASY BLUETOOTH VOLUME CONTROL
Outfitted with the latest Bluetooth technology, this receiver gives you the freedom to choose how loud you experience your music, movies, and games. Listen quietly through your Bluetooth headphones without sacrificing sound quality or waking your kids. Or, while the rest of the family enjoys the speakers at a moderate volume, accommodate one person who may need help hearing via Bluetooth headphones.
Mind-Blowing 4K with High Dynamic Range
Prepare to be dazzled by the sharpest, brightest, and most vibrant picture in 4K resolution, with full support for HDR across all six HDMI inputs (including HDR10, HLG, Dolby Vision®, and BT.2020, and 4:4:4 color space). Watch the same source in two different rooms, via the MAIN OUT + SUB OUT configuration, or two different sources in two different rooms when using the MAIN OUT + ZONE 2 OUT option. Audio Return Channel (ARC) means you can stream audio directly from your smart TV back into your surround system for a completely immersive audio experience.
SYSTEM | |
---|---|
# Channels | 5.1.2 |
Total System Power | 925W |
Power (6 ohms, 1kHz, 0.9% THD, 1 Ch Driven, FTC)/Ch | 115 W/ch x 7 ch |
Subwoofer Power | 120W |
All Discrete Amplifier Circuitry | ✓ |
Processing | |
Dolby Atmos Ready | ✓ |
32-Bit Digital Signal Processing Engine | ✓ |
Dolby Decoder | Atmos, TrueHD, DD Plus |
DTS Decoder | DTS-HD Master Audio, HD-High Resolution Audio, NEO:6 |
ONKYO GAME Surround Modes | ✓ |
AccuEQ | ✓ |
Advanced Music Optimizer | ✓ (Bluetooth Included) |
Phase-Matching Bass Boost | ✓ (for Deep Bass and Clear Mid-Range) |
192K/24 Bit DACs | ✓ (Burr-Brown) |
Bluetooth | ✓ (Built-in) |

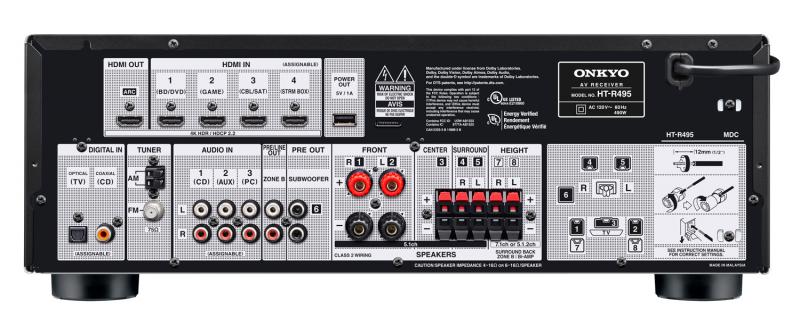

Connectivity | |
Audio I/O | 7 / 0 |
Digital Audio IN (OPT/COAX) | 2 / 1 |
Composite I/O | 3 / 0 |
USB Input | ✓ (Rear) |
Component Video I/O | 2 / 0 |
HDMI I/O | 4 / 1 |
HDMI 2.0 4K/60 Hz- Capable HDMI Terminals | ✓ |
HDCP 2.2 Copy-Protection Compatibility | ✓ |
HDMI Support for 3D, Audio Return Channel and CEC | ✓ |
HDMI Support for Deep Color, x.v.Color, LipSync | ✓ |
HDMI Support for DVD-Audio, SACD, Multichannel PCM | ✓ |
InstaPrevue Input Source Prevue | |
Analog To HDMI UpConversion | ✓ (from 480i/576i) |
4K Passthrough | ✓ |
Streaming Audio From USB memory | ✓ |
SPEAKER | |
Front / Height Speakers | 2-Way Bass Reflex / Dolby Atmos Enabled Full-Range, Acoustic Suspension |
Center Speaker | 2-Way Bass Reflex |
Surround Speaker | Full-Range, Acoustic Suspension |
Subwoofer | Bass Reflex, Powered |
Cabinet Type | Cabinet Type |
MISCELLANEOUS | |

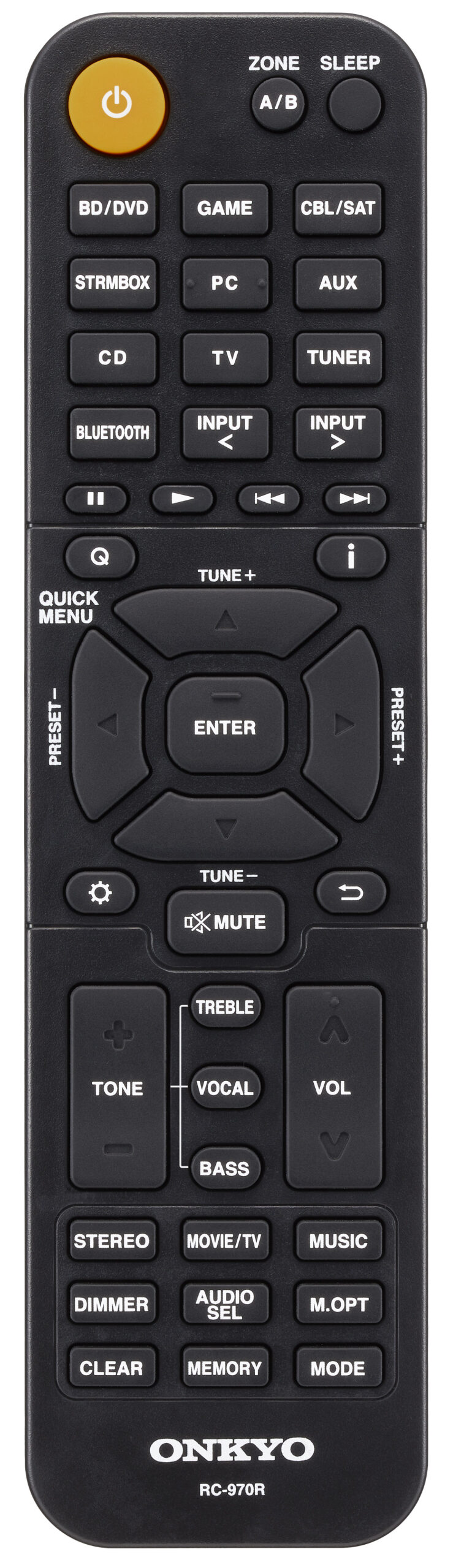

Pre-Pro/Learning Remote | ✓ / - |
On Screen Remote Programming | ✓ |
Auto Speaker Calibration W/Mic. | ✓ (AccuEQ) |
OSD Out | ✓ |
Warranty | 2 YEARS |
Amplifier | |
All Channels | 115 W/Channel (6 Ohms, 1 kHz, 0.9%, 1 Channel Driven, FTC) |
Dynamic Power (front) | 160 W (3 Ohms) 125 W (4 Ohms) 85 W (8 Ohms) |
THD+N (Total Harmonic Distortion + Noise) | 0.08% (20Hz-20kHz, half power) |
Damping Factor | 60 (Front, 1 kHz, 8 Ohms) |
Input Sensitivity and Impedance | 200 mV/47 k-ohms (Line) |
Rated RCA Output Level and Impedance | 200 mV/470 Ohms (Subwoofer Pre Out) |
Maximum RCA Output Level and Impedance | 2 V/470 Ohms (Subwoofer Pre Out) |
Frequency Response | 10 Hz–100 kHz/ +1 dB, -3 dB (Direct mode) |
Tone Control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
Signal-to-Noise Ratio | 100 dB (Line, IHF-A) |
Speaker Impedance | 6 Ohms–16 Ohms |
Video | |
Video | 1.0 Vp-p/75 Ohms (Component Y) 0.7 Vp-p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 Ohms (Composite) |
Component Video Frequency Response | 5 Hz–13.5 MHz (+ 0dB / -3 dB) |
TUNER | |
FM | 87.5 MHz–107.9 MHz |
AM | 530 kHz–1,710 kHz |
FM/AM Preset Memory | 40 Stations |
Speaker - Type | |
Front/Center | 2-Way Bass Reflex |
Height | 3 1/4" (8 cm) Cone |
Surround | 80 Hz–20 kHz |
Subwoofer | 10" (25 cm) Cone |
Front | 5" (12 cm) Cone Woofer 1" (2.5 cm) Balanced-Dome Tweeter |
Center | 3 1/4" (8 cm) Cone Woofer x2 |
Speaker - Frequency Response | |
Front | 55 Hz–50 kHz |
Height | 80 Hz–20 kHz |
Center | 65 Hz–50 kHz |
Subwoofer | 25 Hz–150 Hz |
