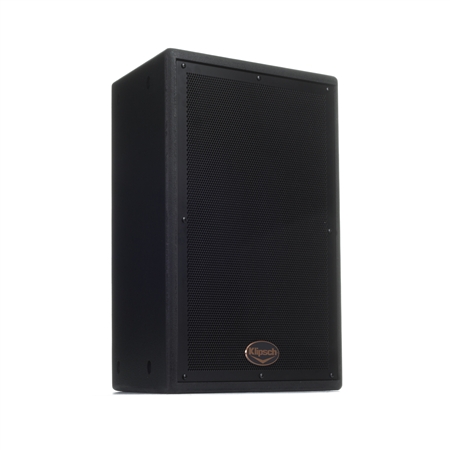

The KI-262-SMA-II two-way trapezoidal loudspeaker is ideally suited for applications where small size uniform power response and ease of installation contribute to a quality sound solution. The Tractrix® Horn- loaded KI-262-SMA-II is recommended for use in theaters, auditoriums, clubs, churches, and A/V production environments.
Able to hang using 16 built-in 3/8” 16-thread fly points the KI-262-SMA-II provides the coverage control, fidelity, and reliability expected of Klipsch professional loudspeakers. The plywood enclosure uses dado “lock-joint” and rabbet construction techniques on CNC- fabricated panels for long-term reliability and ruggedness.
| Specification | |
|---|---|
| FREQUENCY RESPONSE: | 71Hz-20kHz +/- 3dB -10dB @ 57Hz |
| SENSITIVITY: | 100dB |
| POWER HANDLING: | 300 watts (35V) (1200 watts peak) |
| CALCULATED MAX CONTINUOUS OUTPUT: | 121dB (127dB peak) |
| NOMINAL IMPEDANCE: | 8 ohms, minimum 4.1 ohms @ 152Hz |
| COMPONENTS: | One K-281-EP 12" woofer One K-70-G 1.75" titanium compression driver on a K-604 horn |
| CROSSOVER FREQUENCY: | 900Hz |
| ENCLOSURE MATERIAL: | 3/4" 7-ply birch plywood cabinet 1" MDF motorboard |
| INPUT CONNECTIONS: | Two point barrier strip |
| COVERAGE: | Horizontal 60° +/-15 2kHz-20kHz Vertical 40° +/-20 4kHz-20kHz |
| DIRECTIVITY INDEX (DI): | 12dB+/-4dB 2kHz-20kHz |
| DIRECTIVITY FACTOR (Q): | 18 |
| HEIGHT: | 23" (58.42cm) |
| WIDTH: | 17" (43.18cm) Front 6.8" (17.27cm) Rear |
| DEPTH: | 12.6" (32.03cm) |
| WEIGHT: | 49 lbs. (22.27kg) |
