Klipsch 12" Commercial Monitor multi angle, high SPL KI396BSMAII KI396BII
$4,099.00 CAD
You may also like

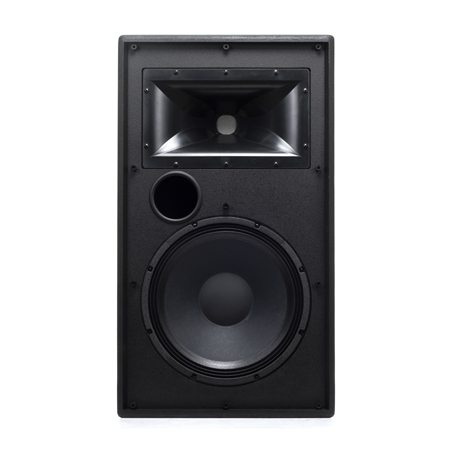

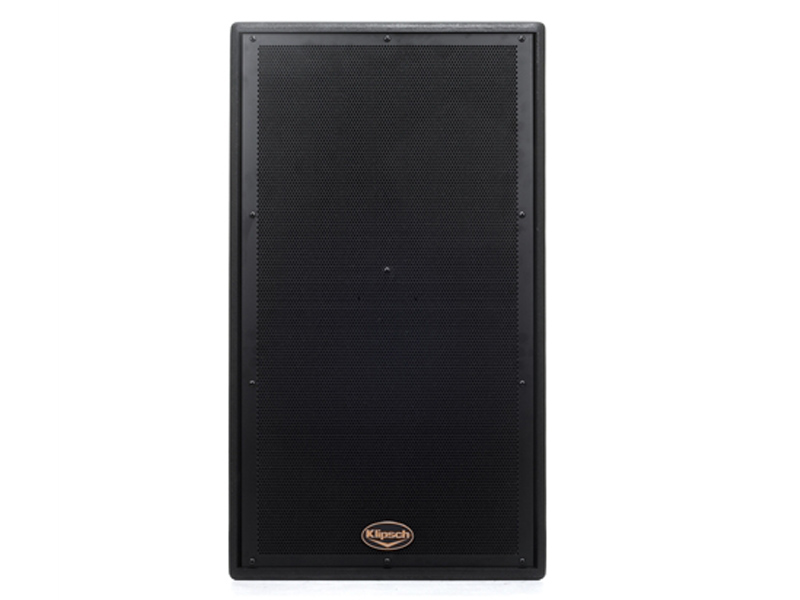

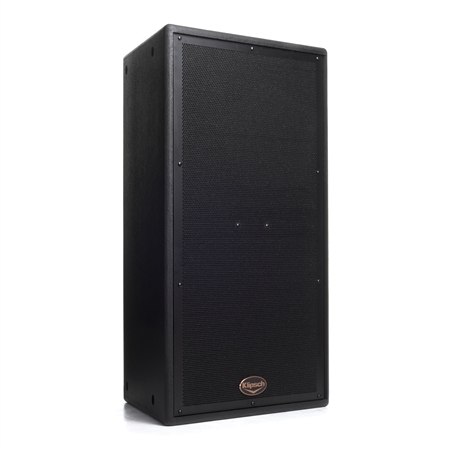

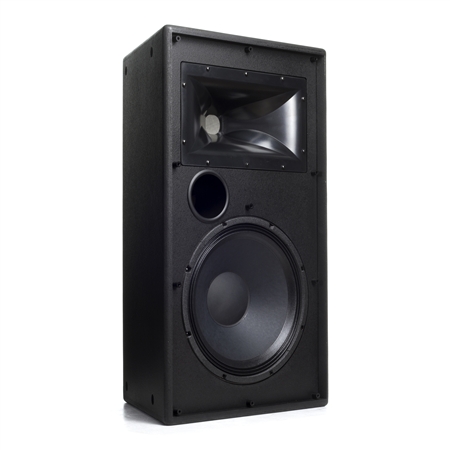

The Klipsch KI-396-SMA-II has incredible output capability with exceptional low-distortion clarity. The compact 22.5° symmetrical, trapezoidal design houses a 15” high-excursion cast frame heavy-duty woofer, a large 3” titanium high-frequency compression driver and a 90°x60° Tractrix® "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.
The KI-396-SMA-II permanent install speaker has 16 suspension points (4 per side) for flexible mounting and rigging bar compatibility
and includes an internal high current full-range crossover.
| Specification | |
|---|---|
| FREQUENCY RESPONSE: | 60Hz-18kHz +/- 3dB -10dB @ 35Hz |
| SENSITIVITY: | 101dB |
| POWER HANDLING: | 600 watts (55V) (2400 watts peak) |
| CALCULATED MAX CONTINUOUS OUTPUT: | 127dB (133dB peak) |
| NOMINAL IMPEDANCE: | 8 ohms, minimum 5.1 ohms @112Hz |
| COMPONENTS: | One K-48-ST 15" woofer One KDE-75-8P 3" titanium compression driver on a K-510 horn |
| CROSSOVER FREQUENCY: | 1kHz |
| ENCLOSURE MATERIAL: | 3/4" 7-ply birch plywood cabinet 1" MDF motorboard |

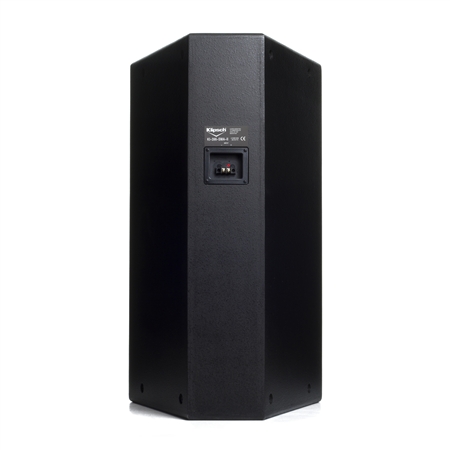

| INPUT CONNECTIONS: | Two point barrier strip |
| COVERAGE: | Horizontal 90° +/-30 500Hz-12kHz Vertical 50° +/-20 1.6kHz-20kHz |
| DIRECTIVITY INDEX (DI): | 10dB+/-3dB 1.6kHz-20kHz |
| DIRECTIVITY FACTOR (Q): | 10 |
| HEIGHT: | 34.3" (87.12cm) |
| WIDTH: | 19.8" (50.29cm) Front 6.8" (17.27cm) Rear |
| DEPTH: | 16" (40.64cm) |
| WEIGHT: | 76 lbs. (34.54kg) |
| MOUNTING OPTIONS: | Sixteen 3/8"-16 flypoints |
| FINISHES: | Black, White and Raw |
