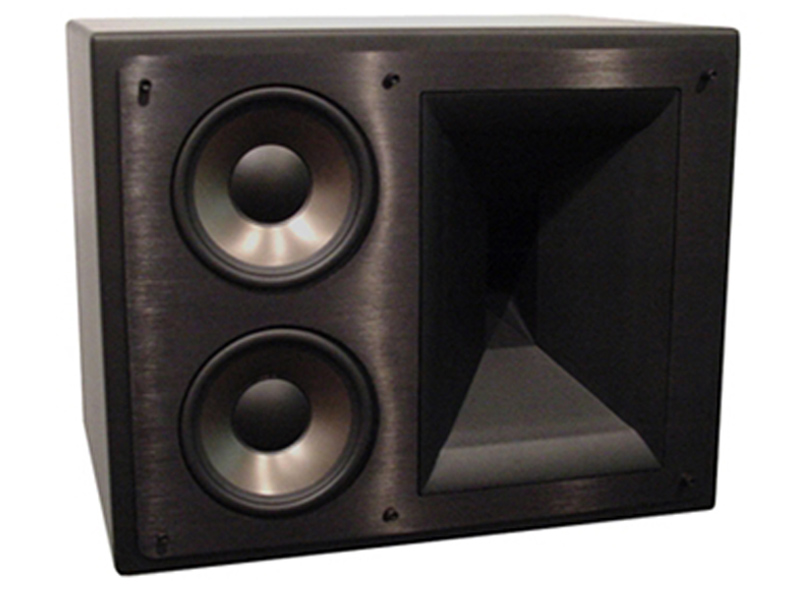

By using the same research and development used to create its professional cinema systems, Klipsch has developed the KL-525-THX LCR loudspeaker to create real theater-style sound in the comforts of home. As part of the THX® Ultra2 family, this LCR reproduces all the passion that the filmmakers originally intended.
- Sealed enclosure
- Top-of-the-line internal wiring
- Dual 5.25-inch Cerametallic™ woofers
1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix® Horn
- As the smaller of the two LCR speakers in the Ultra2 family, the highly efficient KL-525-THX features a sealed enclosure, top-of-the-line internal wiring, dual 5.25-inch Cerametallic™ woofers and a 1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix® Horn.
- The KL-525-THX enclosure has the same dado and rabbet construction used in Klipsch professional speakers ensuring cabinet integrity in suspended applications. The Omni-Mount suspension points on this loudspeaker facilitate wall or ceiling mounting using standard hardware.
- Available in a custom Galaxy black finish with an aluminum fascia, the KL-525-THX delivers dynamic audio experiences that draw listeners into the middle of live concerts and action packed movies.
Specifications | |
---|---|
FREQUENCY RESPONSE: | 80Hz-20kHz (+-)3dB |
SENSITIVITY: | 94dB @ 2.83 volts / 1 meter |
POWER HANDLING: | 100 w max continuous (400 w peak) |
NOMINAL IMPEDANCE: | 8 ohms compatible |
TWEETER: | 1" (2.5cm) magnetically shielded, titanium dome compression driver with 9.6oz ceramic magnet structure |
HIGH FREQUENCY HORN: | 10" x 6" rectangular 90 x 60 Tractrix Horn |
WOOFER: | Two 5.25" (13.3cm) magnetically shielded, Cerametallic cone, cast aluminum frame drivers |
CROSSOVER FREQUENCY: | 1500Hz |
ENCLOSURE MATERIAL: | MDF |
ENCLOSURE TYPE: | Sealed |
INPUT CONNECTIONS: | 2 sets of binding post speaker terminals (connected via brass strap jumpers) |
DIMENSIONS: | 12.75" (32.4cm) H x 16" (40.6cm) W x 12.5" (31.8cm) D (w/ grille) |
WEIGHT: | 32 lbs. (14.5kg) |
MOUNTING: | 4-bolt pattern, 1/4"-20 thread |
FINISHES: | Galaxy Black cabinet with Black anodized aluminum fascia |
BUILT FROM: | 2004 |
