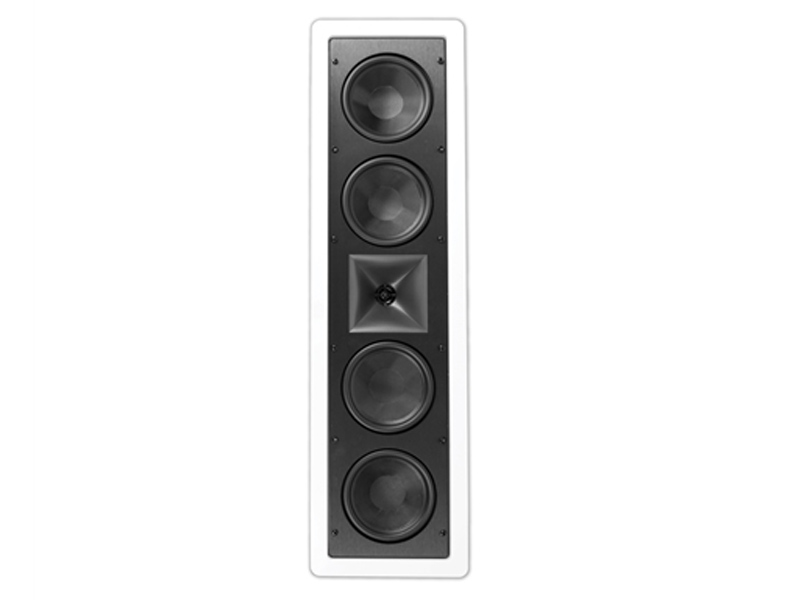

Delivering music and home theater performances equivalent to a high-end floorstander, the KL-6504-THX is a premium architectural solution for flat-panel TVs. As one of the world's first THX® Select2-certified in-wall speakers, it brings consistent and compelling audio to larger areas.
- THX Select2-certified for superior sound
- Horn-loaded for high efficiency and low distortion
- Sized for 42-inch and larger flat-panel TVs
- Easily mounts horizontally or vertically
- Maximum installation reliability
- Mix and match with our other THX products
Never before has Klipsch offered such premium performance in an in-wall speaker. You’ll discover it delivers effortless dynamic range and brings superior sound to larger rooms thanks to its highly regarded THX Select2 certification.
The KL-6504-THX employs four high-output 5.25-inch fiberglass woofers for powerful bass impact while a 1-inch titanium tweeter mated to a new symmetrical pattern 90 x 90 square Tractrix® Horn generates flat in-room frequency response with high efficiency and low distortion. This exclusive horn design also allows the speaker to consistently deliver unbeatable sound whether it’s installed horizontally or vertically.
The KL-6504-THX’s titanium horn-loaded tweeter is mated to the woofers using precision-voiced high-definition crossover networks creating high sensitivity. This makes the speaker easier to drive so it requires a lot less amplification power than conventional designs.
Adding to its first-class sound the KL-6504-THX also has a premium look and feel with its grille off featuring a deluxe MDF baffle with aluminum fascia. But when covered the speaker’s paintable grille allows it to blend in perfectly with any home décor. All-new sure-grip mounting dogs offer even pressure against drywall for long-term installation reliability.
Furthermore the KL-6504-THX comes with a lot of options. It is timbre matched to all of our THX-certified products so you can mix and match for the discreet stereo or home theater system that’s just right for you.
Specification | |
---|---|
FREQUENCY RESPONSE: | 46Hz-20kHz +/-3dB |
SENSITIVITY: | 92dB @ 2.83V / 1m |
POWER HANDLING: | 150W continuous / 600W peak |
NOMINAL IMPEDANCE: | 8 ohms compatible |
RECOMMENDED AMPLIFIER POWER: | 200W |
HIGH FREQUENCY DRIVERS: | 1" (2.5cm) Titanium diaphragm compression driver mated to 90 x 90 square Tractrix Horn |
LOW FREQUENCY DRIVERS: | Four 5.25" (13.3cm) high-output, fiberglass cone woofers |
ENCLOSURE MATERIAL: | MDF & Aluminum motorboard / ABS frame |
ENCLOSURE TYPE: | Infinite baffle, front flush with wall |
DIMENSIONS: | 28.5" (72.4cm) H x 8" (20.3cm) W |
CUTOUT DIMENSIONS: | 27.25" (69.2cm) H x 6.5" (16.5cm) W |
MOUNTING DEPTH: | 3.75" (9.5cm) |
WEIGHT: | 18.3lbs (8.3kg) |
FINISHES: | White paintable frame and grille |
INSTALLATION KIT: | IK-504-W (sold seperately) |
BUILT FROM: | 2008 |
