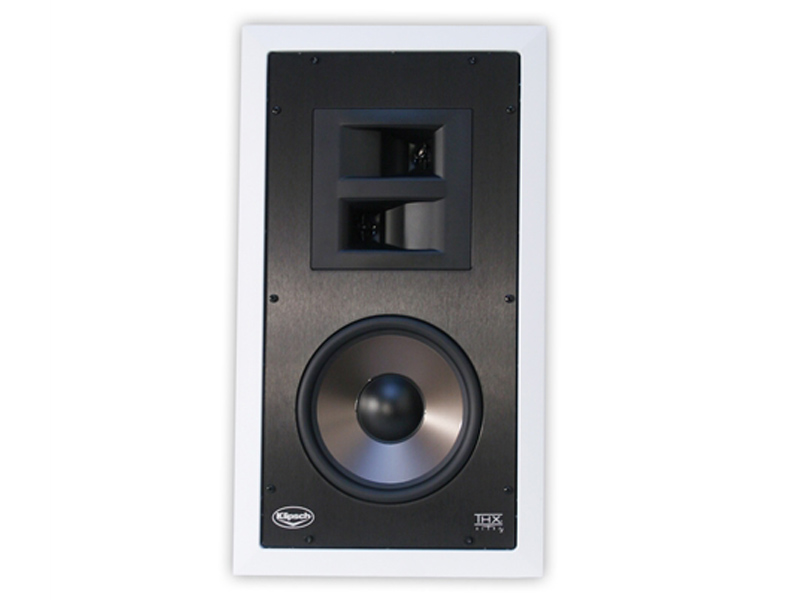

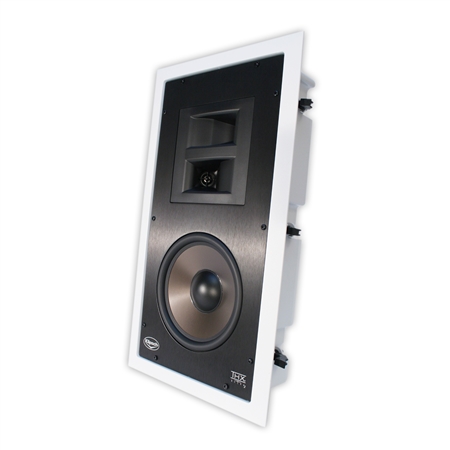

Developed to bring a whole new dimension of reality to home theater, the Klipsch KS-7800-THX offers the ultimate surround sound performance in a flush-mount design.
- THX® Ultra2 certification
- 8-inch aluminum woofer
- Two vertically-stacked Tractrix Horn-loaded tweeters
- Utilizes Klipsch's Wide Dispersion Surround Technology™
Because of its THX® Ultra2 certification, the KS-7800-THX works well with movie presentations playing up to reference levels in rooms of 3,000 cubic feet or larger.
The KS-7800-THX is also capable of delivering the same high-output, low distortion signature sound as its traditional enclosure counterpart, the KS-525-THX. It employs an 8-inch aluminum woofer and a patented horn array, consisting of two vertically-stacked Tractrix Horn-loaded tweeters.
In order to create enveloping sound fields and precise localization of individual effects, this speaker also utilizes Klipsch's Wide Dispersion Surround Technology™. Also referred to as WDST, this no-compromise approach gives the KS-7800-THX much more placement flexibility than conventional designs.

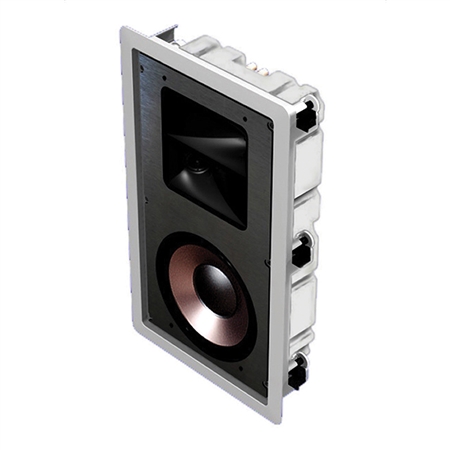

Featuring an integrated back box enclosure, the KS-7800-THX's response is both predictable and repeatable. Because this enclosure fits easily within the loudspeaker's footprint, the KS-7800-THX can be installed into new or existing construction.
Combine this dynamic loudspeaker with Klipsch's KL-7800-THX LCR speaker, KW-120-THX subwoofer and KA-1000-THX subwoofer amplifier to create a variety of THX Ultra2 in-wall system configurations. The KS-7800-THX can also be mixed and matched with the Klipsch THX Ultra2 traditional box products.
Specification | |
---|---|
FREQUENCY RESPONSE: | 80Hz-20kHz+/-3dB |
SENSITIVITY: | 91dB @ 2.83 volts / 1 meter |
POWER HANDLING: | 100 w Continuous (400 w Peak) |
NOMINAL IMPEDANCE: | 8 ohms |
TWEETER: | Two 1 (2.5cm) Titanium dome compression drivers with neodymium motor structures |
HIGH FREQUENCY HORN: | Patent-pending |
WDST Tractrix Horn Array WOOFER: | 8 (20.3cm) Cerametallic cone, cast aluminum frame driver |
CROSSOVER FREQUENCY: | 2130Hz |
ENCLOSURE MATERIAL: | MDF Motorboard; ABS Shell |
ENCLOSURE TYPE: | Sealed |
HEIGHT: | 20.8" (52.7 cm) |
WIDTH: | 11.8" (29.8 cm) |
DEPTH: | 4.5" (11.4 cm) |
CUTOUT DIMENSIONS: | Height: 19" (48.3 cm), Width: 10" (25.4 cm) |
MOUNTING DEPTH: | 3.7" (9.4 cm) |
WEIGHT: | 17 lbs (7.7 kg) |
FINISHES: | Paintable white frame (Brushed Aluminum Fascia) |
INSTALLATION KIT: | IK-802-W (sold separately) |
BUILT FROM: | 2006 |
