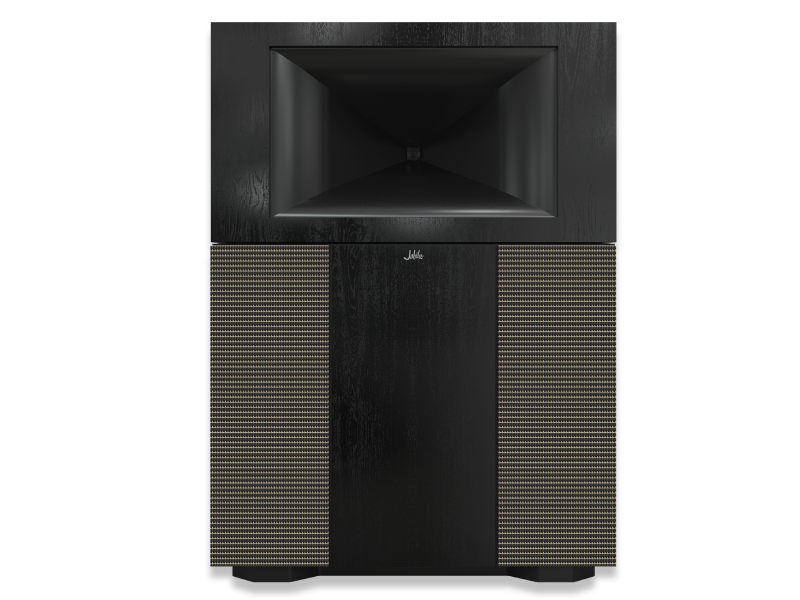

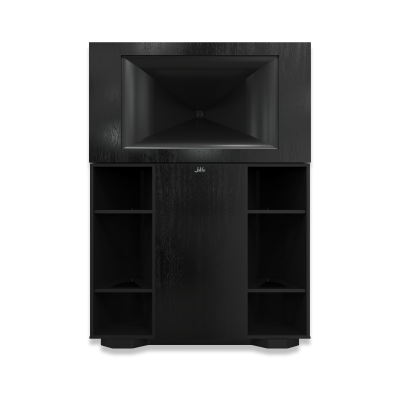

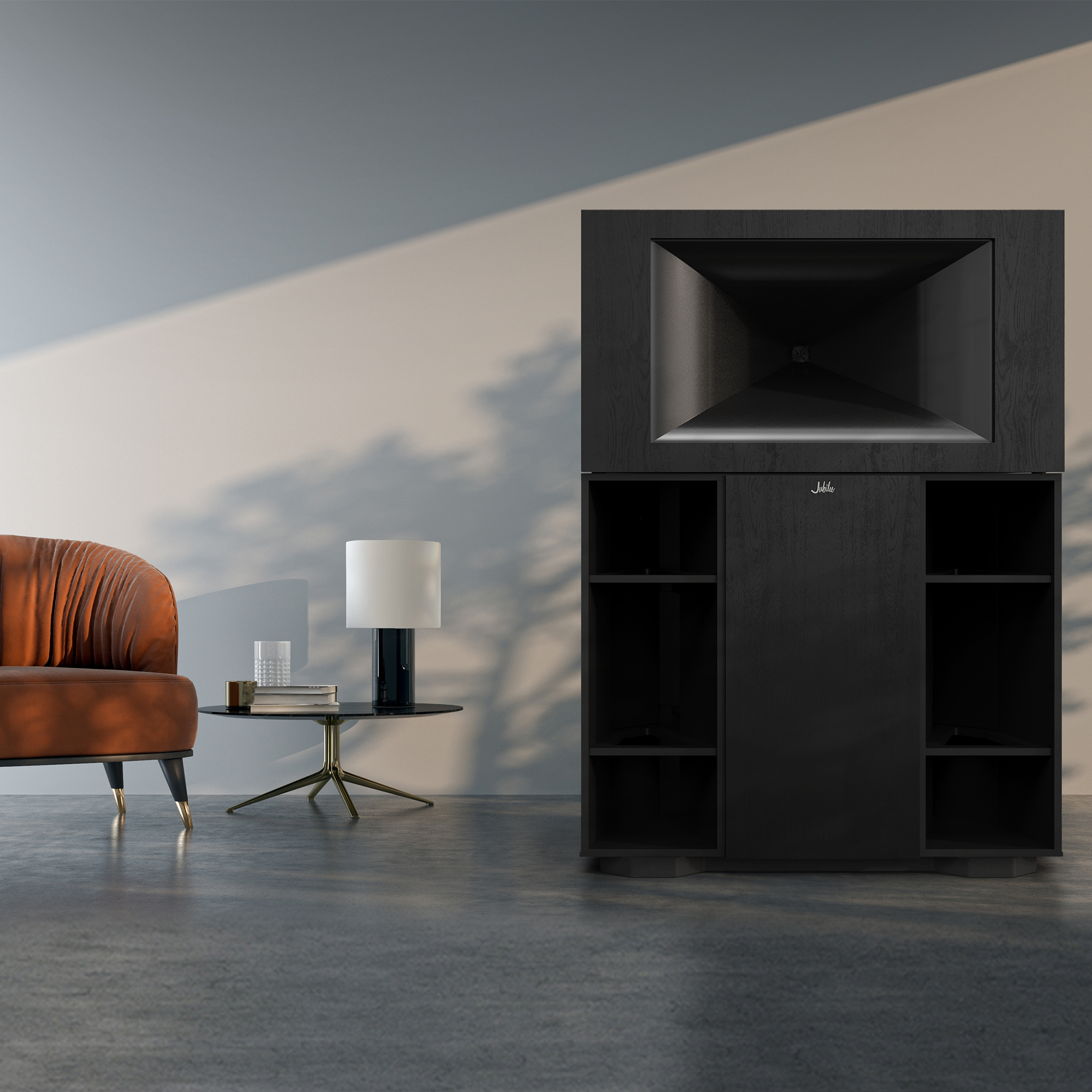

Klipsch Jubilee Floorstanding Speaker in Black Ash - JUBILEESB
You may also like
FLOORSTANDING SPEAKER
A PAUL W. KLIPSCH DREAM COME TRUE
The Klipsch Jubilee is founder Paul W. Klipsch's (PWK) final project. His dream was to create a loudspeaker to satisfy even the most ardent audiophiles. Originally intended to be the successor to the Klipschorn, PWK soon realized it was much more than that.
FROM DREAMS TO REALITY

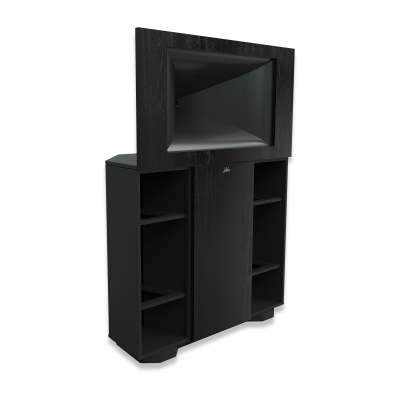

Designed to deliver the ultimate listening experience, the Klipsch Jubilee is a fully horn-loaded two-way loudspeaker incorporating the latest acoustic technology, including a patented horn-loaded vented low frequency enclosure and an all-new horn-loaded compression driver.
CONCERT QUALITY AT HOME
Musically accurate, the Klipsch Jubilee features an optimal active crossover designed for perfect phase coherency. You get smooth, effortless performances as though the musicians are in the room.
FEEL THE MUSIC

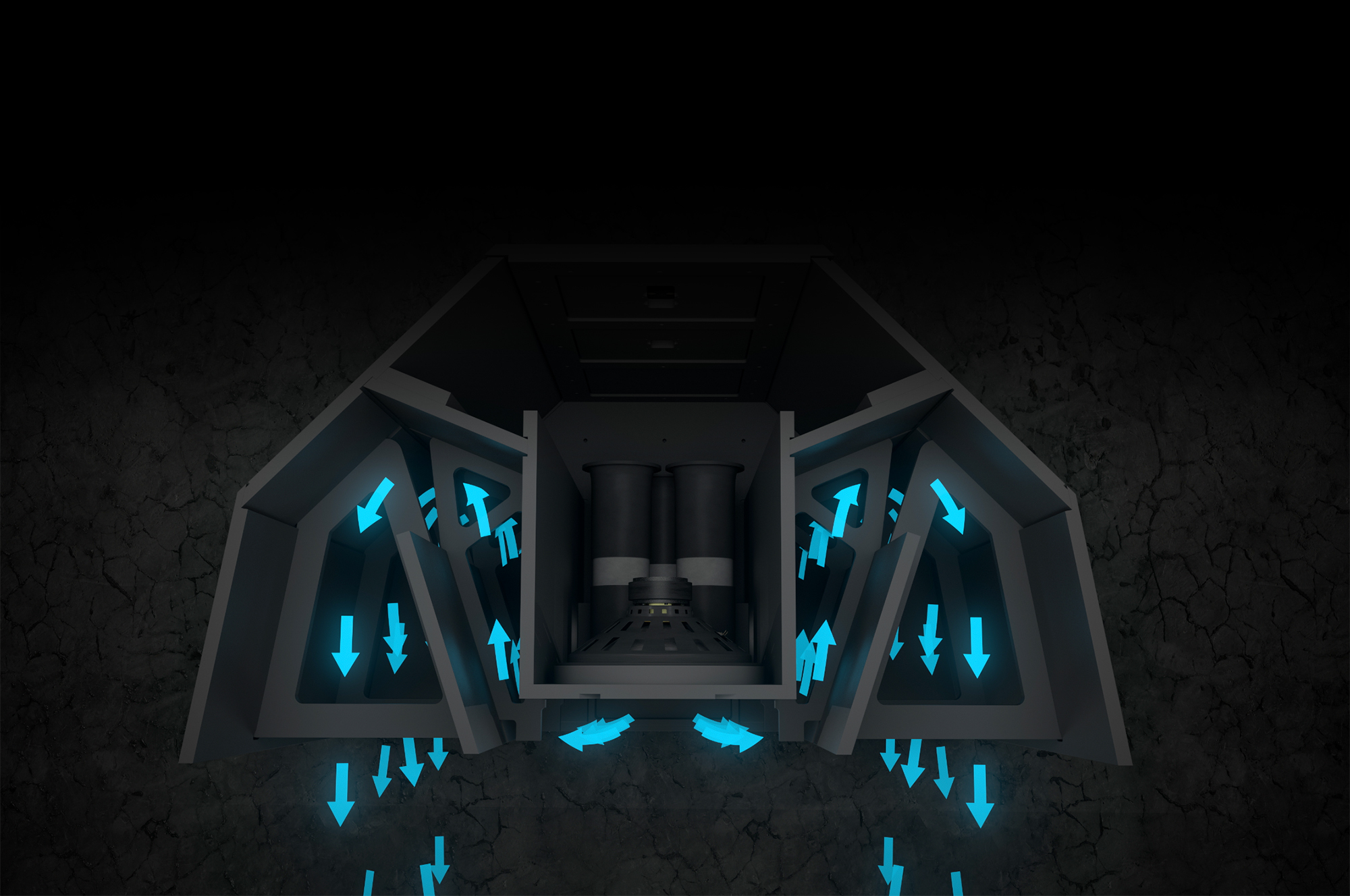

The Klipsch Jubilee's one-dimensional, folded-horn vented system creates an unparalleled listening experience:
- Maximizes output while minimizing distortion for clean, dynamic bass
- Leverages efficiencies of both vented and horn loaded systems
EXTERNAL WIDE DISPERSION PHASE PLUG
A wider, more even dispersion of high frequencies delivers an improved soundstage and imaging to hit that all-important sweet spot.

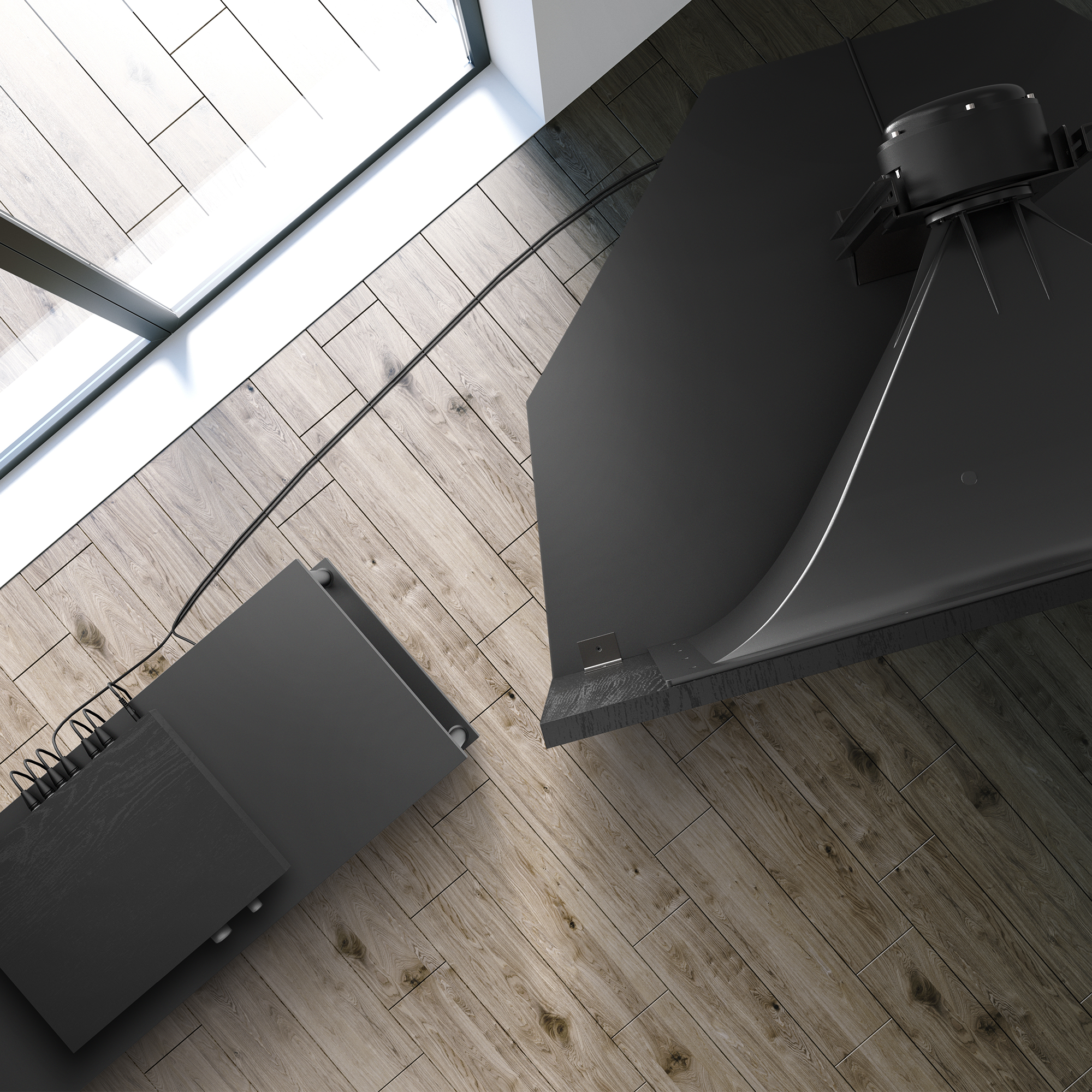

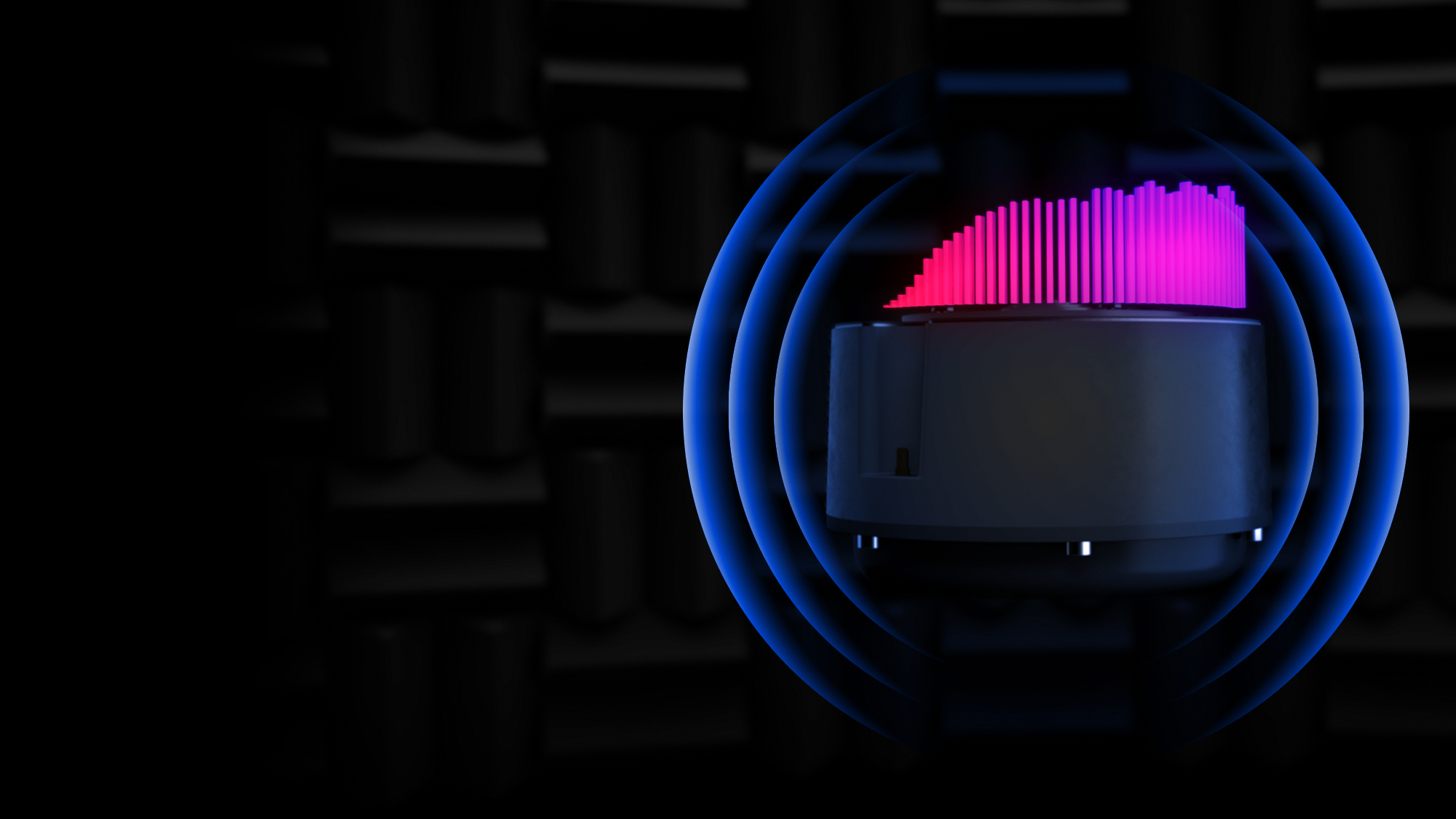

STATE-OF-THE-ART HIGH-FREQUENCY COMPRESSION DRIVER
- Lowers crossover point below mid-range frequencies for seamless clarity
- High-efficiency, maximum output, minimal distortion
- Axiperiodic design ensures extended response and effortless performances
ACTIVE CROSSOVER FOR CLEANER SOUND
The active crossover maximizes output and adjusts the driver's time delay and phase for true-to-life sound.

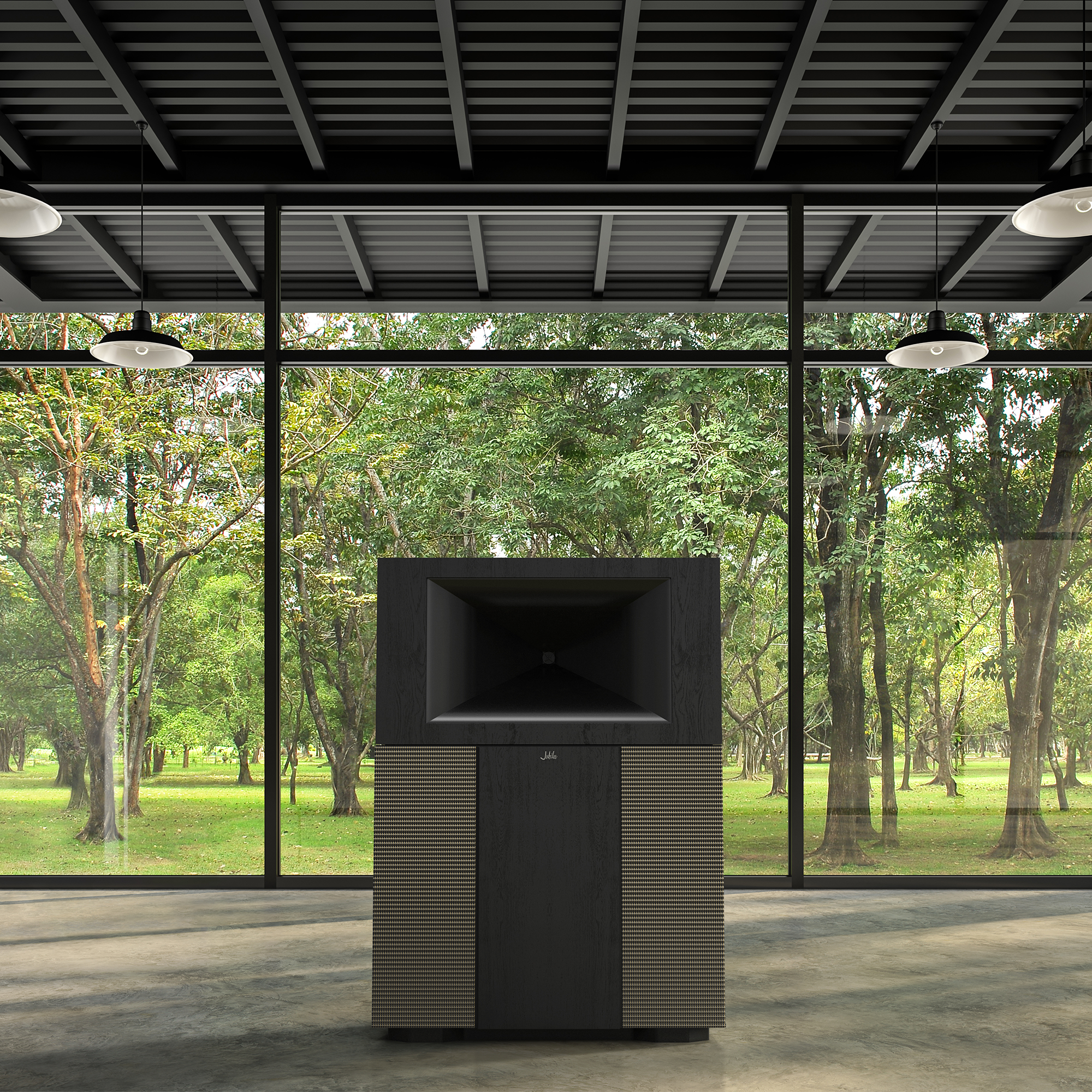

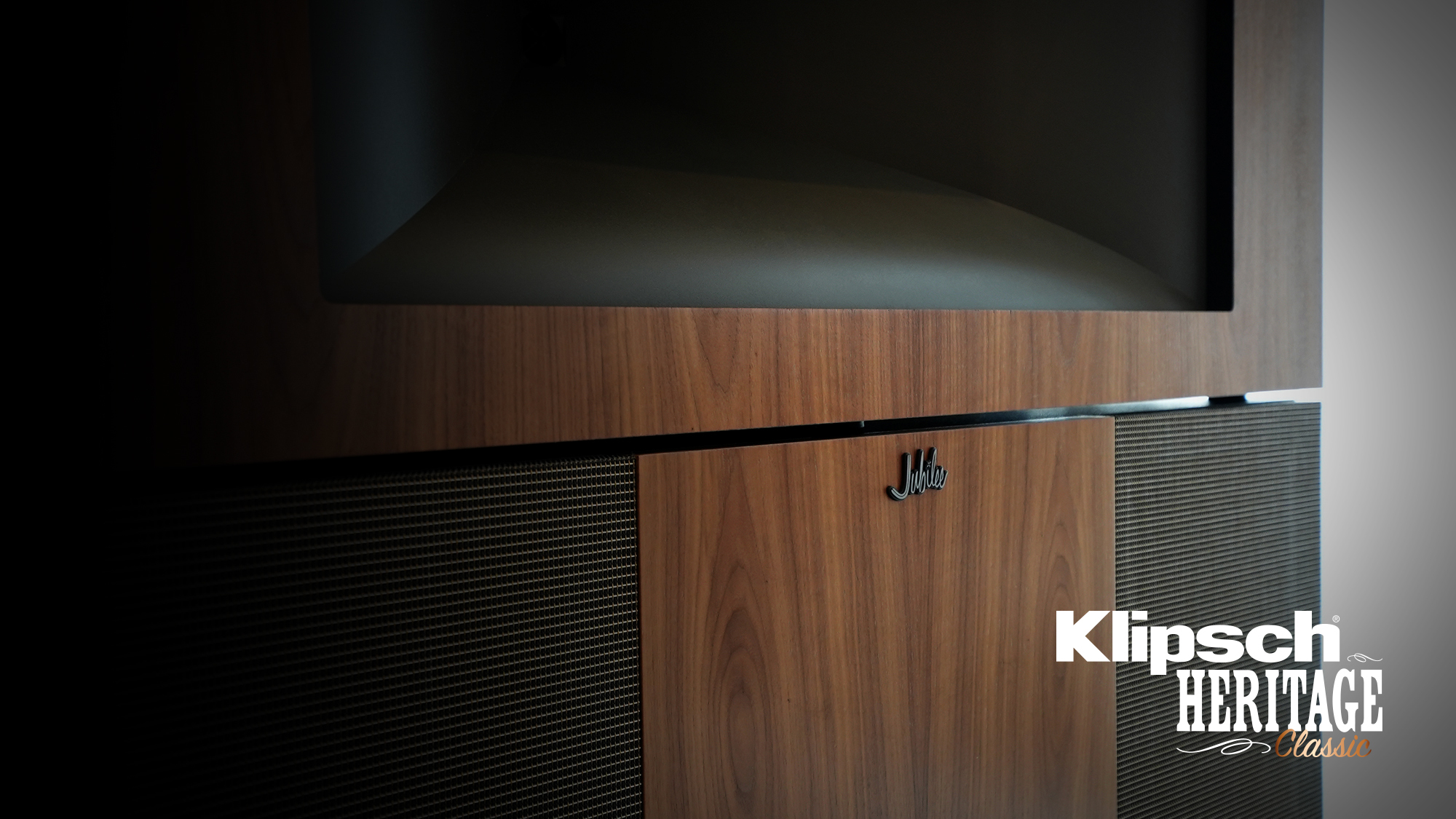

HEIRLOOM-QUALITY, SHOWSTOPPING DESIGN

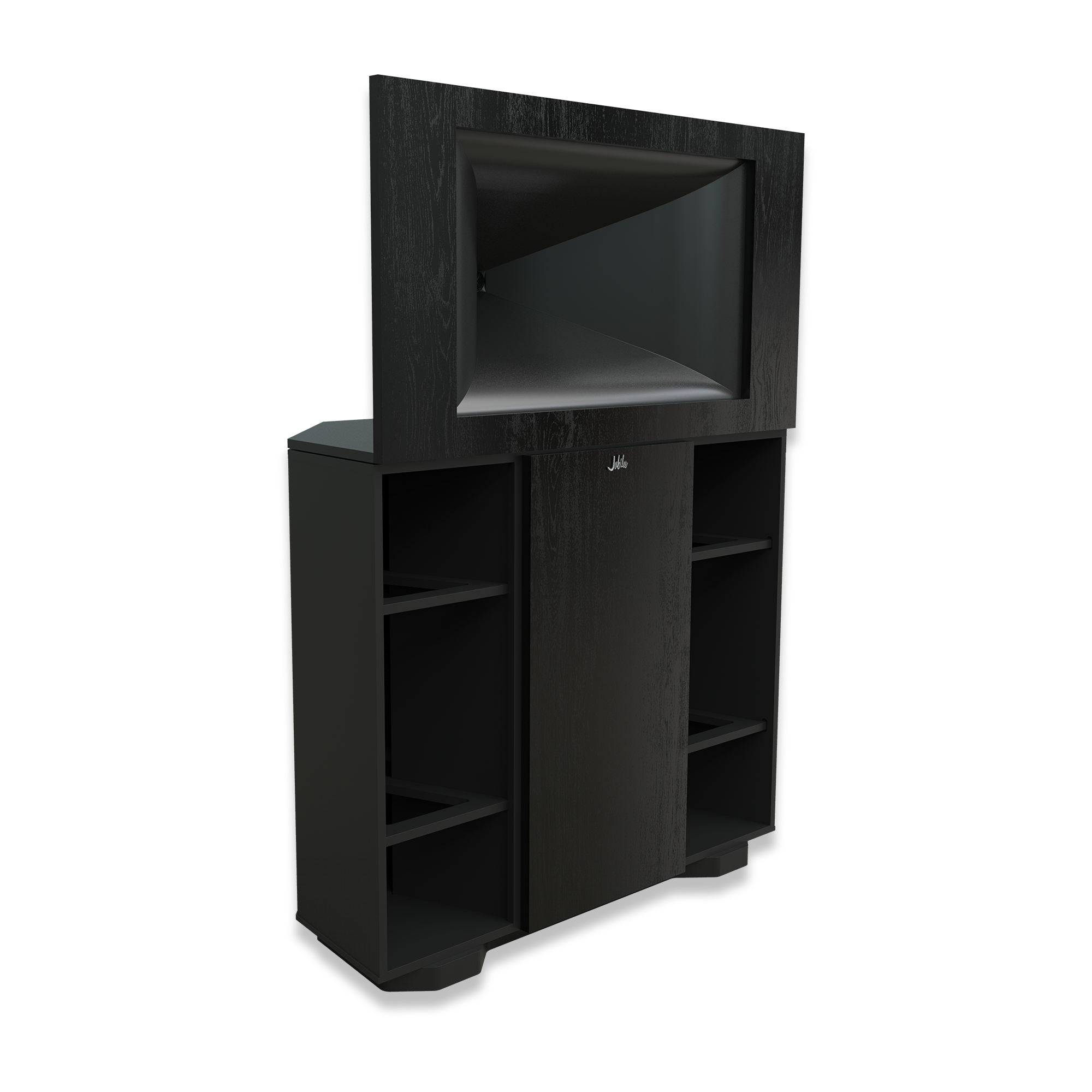

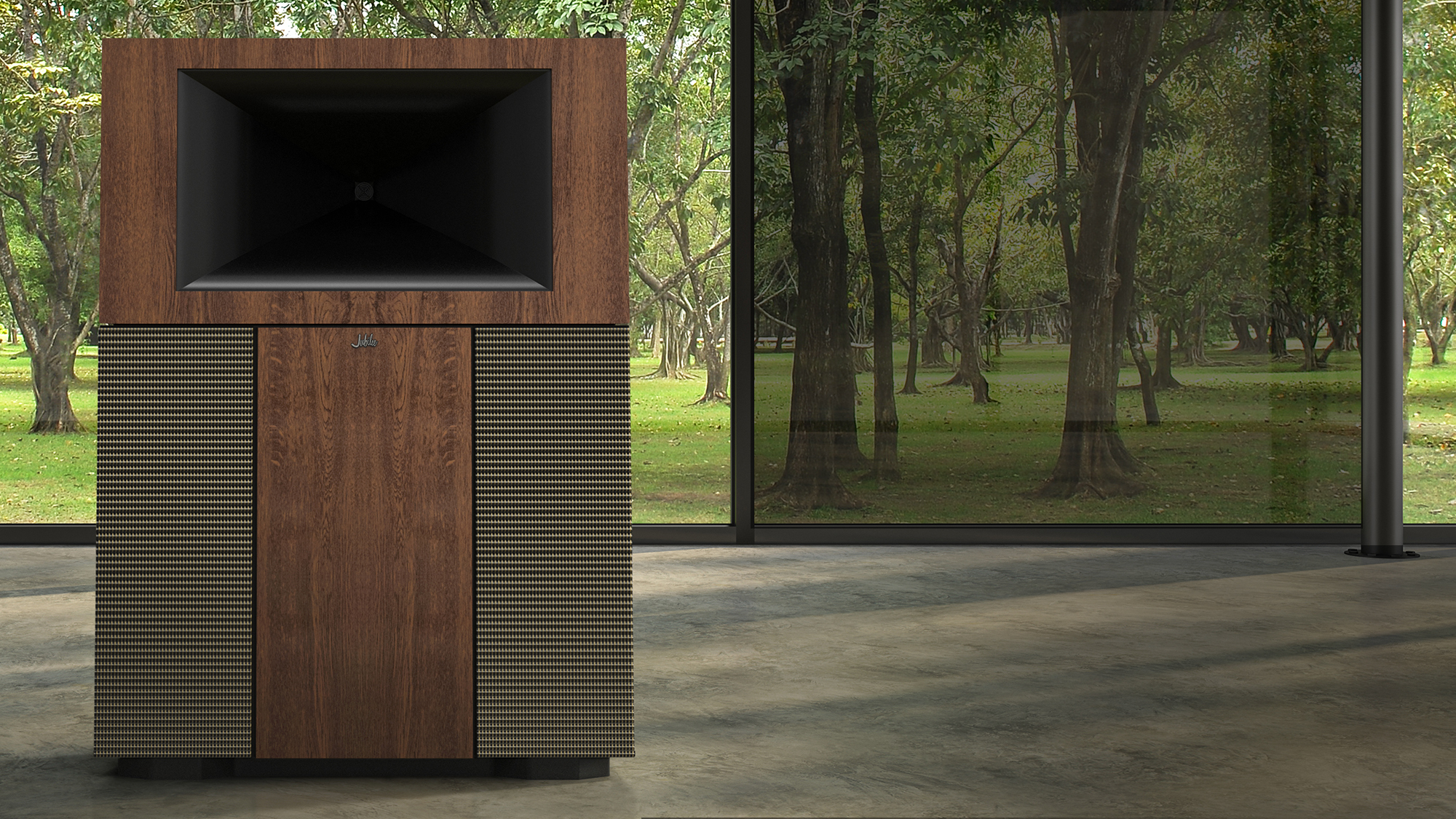

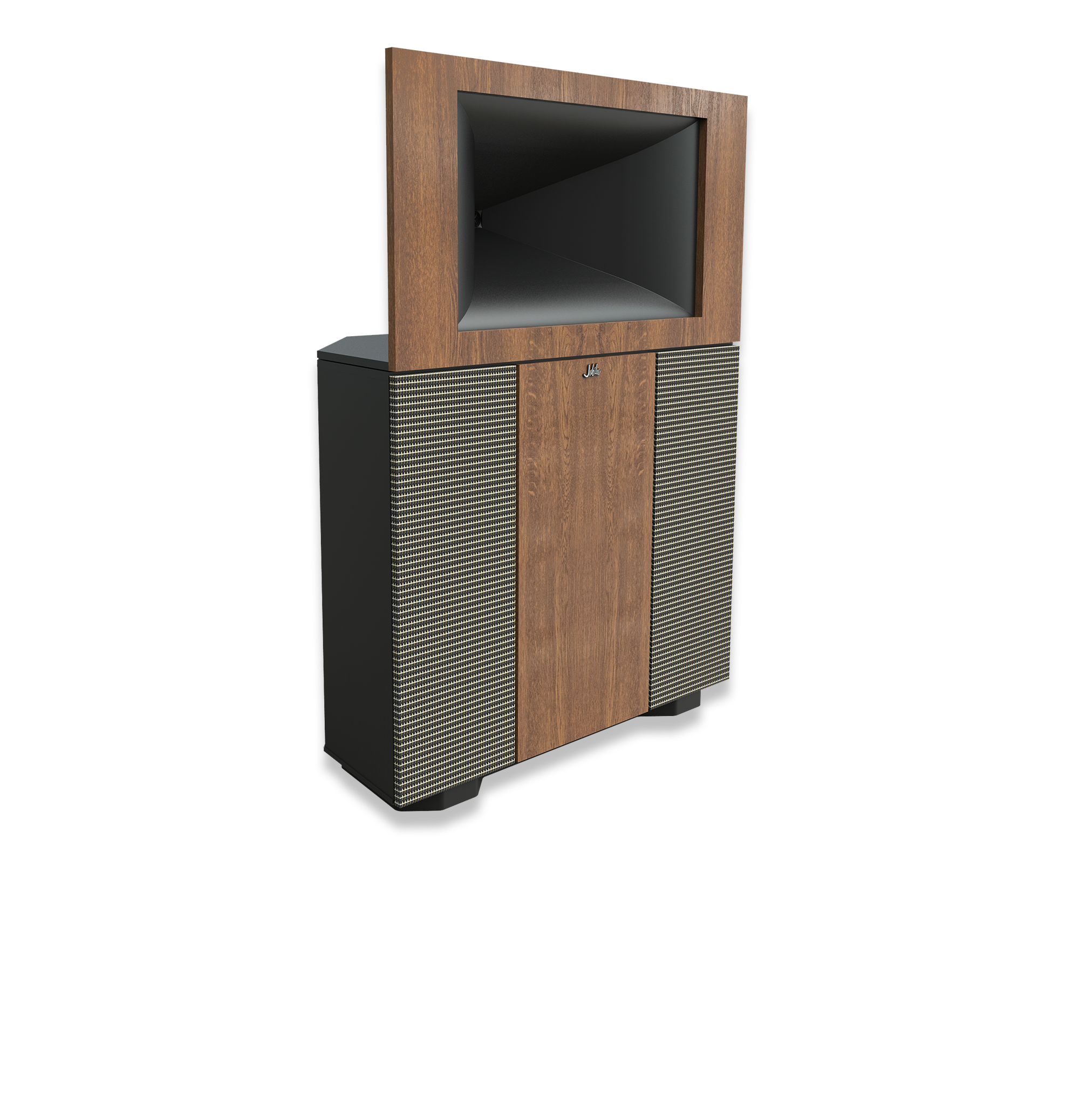

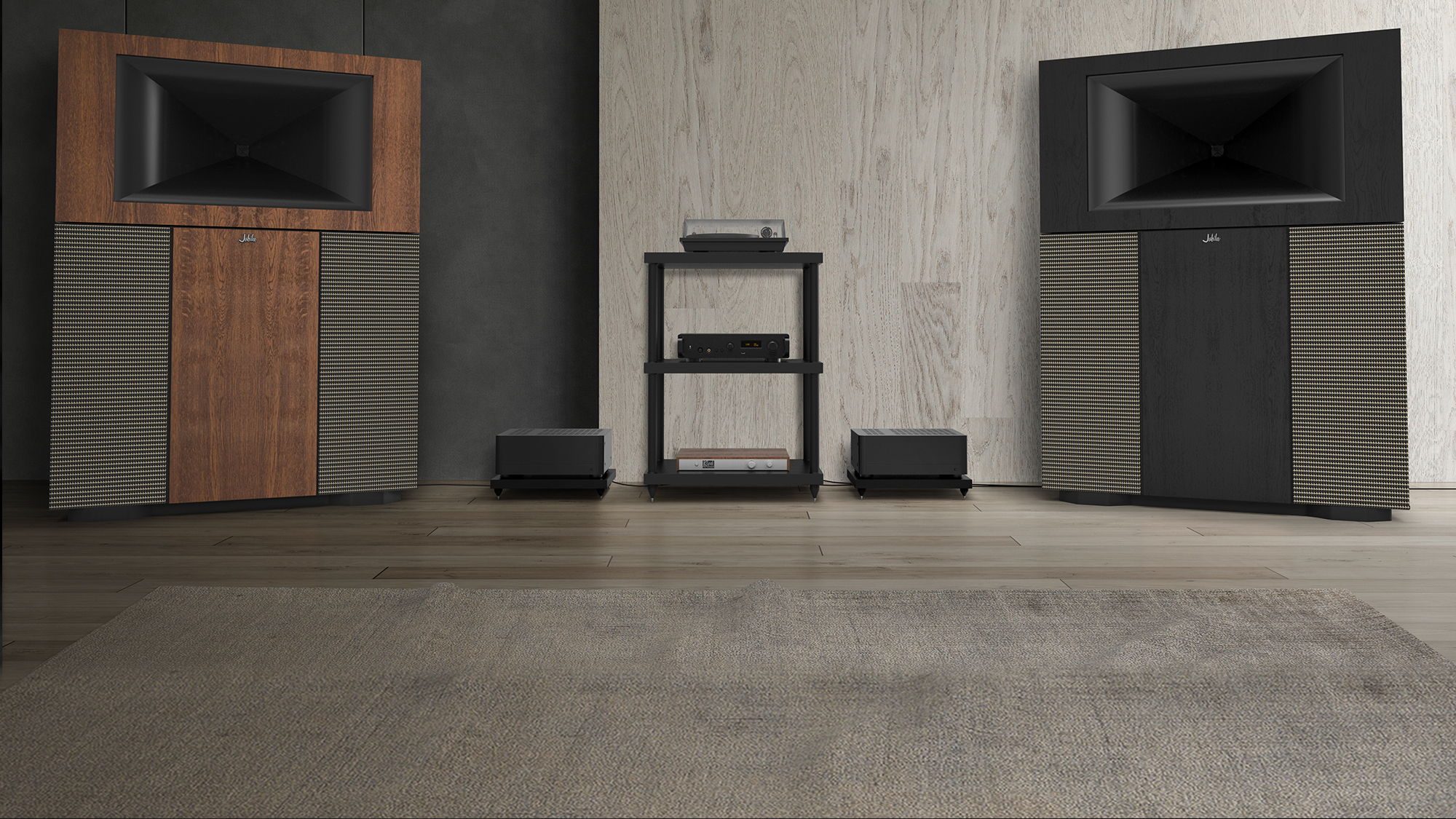

Beautifully crafted, these legendary speakers are available in book-matched real wood veneer in American Walnut or Black Ash.
AMERICAN INGENUITY
The Klipsch Heritage Series is proudly designed and assembled in Hope, Arkansas, right where Paul W. Klipsch started it all back in 1946. Each speaker is built to order, meaning that every Heritage speaker is uniquely yours. You will want to pass these speakers onto future generations.

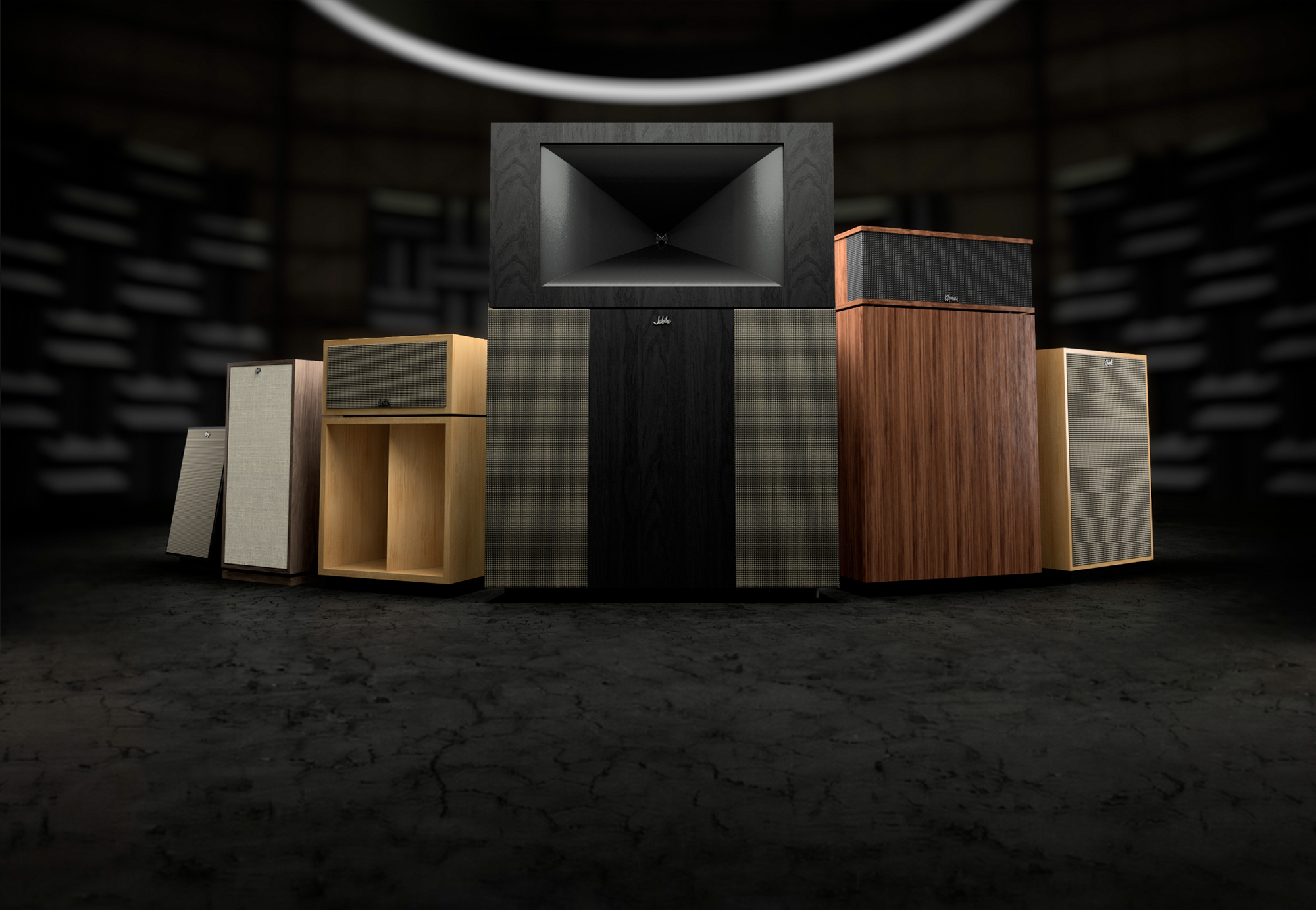

A NEW FLAGSHIP
You wanted the best, you got the best. The Klipsch Jubilee is taking its place as the new Heritage series flagship speaker.
Because Klipsch Heritage speakers are built to last, we stand behind a 10 year warranty on all current and future generations of Heritage Classic Speakers.
| Specifications | |
|---|---|
| FREQUENCY RESPONSE (+1.75 dB/- 3 dB) | 18Hz – 20kHz |
| SENSITIVITY | Avg. Sensitivity of HF - 110dB, Avg. Sensitivity of LF - 107dB |
| POWER HANDLING (CONT/PEAK) | LF - 300W / 1200W, HF - 100W / 400W |
| MAXIMUM SPL | 125 dB/1m (Using DSP) |
| ENCLOSURE MATERIAL | MDF |
| WIDTH | 50.25” (127 cm) |
| WEIGHT | LF - 330 lbs (149.68 kg), HF - 78 lbs (35.38 kg) |
| DEPTH | 30.25” (76.2 cm) |
| GRILLE | Salt and Pepper Cloth |
| FINISH | Black Ash, American Walnut |
| NOMINAL IMPEDANCE | LF - 8 ohms, minimum 3.5 ohms at 160Hz, HF - 16 ohms, miminum 7.6 ohms at 4.3kHz |
| CROSSOVER FREQUENCY | 340 Hz |
| HIGH FREQUENCY DRIVER | K-693 7” Titanium Diaphragm, Compression Driver with 5” Voice Coil |
| LOW FREQUENCY DRIVER | Dual K-283 12” Fiber-Composite, cone woofers |
| HEIGHT | 69.5” (175.26 cm) |
| INPUTS | 5 way binding post |
