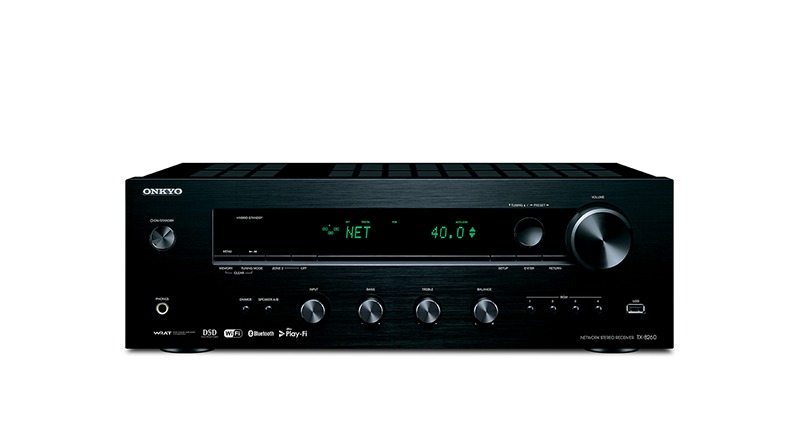

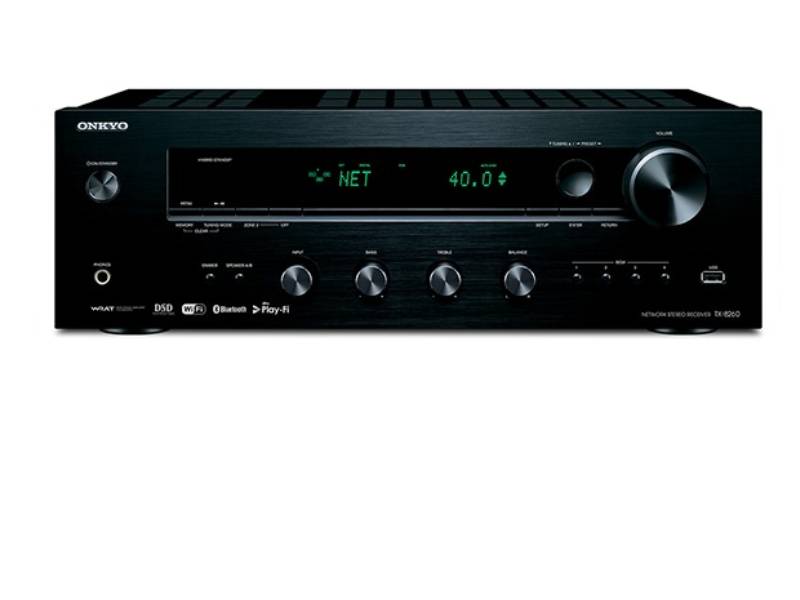

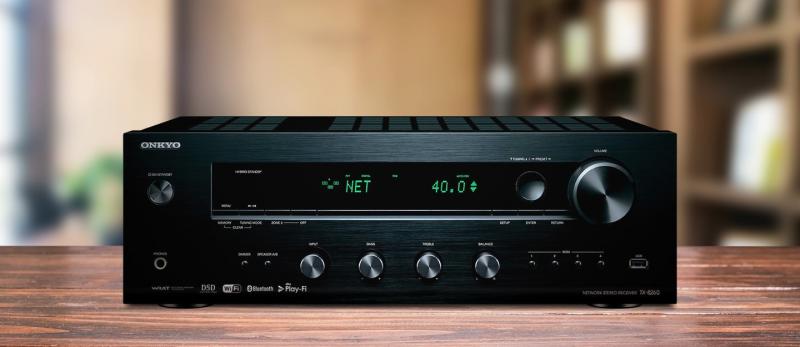

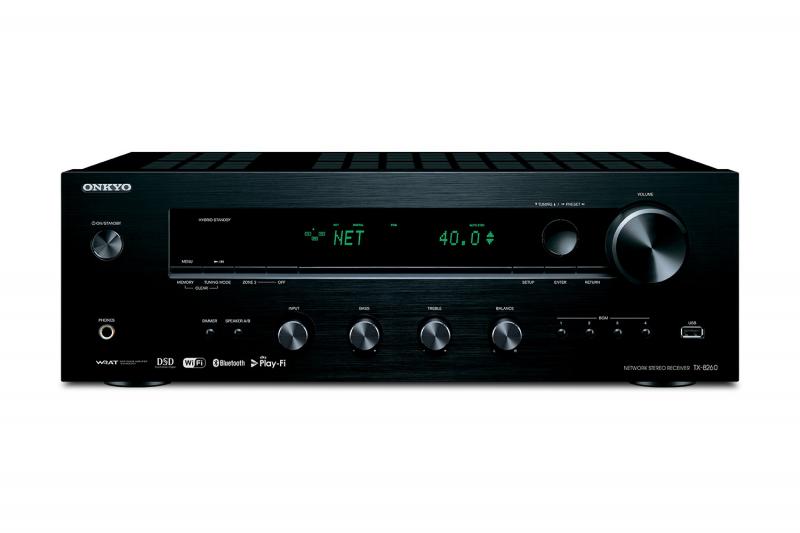

Classic stereo amplification is rejuvenated with network functions that simplify audio streaming from personal devices, while adding convenient ways to cast music around the home. The TX-8260 has Chromecast built-in, FireConnect™, and DTS Play-Fi* multi-room technologies over 5 GHz/2.4 GHz Wi-Fi for stable connection. You can play from Spotify, TIDAL, Pandora, TuneIn, and Deezer services, cast from iTunes and other apps with AirPlay, or stream with Bluetooth technology.
- Works with Sonos
- Music Made Easy with Chromecast built-in
- Ready for DTS Play-Fi multi-room audio
- Onkyo Controller app for easy multi-room management

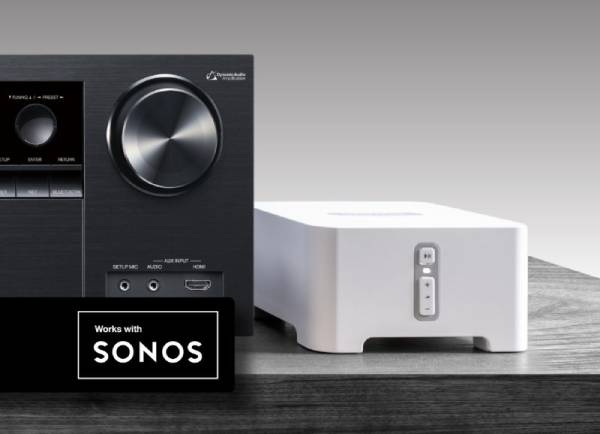

Works with Sonos
This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Connect*. The AVR ties into the Sonos ecosystem, waking, changing inputs, and playing at the desired volume on command from the Sonos app*.
Music Made Easy with Chromecast built-in
Stream any music from your smartphone, laptop, or PC to your Onkyo receiver with ease. Control playback with Chromecast enabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac or Window laptop, or Chromebook™.
Ready for DTS Play-Fi multi-room audio
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
Onkyo Controller app for easy multi-room management
Onkyo Controller app collects streaming services and network-attached audio into one intuitive interface. Control playback, navigate internet services, and distribute audio all over the home with ease.
Smooth and easy Bluetooth streaming
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
| Amplifier | |
|---|---|
| Power Watts/Ch (6 Ohms 1kHz, 2 Channel Driven, FTC) | 160, 10% THD |
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 80, 0.1% THD |
| Dynamic Power | 180 W (3 Ohms, Front) 160 W (4 Ohms, Front) 100 W (8 Ohms, Front) |
| WRAT (Wide Range Amplifier Technology) | ✓ |
| H.C.P.S. (High Current Power Supply) | ✓ |
| Non-Phase-Shift Amp Design | ✓ (for Realistic Sound Imaging) |
| 6 Ohm Capable | ✓ |
| 4 Ohm Capable | ✓ |
| Direct/Pure Mode | ✓/- |
| 384K/32 Bit DACs | ✓ (Asahi Kasei AK4452VN) |
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 80, 0.1% THD |
| Power Watts/Ch (6 Ohms 1kHz, 2 Channel Driven) | 160, 10% THD |
| Dynamic Power | 180 W (3 Ohms, Front) 160 W (4 Ohms, Front) 100 W (8 Ohms, Front) |
| THD + Noise | 0.1 % (20hz-20kHz, Half power) |
| Frequency Response | 10 Hz-100 kHz (+ 1 dB, -3 dB) (Direct Mode) |
| S/N Ratio | 106 dB (IHF-A, Line In, Speaker Out) 80 dB ( IHF-A, Phono In, Speaker Out) |
| Phono Overload (1 kHz) | 70 mV (MM, 1 kHz, 0.5%) |
| Certifications | |

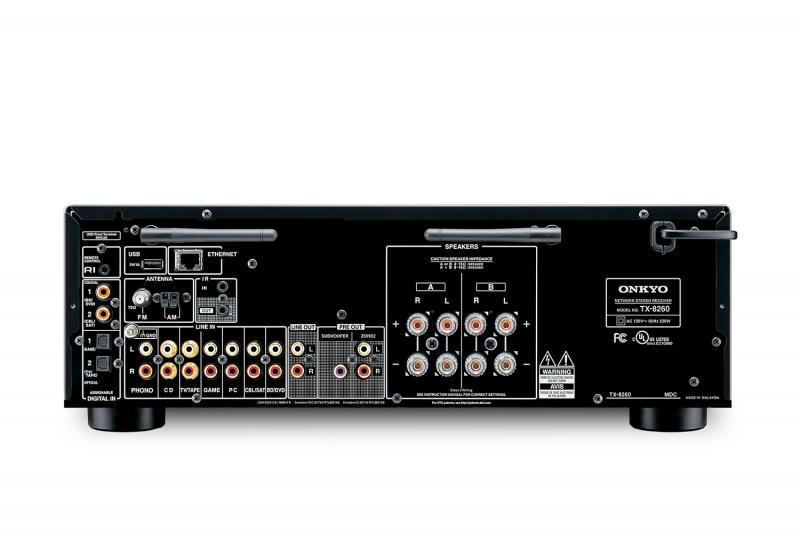

| Audio Input/Output | 6/1 (Gold Plated) |
| MM Phono Input | ✓ |
| Digital Audio IN (Opt/Coax) | 2/2 |
| Zone 2 Line Out | ✓ |
| Zone 2 Digital to Analog Audio Conversion | ✓ |
| Speaker A/+B | ✓ |
| Subwoofer Pre-out | ✓ |
| Headphone Jack | ✓ |
| Network / USB | |
| Internet Radio Capable | ✓ (TuneIn Radio, Tidal, Pandora, Spotify, and Deezer) |
| Spotify Connect Support | ✓ |
| Streaming Audio From PC / Network | ✓ |
| Hi-Res Streaming Audio Formats | ✓ (ALAC, DSD 2.8/5.6 MHz, AAC, MP3, FLAC 192/24 PCM, AIFF, WAV, WMA Lossless) |
| Supports Onkyo Controller App | ✓ |
| Wireless Network | ✓ (Dual-band Wi-Fi) |
| USB Input | ✓ (Front) |
| Chromecast built-in and Works with Google Assistant | ✓ |
| DTS Play-Fi | ✓ (via Firmware Update) |
| AirPlay | ✓ |
| Firmware Updates via Network/USB | ✓/✓ |
| MISCELLANEOUS | |
| Quick Access BGM Presets | ✓ (x4) |
| Number of AM/FM Presets | 40 |
| Preset Station Naming | ✓ |
| Direct Access Tuning | ✓ |
| Automatic/Manual Tuning | ✓ |
| Sleep Timer | ✓ |
| IR Input | ✓ |
| IR Output | ✓ |
| RI-Compatible Remote Control | ✓ |
| Warranty | 2 YEARS |
| TUNER | |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 Stations (Plus 4 Faceplate BGM Presets) |
| General | |
| Power Supply | AC 120 V˜, 60 Hz |
| Power Consumption | 230 W |
| Standby Power Consumption | 0.1 W |
| No-Sound Power Consumption | 70 W |
| Network Standby Power Consumption | 2.9 W |
| Dimensions (W x H x D) | 17 1/8" x 5 7/8" x 12 15/16" (435 x 149 x 329 mm) |
| Weight | 18.3 lbs. (8.3 kg) |
