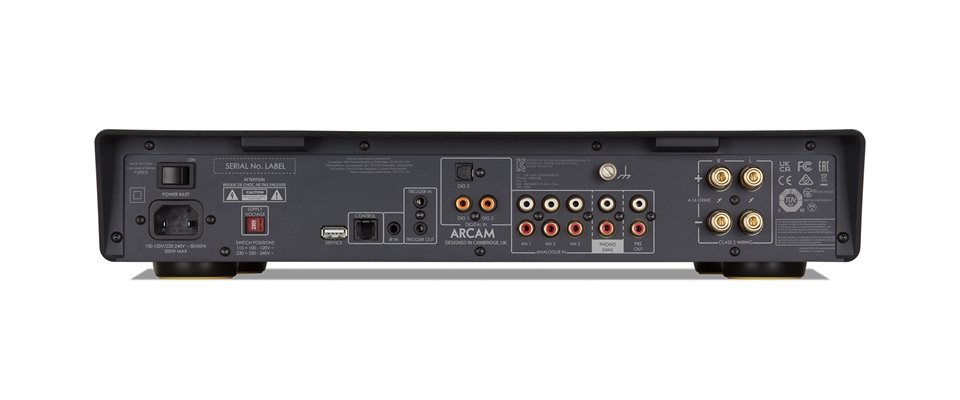

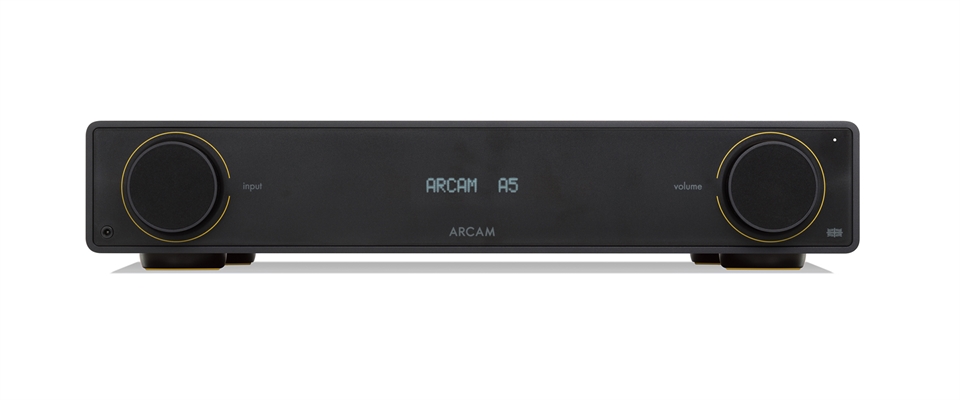

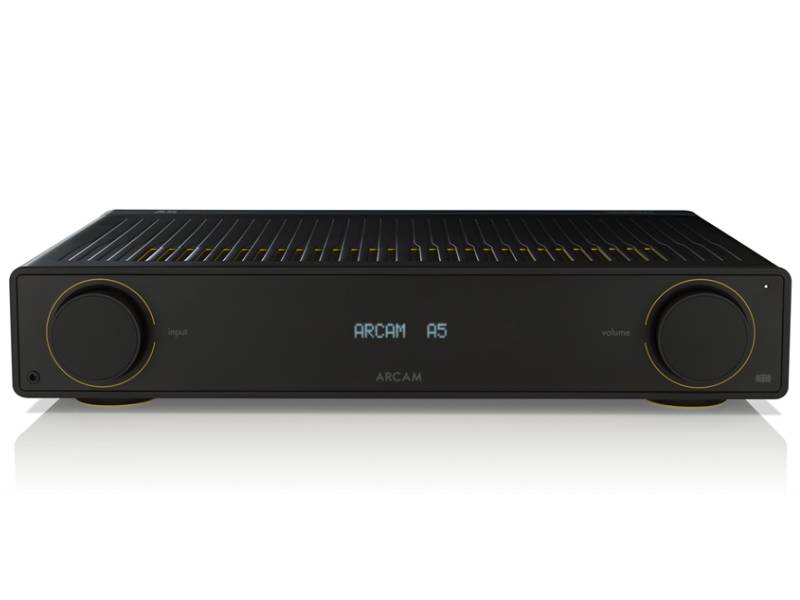

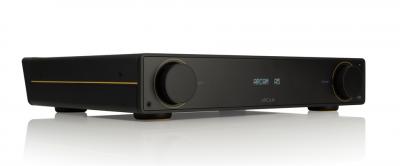

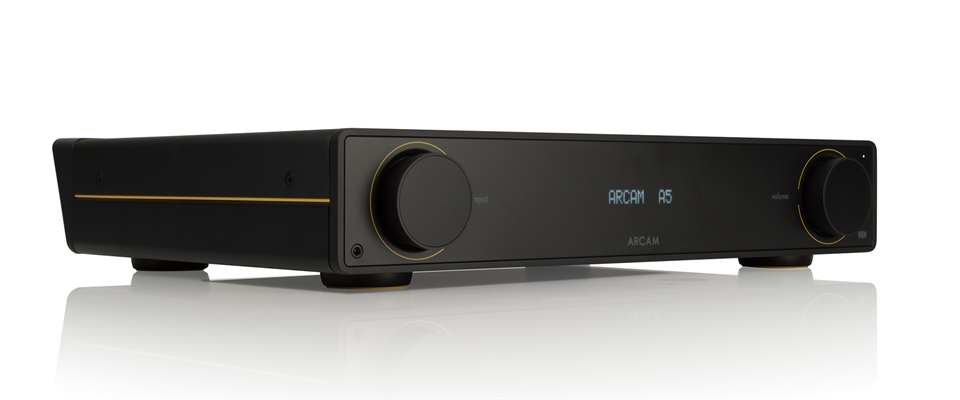

Arcam Radia Bluetooth Integrated Amplifier - A5
You may also like
The ARCAM A5 is for those intimate listening experiences with your favourite music.
The "A" in ARCAM stands for Amplification - this is our core competance. The A5 is the latest in more than 45 years of amplifier design and manufacture, going back to our first product in 1976 - the A&R Cambridge A60 amplifier. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.
So you can play music straight out of the box, the ARCAM A5 includes a Bluetooth solution with Qualcomm AptX Adaptive technology. This provides up to 24-bit HD audio for the best sound quality from your phone or tablet, no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.
Hi-res audio is included with high resolution digital audio inputs included.
Like any ARCAM integrated amplifier, we pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.
- ARCAM Class AB amplification - provides brilliant musicality
- 50W per channel (8Ω) - powers loudspeakers with ease
- Bluetooth with aptX™Adaptive Technology - for the best sound with the most convenience
- Specially selected components and materials - to deliver on sound quality
- Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires
- All new Radia design - Purposeful yet playful
- MM phono stage - ready for Turntables
- Hi-Res Digital Audio Inputs
- Plastic Free Packaging - for easy disposal of natural materials
Specifications | |
---|---|
Continuous power output (0.5% THD), per channel |
2 channels driven, 20Hz - 20kHz, 8Ω 50W 2 channels driven, 1kHz, 4Ω 75W Harmonic distortion, 80% power, 8Ω at 1kHz 0.003% |
Analogue Inputs |
Number of inputs 3 (RCA pairs) Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB Frequency response 20Hz—20kHz ± 0.2dB |
Phono (MM) Input |
Input impedance 47kΩ + 100pF Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB |
Digital Inputs |
Supported Sample Rates (kHz) Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1 |
Bit depths (bit) 24, 16 |
Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB |
Headphone Output |
Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V Load range 16Ω - 2kΩ |
General |
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz Power consumption (maximum) 350W Power consumption (standby) <0.5W Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm Weight (net) 8kg Weight (packed) 11kg |
Supplied accessories |
Mains lead(s) Remote control with 2 x AAA batteries Quick Start Guide Important Safety Instructions |
