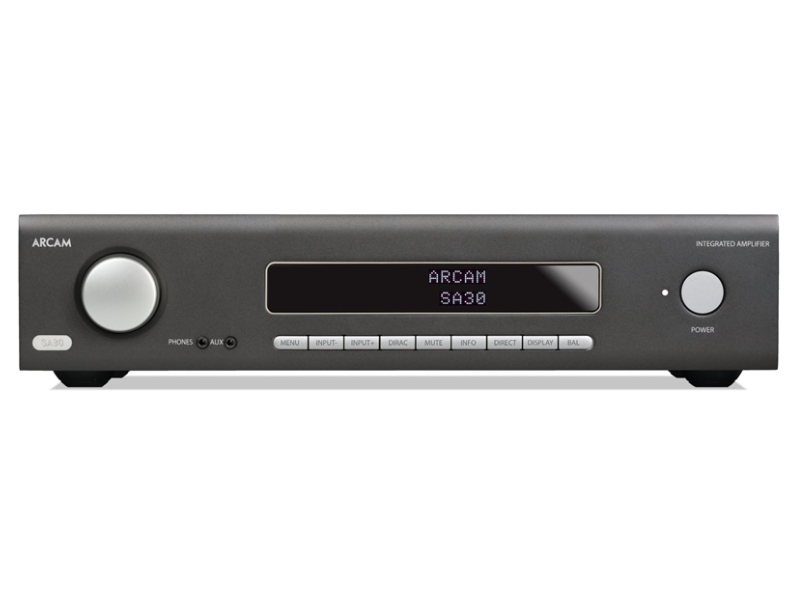

Arcam Class G Intelligent Integrated Amplifier With 4 Digital Inputs - SA30
![](/img/brandlogo/146_a_175_acram-logo-png.png)
Literature
You may also like
The SA30 is designed with all the latest cutting-edge features - Class G is expertly implemented and, the highest resolution of audio support is presented. Simple streaming is available with a mobile device using the native app of choice via Apple AirPlay2 or Google Chromecast.
PRODUCT DETAILS
- Class G amplification for impeccable sound and efficiency
- 120W of power per channel into 8Ω, 220W into 4Ω
- 5 analogue inputs including switchable MM/MC PHONO input
- 4 digital inputs
- 1 ARC input
- Google Cast, AirPlay 2, uPnP Streamer
- Gapless playback
- Roon endpoint
- MQA supported - The SA30 features a full MQA decoder, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording in the highest possible sound quality. At this level of playback you are hearing what was created in the studio – with precise file and platform-specific DAC compensation and management.
- 3 Dirac EQ profiles (input assignable)
- 32-bit DAC,Sabre ESS9038K2M
- Full I/P control including Control4 and Crestron
- Total harmonic distortion + noise = 0.002%
Specifications | |
---|---|
Frequency Response | 20Hz – 20kHz ± 1dB |
Nominal Sensitivity | 1V |
Input Impedance | 10kΩ |
Power output both channels driven | 120W into 8Ω, 220W into 4Ω |
Maximum Input | 6Vrms |
Signal/Noise ratio (A-wtd) 50W, ref. 1V input | 120dB |
Mains Voltage | 110-120V or 220-240V, 50-60Hz |
Maximum Power Consumption | 800W |
Dimensions W x H x D (including feet, control knob and speaker terminals) | 433x100x323mm |
Weight | 12kg |
Packaged Weight | 14kg |
