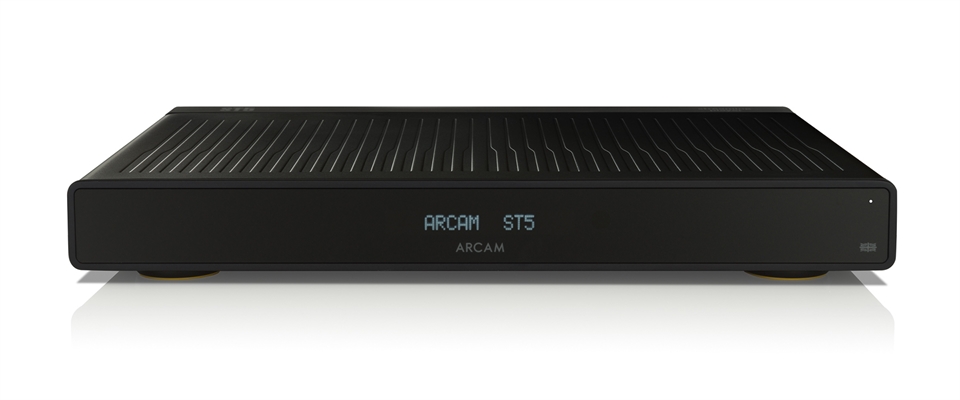

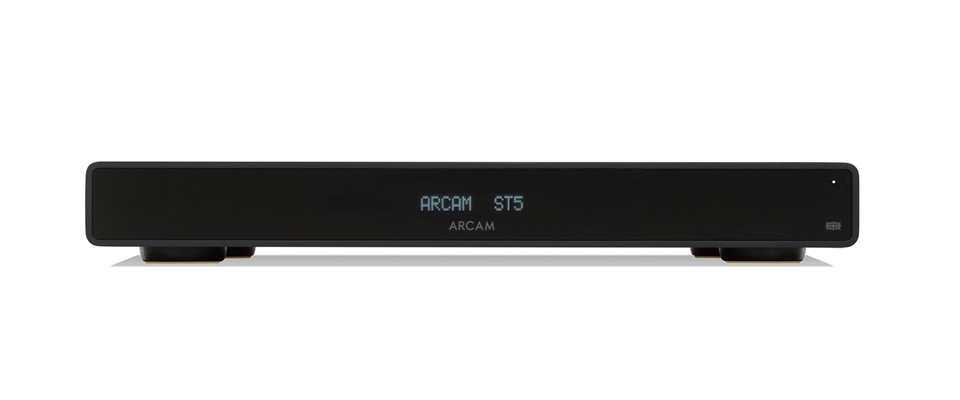

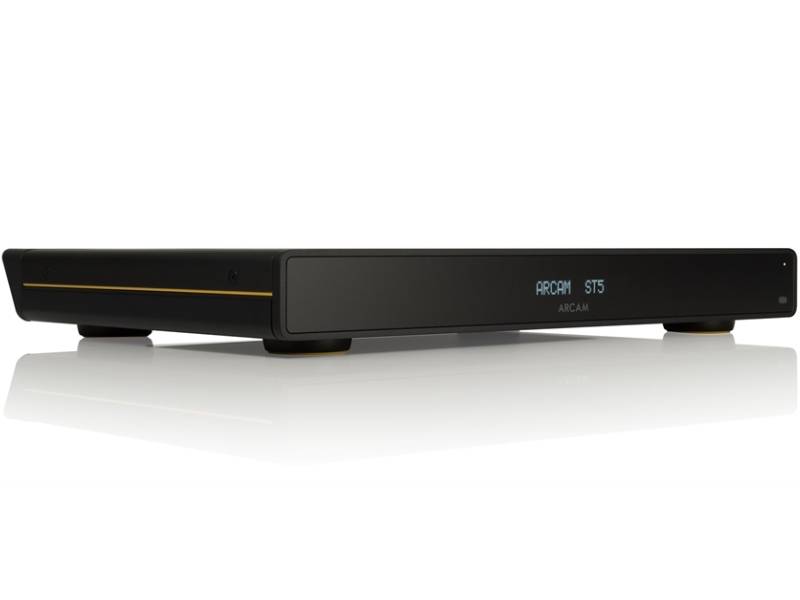

The ARCAM ST5 is the high resolution upgrade for our Radia integrated amplifiers. The slim form factor includes a control link to these amplifiers, allowing the 2 components to act as one from your device. Sonically, this combination offers better sound quality due to the benefits of isolated components with individual power supplies.
The ARCAM ST5 provides an inclusive feature set supporting the majority of smart phones and tables, as well as popular streaming services. Connect the ST5 to your home network with Wi-Fi or Ethernet to enjoy instant playback using Apple Airplay2 or Google Chromecast.
The ST5 will playback music directly from Spotify Connect and Tidal Connect, and for power users, the ST5 is Roon Ready, all with Hi-res and MQA support. All digital audio is output on the analogue outputs using an ESS ES9018 high resolution DAC with time domain jitter elimination for perfect sound, every time.
- Perfect match to ARCAM A5 and A15 - with comms link for 2 components to work together
- Works with Spotify Connect and Tidal Connect - for direct connection from your preferred music service
- Works with new ARCAM app - for Wi-Fi setup and internet radio presets - includes Qobuz, Amazon Music and Podcasts
- Specially selected components and materials - to deliver on sound quality
- Supports Apple Airplay2 and Chromecast built-in - works with all Apple and Android phones and tablets
- Roon Ready
- Supports Hi-Res Audio - up to 24 bit / 192 kHz from digital and analogue outputs
- Plastic Free Packaging - for easy disposal of natural materials
| Specifications | |
|---|---|
| Type: | Streamer / Network Media Player |
| Supported Hi-res media: | FLAC, WAS (LPCM), MQA, AAC, ALAC, AIFF, DSD (128) |
| Supported Hi-res Bit depth: | 16, 24 |
| Supported samples rates (kHz): | 44.1, 48, 88.2, 96, 176.4, 192 |
| Supported media: | MP3, MP4, OGG, WMA |
| Supported Bit depth: | 16 |
| Supported samples rates (kHz): | 44.1, 48 |
| Gapless Playback: | Yes |

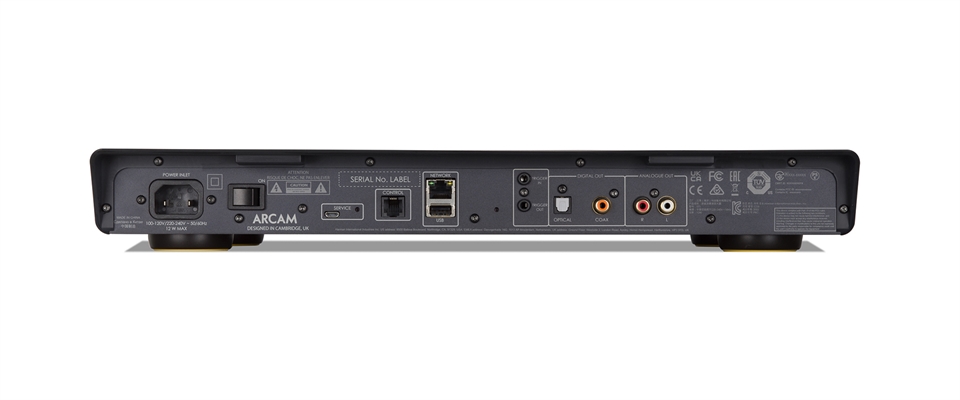

| Digital Outputs: | 1x Coaxial (RCA), 1x Optical (Toslink) |
| Analogue Outputs: | 1x Stereo (RCA) pair |
| Frequency response (fi lter 1): | 20Hz—20kHz ± 0.05dB Mains voltage 100V or 110–120V or 220–240V, 50–60Hz Power consumption 12W Power consumption (Eco standby) <0.5W |
| Dimensions W x D (including speaker terminals) x H (including feet) | 431 x 344 x 57mm |
| Weight (net) | 3.5 kg |
| Weight (packed) | 5.6 kg |
| Supplied accessories | Mains lead(s) Remote control with 2 x AAA batteries Control Cable Quick Start Guide Important Safety Instructions |
