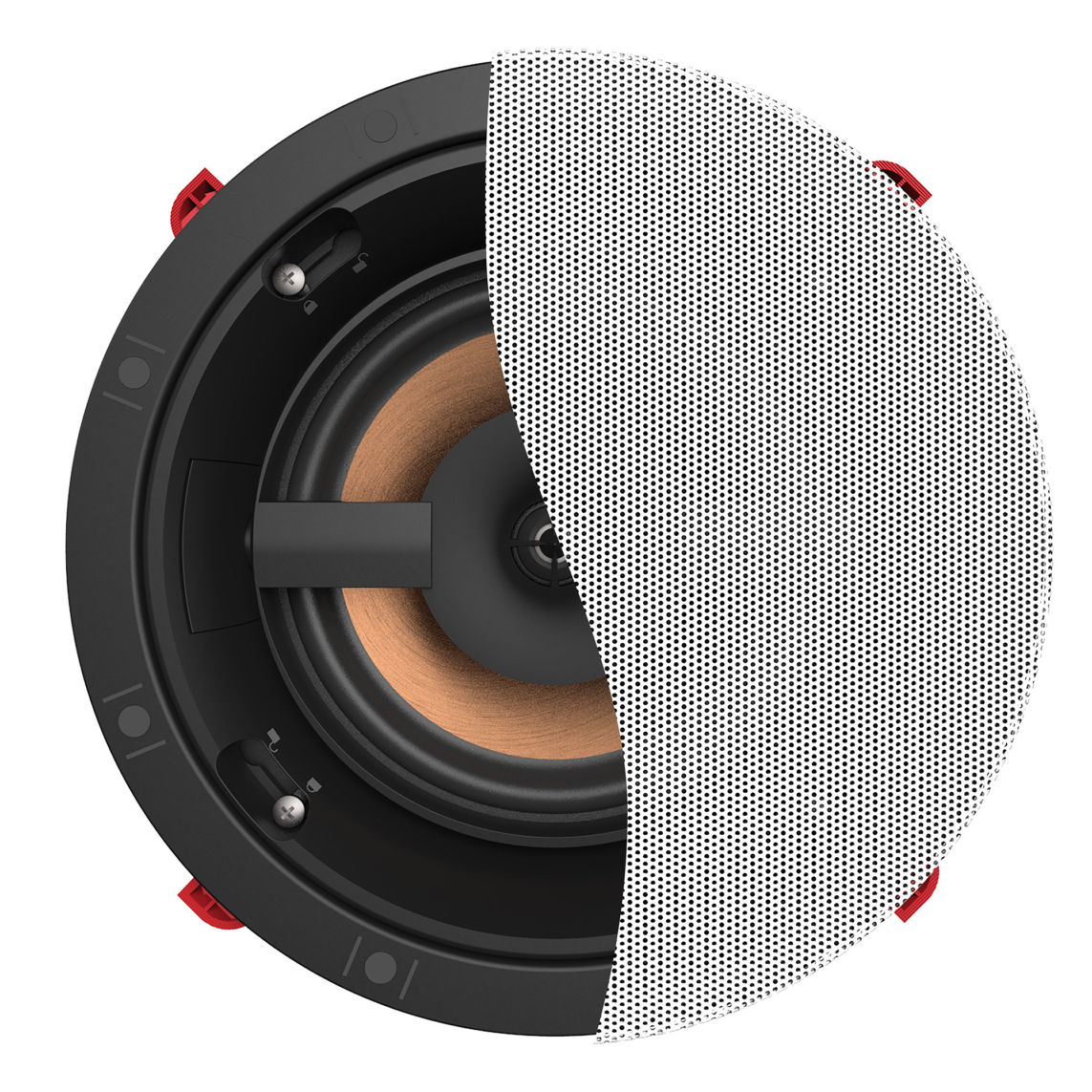

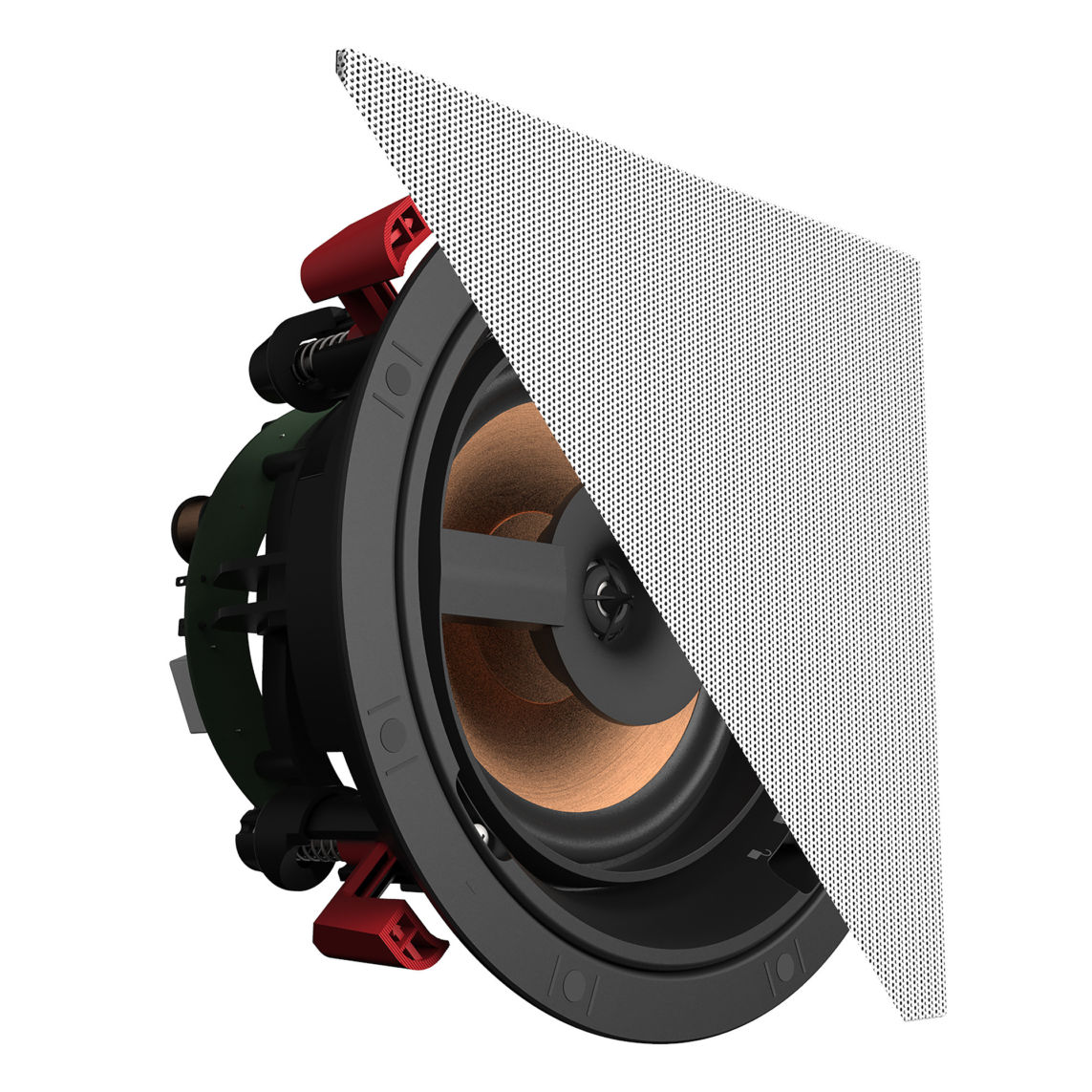

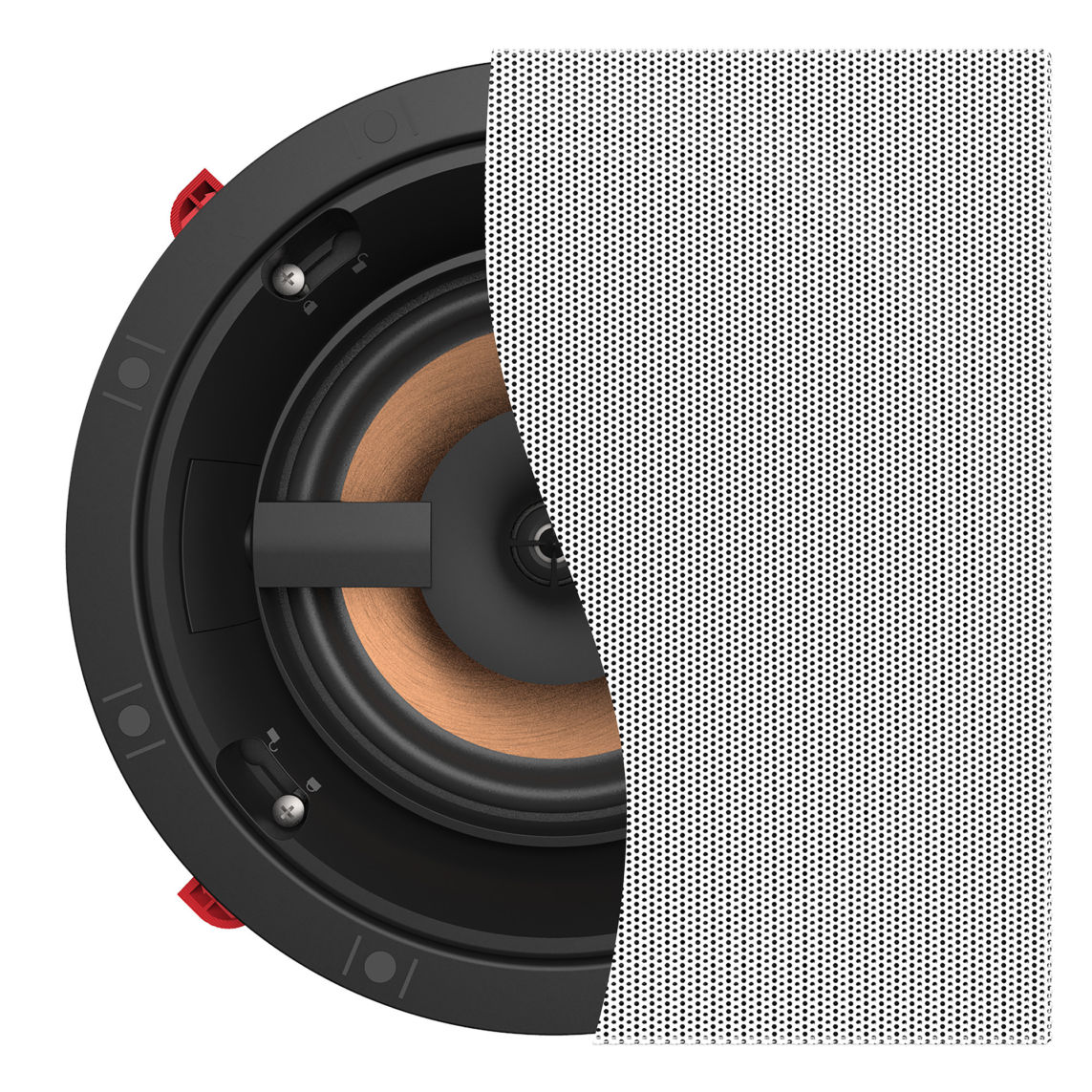

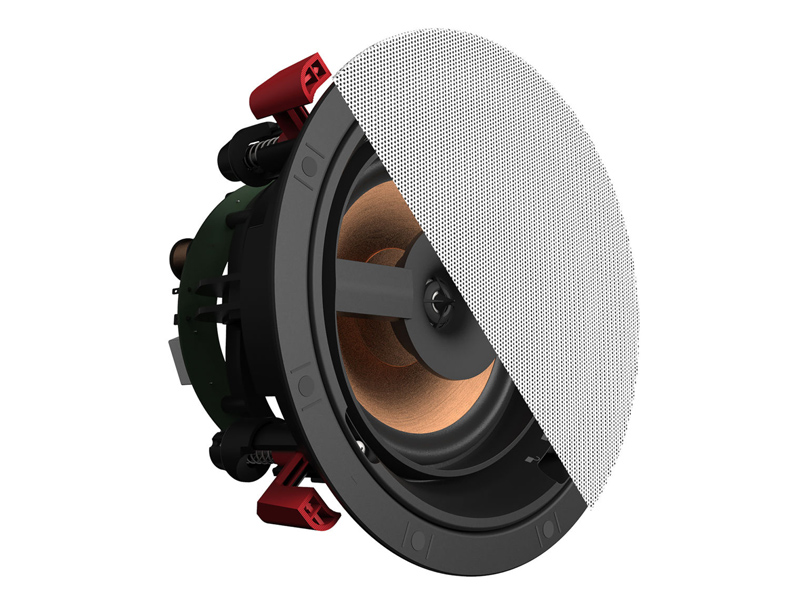

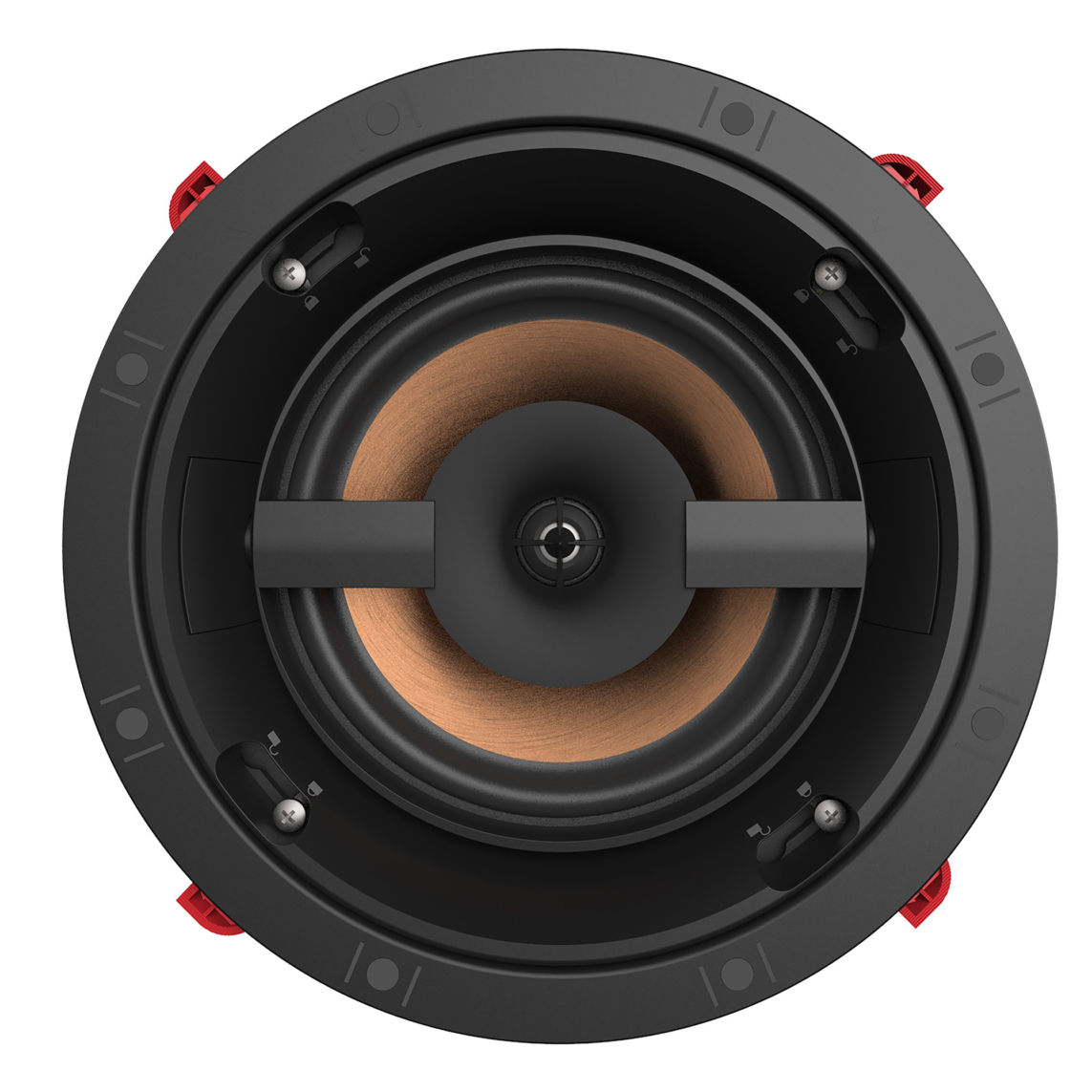

Featuring a 6.5” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-16RC brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.
Features:
- 6.5” Injection Molded Graphite (IMG) Woofer
- 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
- Exclusive, modular SecureFit™ Installation System
- Bezel-Free square and round paintable magnetic grilles
- Controlled Dispersion™ Technology
- Magnetic paint shield

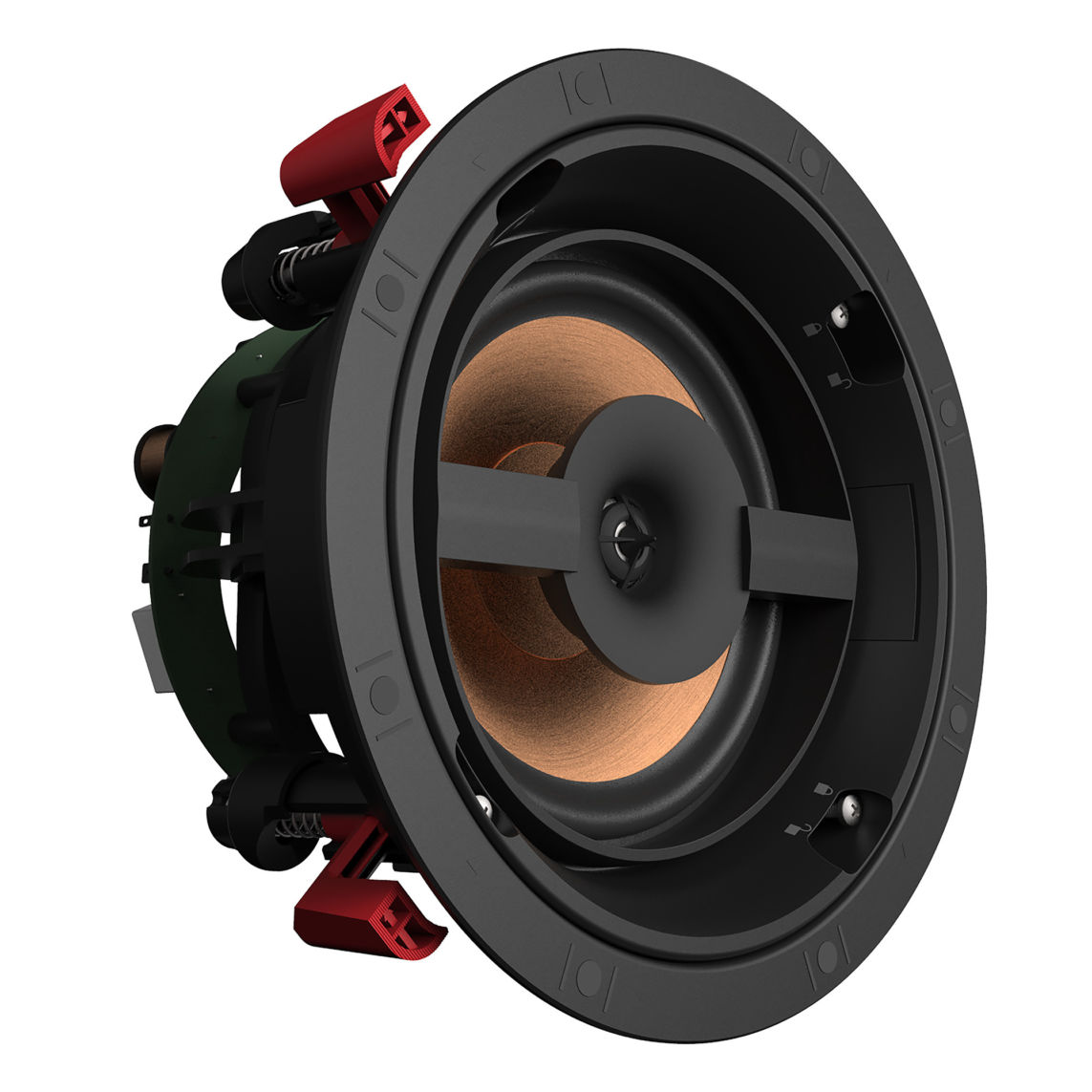

SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.
CONTROLLED DISPERSION™ TECHNOLOGY
Controlled Dispersion™ Technology allows for the tweeter and woofer to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.

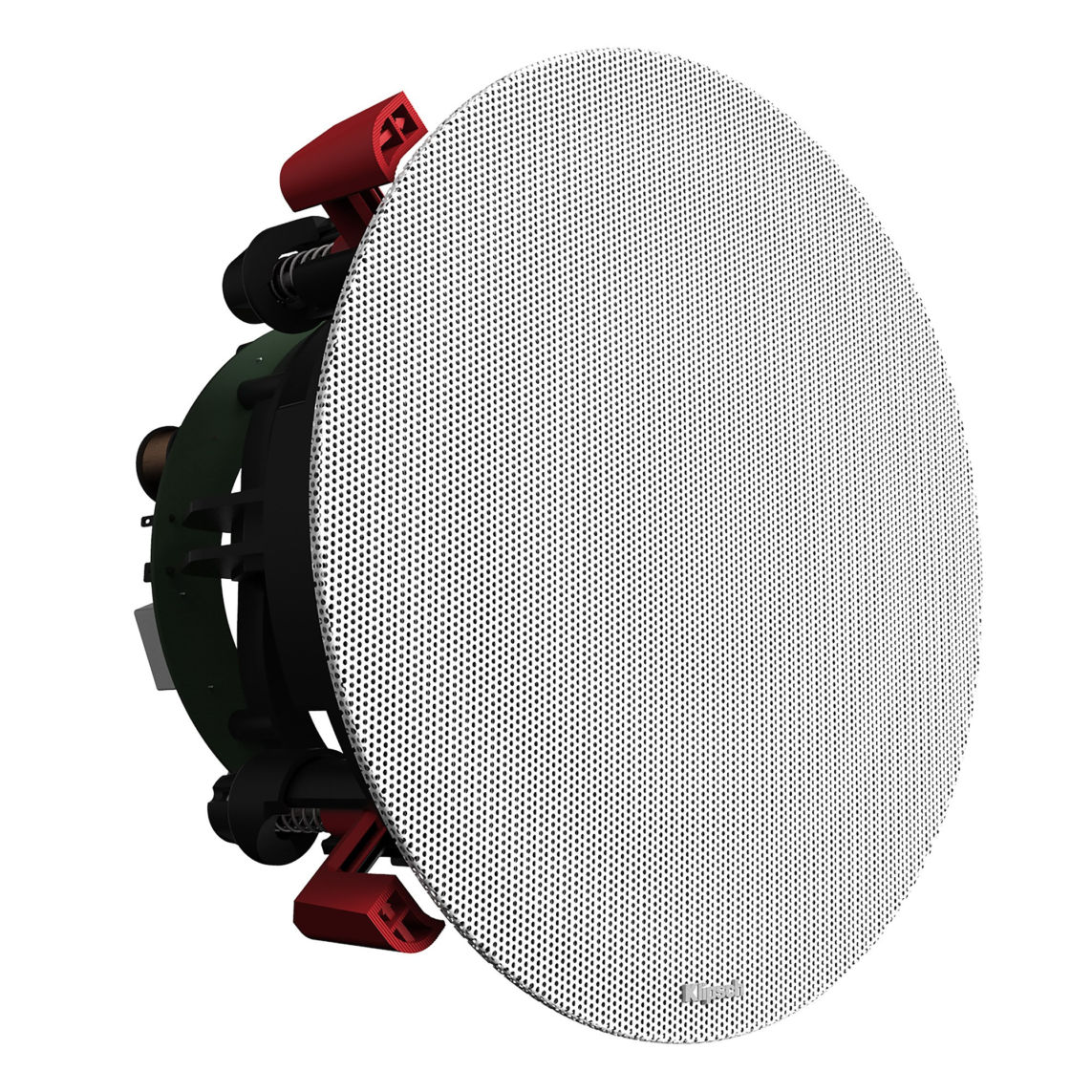

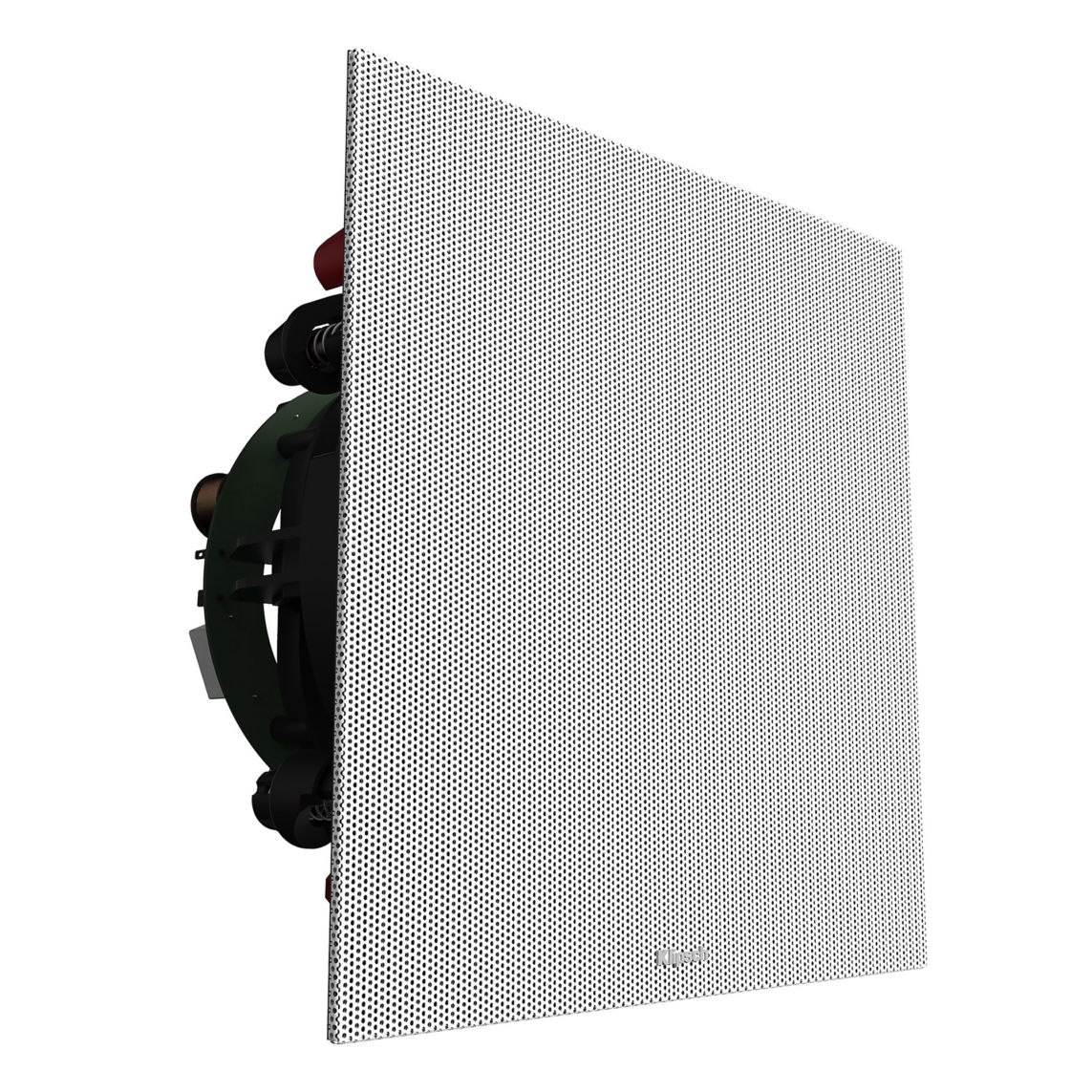

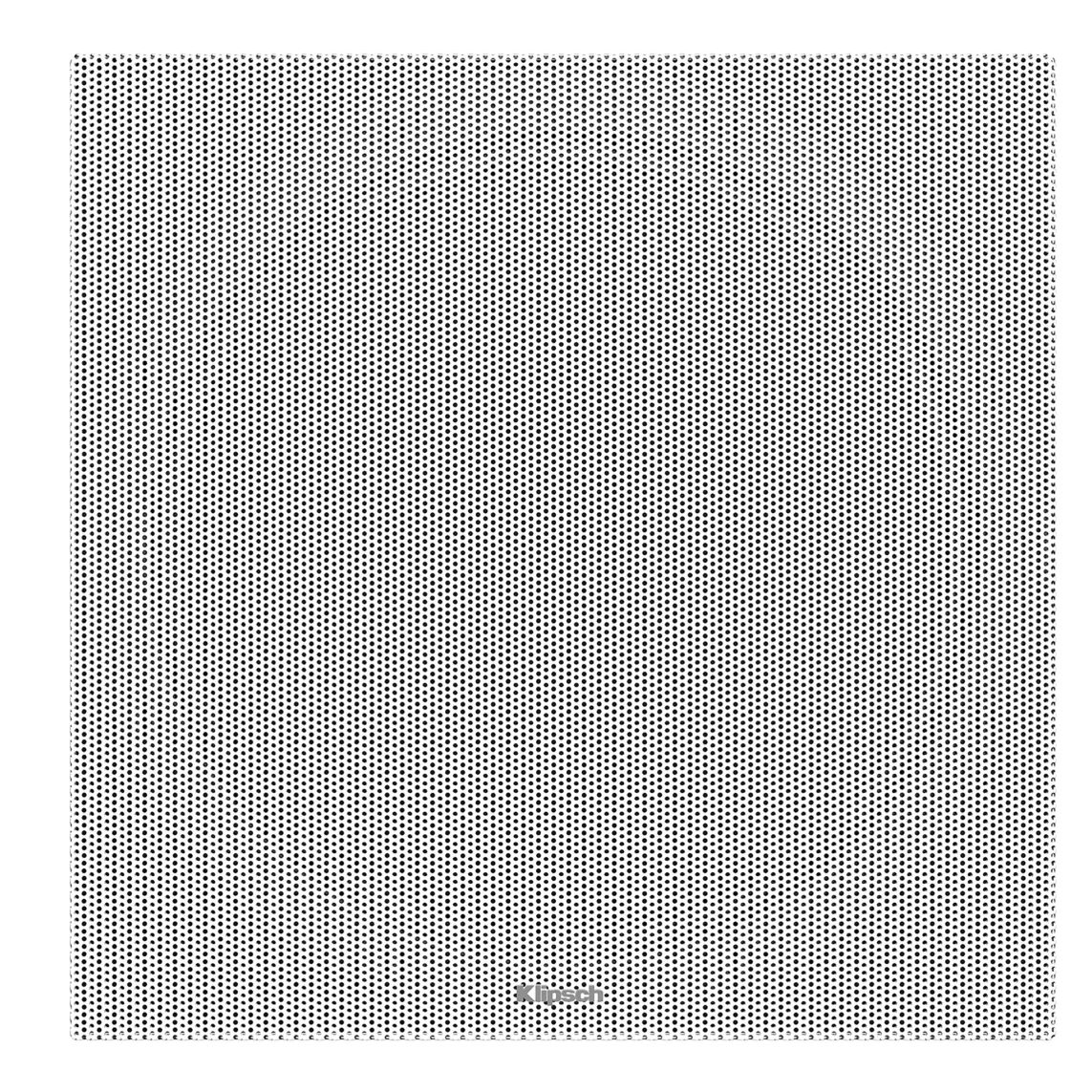

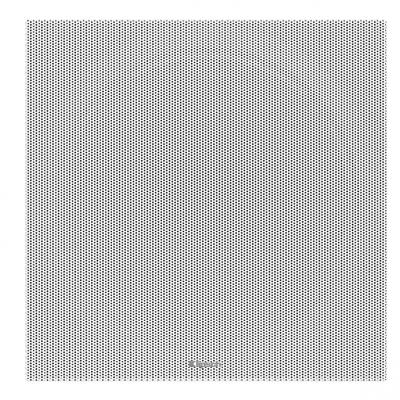

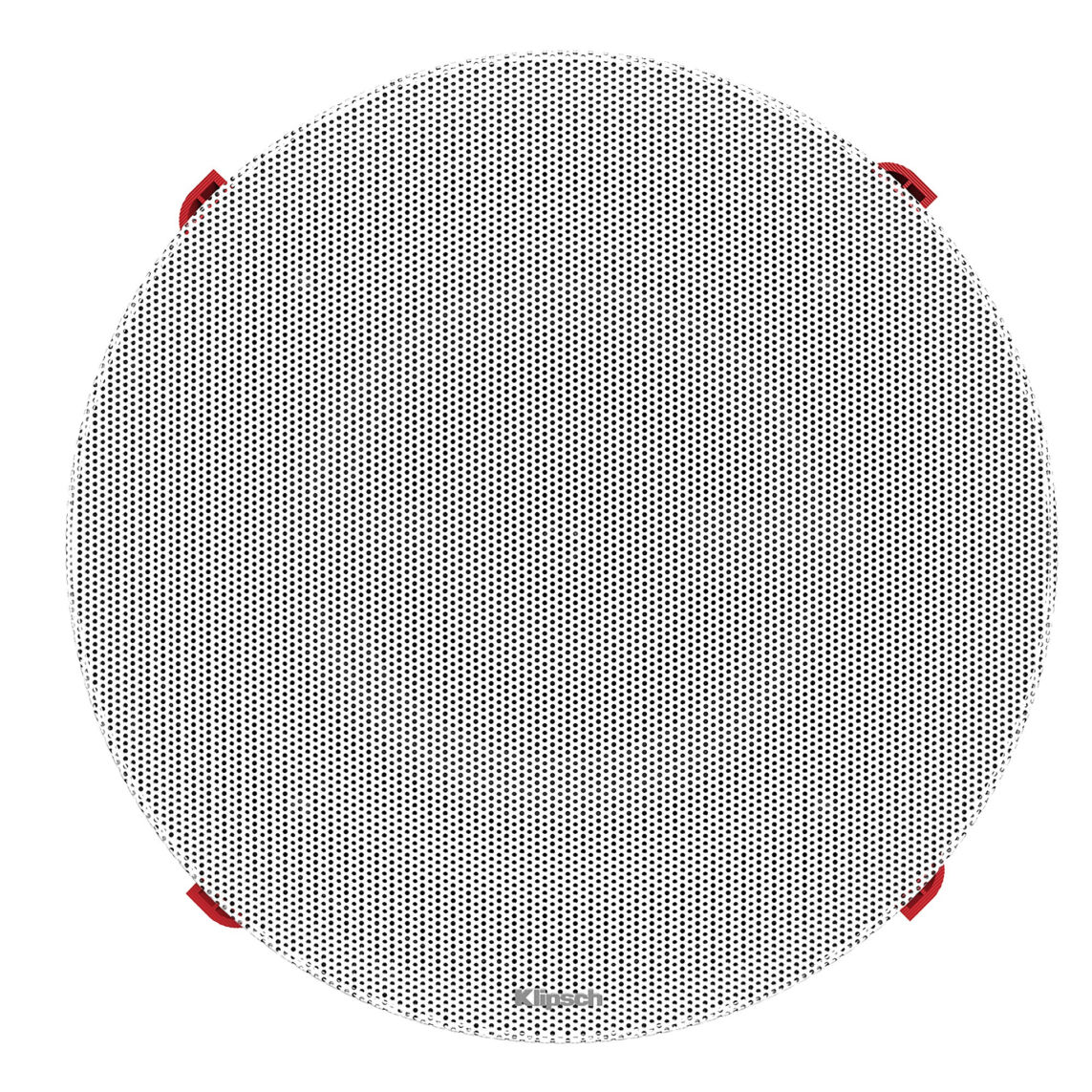

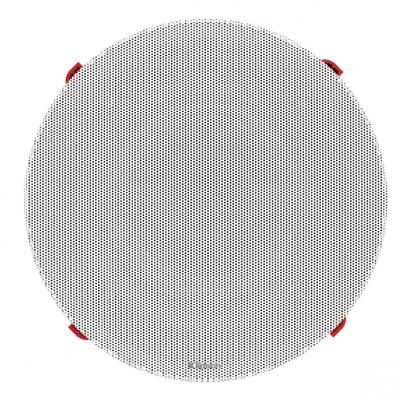

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
Specifications | |
---|---|
Power Handling | 50W RMS / 200W Peak |
Product Dimensions | 9.31" W x 9.31" H x 6.4" D ( 23.7cm W x 23.7cm H x 16.2cm D) |
Cutout Dimensions | Ø8.15 " (Ø20.7cm) |
Product Weight | 7 lbs (3.18kg) |
Sensitivity | 94 dB @ 2.83V / 1m |
Frequency Range | 63Hz - 23kHz +/- 3dB |
High Frequency Driver | 1" (2.54cm) Aluminum Dome Tweeter mated to a round Tractrix® Horn |
Low Frequency Driver | 6.5" (16.51cm) IMG Woofer |
Coverage Angle | 100° |
Impedance | 8 Ohm Compatible |
Enclosure Type | ABS/Infinite Baffle |
Finish | Black Baffle/Frame, White Paintable Grille |
Mounting Depth | 6.15" 15.6cm) |
Included | Round Grille, Square Grille, Paint Shield |
Installation Kit | IK-650-C II (Sold Separately) |
