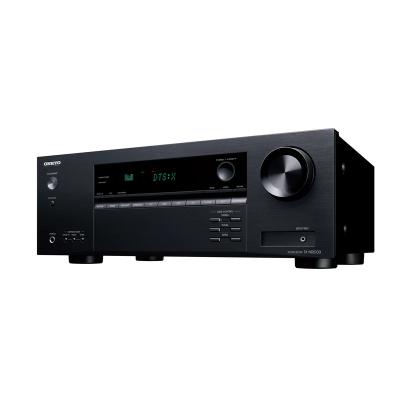

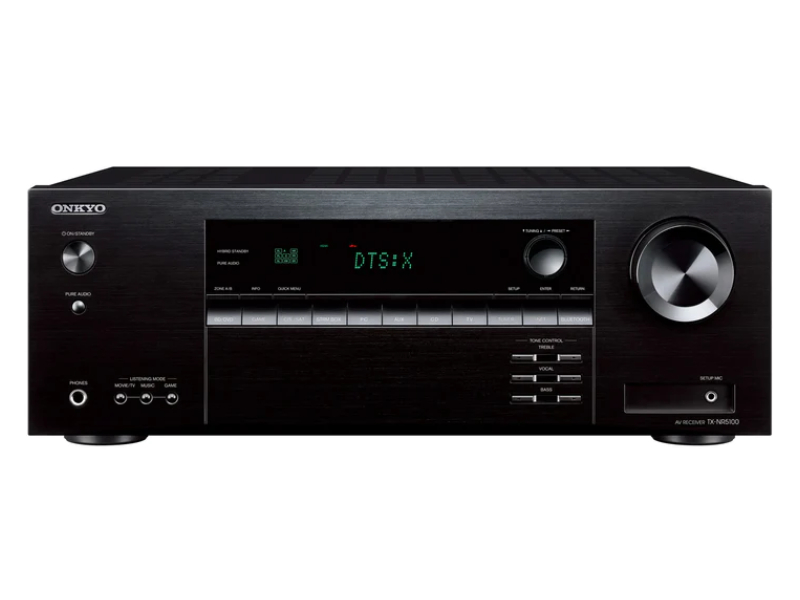

The Onkyo TX-NR5100 7.2-Channel 8K AV Receiver is an affordable and versatile home theater centerpiece tailored to deliver a best-in-class entertainment experience for your movies, music, and next-gen gaming systems.
Our SMART AV Receiver™ combines the latest in HDMI 2.1 and 8K tech, high-res audio, and immersive sound via your connected media players, gaming consoles, and advanced audio from your TV apps via eARC for an unparalleled home theater experience.
Cue and control music with Hey Google, Alexa, or Siri; or hear what’s playing through the AVR on wireless headphones with top-notch Bluetooth® with aptX HD transmission technology. The options are virtually limitless.
HDMI® 2.1 WITH 8K
HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.
ULTIMATE 4K GAMING EXPERIENCE
4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly.
SMART HOME COMPATIBLE WITH VOICE CONTROL
The Onkyo TX-NR5100 7.2-Channel 8K SMART AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.*
*Requires third-party AI compatible smart home device with microphone
ACCUEQ CALIBRATION READY
AccuEQ streamlines the initial setup of your home theater system and ensures your receiver and speakers are properly calibrated for the best performance in your listening space. AccuEQ calculates speaker distance from the listening position, adjusts speaker sound pressure level, and sets the speaker crossover. The latter selects the correct point to roll off low-frequency sound to the subwoofer. The result is clear and balanced full-spectrum surround sound.
| Amplifier | |
|---|---|
| Power output (All channels) | 165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven), 80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC) |
| Dynamic power | 160W (3 ohms, Front) 125W (4 ohms, Front) 85W (8 ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz) |
| Input sensitivity and impedance | 200mVrms/32k-ohms (Line) |
| Rated RCA output level and impedance | 1Vrms 200m Vrms/2.2k-ohms (Zone B PreLine-out) |
| Frequency response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio) |
| Tone control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio | 106 dB (Line, IHF-A) |
| Speaker impedance | 4–16 ohms |
| TUNER | |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM preset memory | 40 stations |
| General | |
| Power supply | AC 120 V~, 60 Hz |
| Power consumption (operating) | 490 W |
| Power consumption (idle) | 45 W |
| Power consumption (standby) | 0.1 W |
| Dimensions (W x H x D) | 17 1/8˝ x 6 5/16˝ x 12 15/16˝ (435 x 160 x 328 mm) |
| Weight | 8.4 kg |
| UPC | |
| UPC | 889951003564 |
| Carton | |
| Dimensions (W x H x D) | 20 11/16˝ x 9 7/16˝ x 15 15/16˝ (525 x 240 x 405 mm) |
| Weight | 12.52 kg |
| ACCESSORIES INCLUDED | |

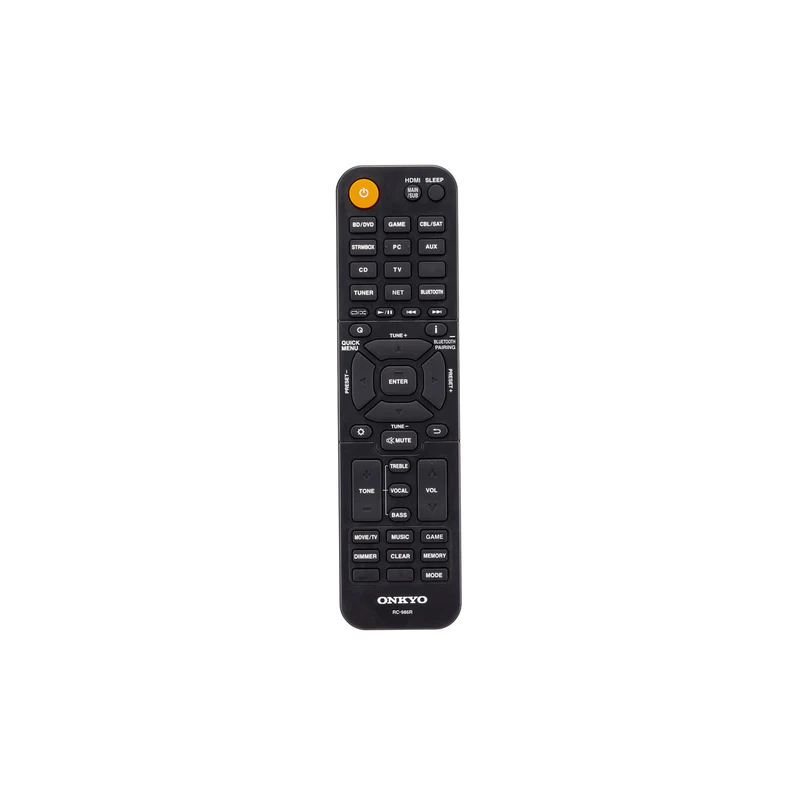

| Included | Indoor FM Antenna, AM Loop Antenna, Speaker Setup Microphone, Quick Start Guide, Remote Control, Two AAA Batteries |
