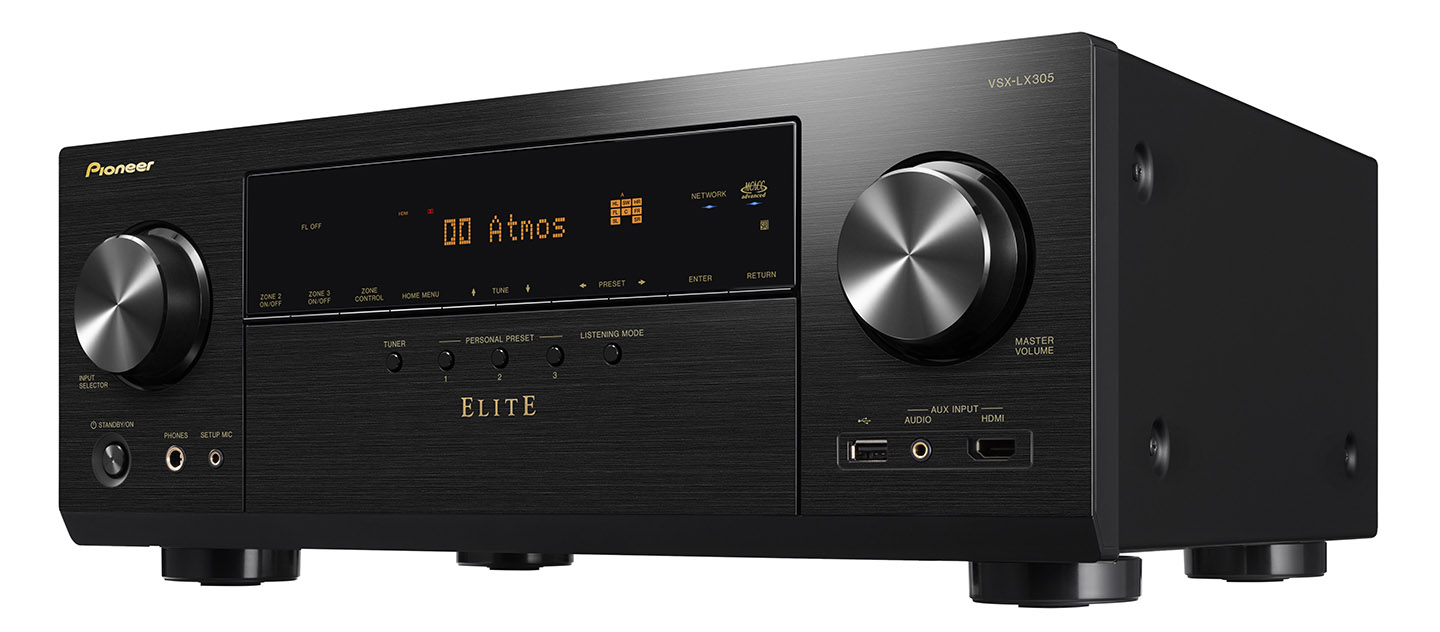

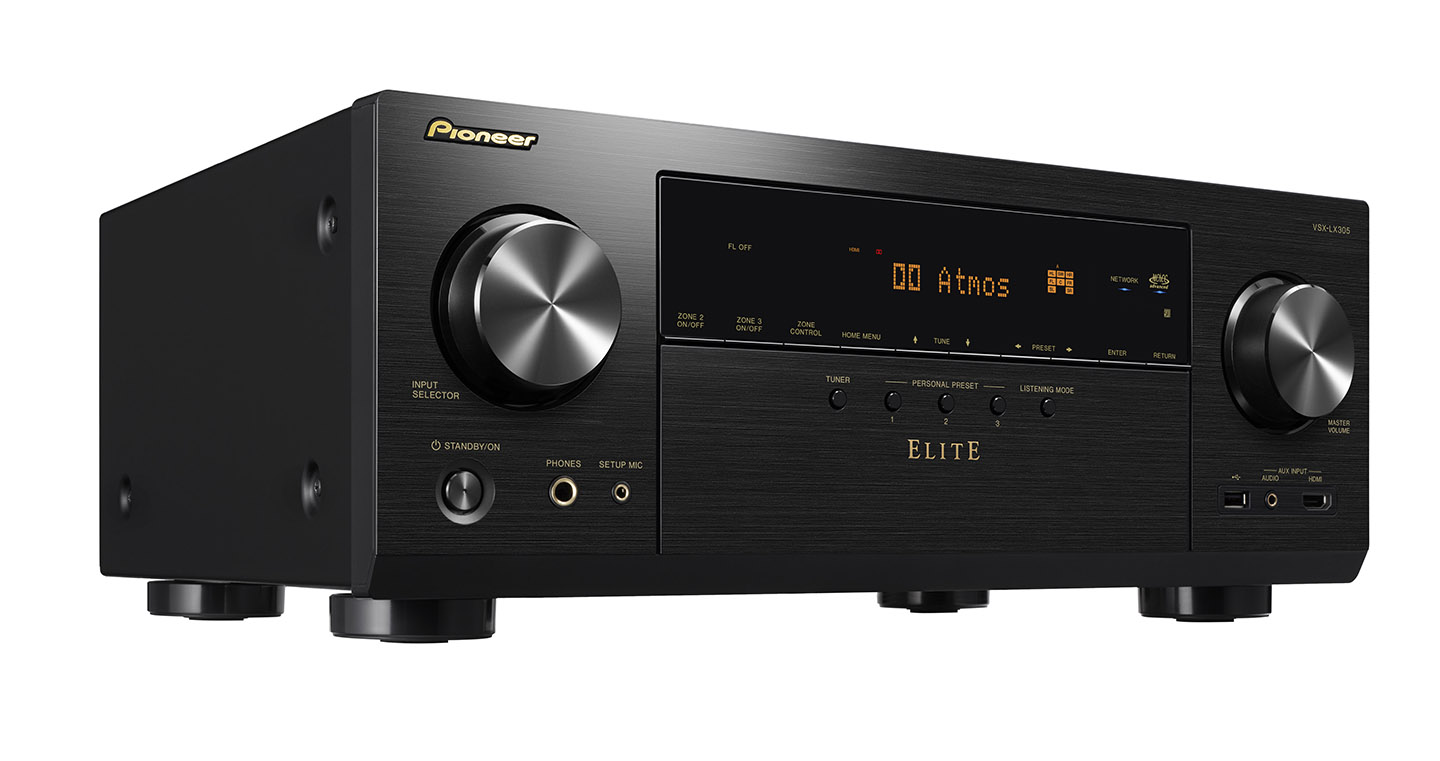

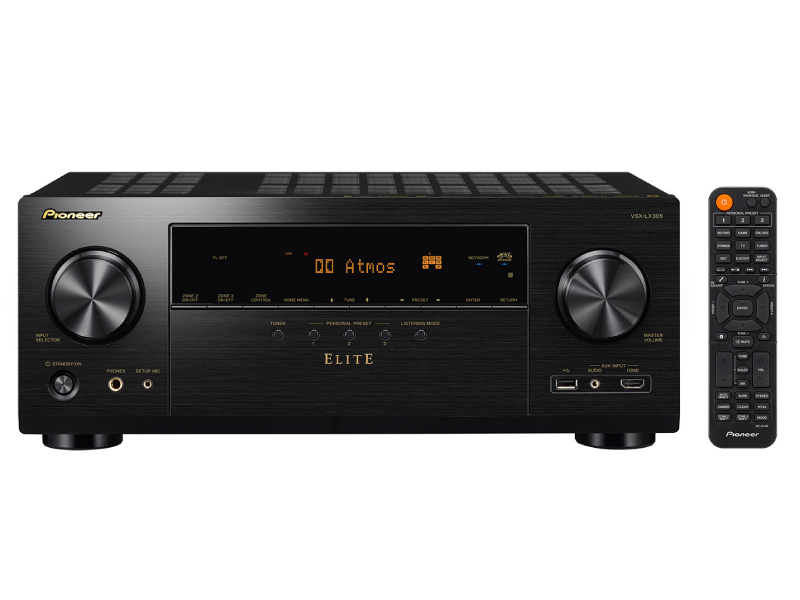

Pioneer Elite 9.2 Channel Network AV Receiver - VSXLX305

SKU : VSXLX305

$1,699.99 CAD

Literature

The VSX-LX305 ELITE 9.2-Channel AV Receiver brings multi-dimensional excitement to your home entertainment. Featuring DIRAC Live® Room Correction, the VSX-LX305 is designed and built to be the cornerstone to delivering the ultimate experience for your movies, music, and gaming.

IMAX® Enhanced means movies, concerts, and streaming games are delivered with heart-pounding sound and crisp visual enhancements to bring the world into your home theater, just as the filmmakers and sound editors intended. Featuring two HDMI-out options and 100-watts of continuous power per channel, the VSX-LX 305 AV receiver delivers uncompressed HDMI 8K/4K transfer at 40 Gbps, increasing the bandwidth over its predecessors and maximizing Next-Gen Gaming features.

Stream songs throughout your home and watch whatever you want in multiple rooms in up to 8K HD. The Pioneer Elite VSX-LX305 is truly next level.

  • Dirac Live Room Correction
  • HDMI 2.1
  • Ultimate 4K Gaming Experience
  • Imax Enhanced
  • Discrete HDMI Zone 2 Switching
  • 100 Watts per channel (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2-channel driven )
  • Subwoofer 2 Pre Out
  • Bi-directional Bluetooth with aptX HD
  • Built-in music streaming including Spotify and Tidal
  • Works with Sonos Certified
  • Immersive sound from your TV apps
  • Advanced MCACC
  • Roon Tested
  • DTS Play-Fi
  • DIRAC Live Room Correction
  • HDMI® 2.1 with 8K
  • ULTIMATE 4K GAMING EXPERIENCE
  • IMAX® Enhanced MODE

DIRAC Live Room Correction

State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS * application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers’ full potential in any listening space and delivers a uniquely pristine listening experience.

HDMI® 2.1 with 8K

HDMI® 2.1 is the most recent update of the HDMI® spec and supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, as well as Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K ensures your system is ready for the clearest and cleanest picture available both now and down the road.

ULTIMATE 4K GAMING EXPERIENCE

4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. This receiver supports higher performance from streaming devices like the latest Apple TV.

IMAX® Enhanced MODE

IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Pioneer Elite’s IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.

Built-In Streaming Music Services and Faster Wifi

Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system.

Bi-directional Bluetooth® Wireless Technology

This AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.

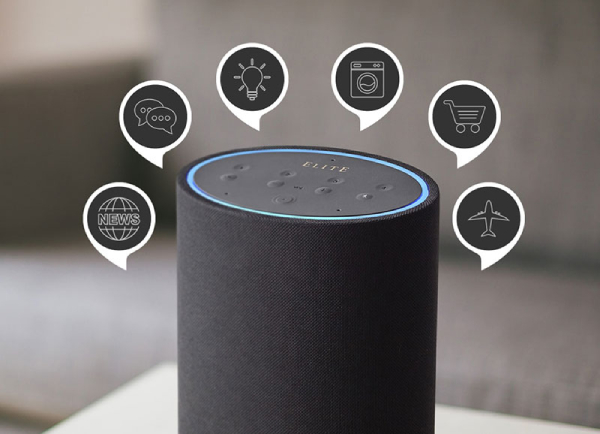

BUILT-IN MULTI-ZONE STREAMING AND VOICE CONTROL

This AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.

Works with Sonos Certified

This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app.

Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus

Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus* makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.

Roon-Tested

Roon plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon-Tested device, you can have the confidence that you will enjoy the best possible experience with it.

DTS Play-Fi

DTS Play-Fi* wirelessly streams any audio content from any compatible mobile device to your AV Receiver and DTS Play-Fi compatible audio systems, creating a multi-room system in your home. You can stream different sources to different speakers at the same time from the DTS Play-Fi app.

Amplification
Channels9
Amplification TypeDirect Energy
225 W/ch(6 ohms, 1 kHz, THD 10 %, 1ch Driven)
100 W/ch(8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC)
Audio Feature
IMAX EnhancedYes
Dolby Atmos®, Dolby Surround Upmixer supports DTS FormatsYes
Reflex OptimizerYes
Dolby Atmos Height VirtualizerYes
Dolby® TrueHD, Dolby Digital PlusYes
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS ExpressYes
DSD Disc (SACD) Playbackvia HDMI (2.8 MHz/2 ch, 5.1 ch)
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI)Yes
192 kHz/24-bit D/A Conversion for Hi-Res AudioYes
Enhanced Audio Return Channel (eARC) on HDMI Out (Main)Yes
Advanced MCACC Auto Room TuningAuto Phase Control Plus • Subwoofer EQ • Multi-point Standing Wave Control
Dirac Live® Room CorrectionYes
Advanced Sound Retriever (2ch)Yes
Advanced Surround ModesClassical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance
VIDEO FEATURES
Support HDMI 2.1*1 with 8KVRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through
Supports HDR10+HDR10, and HLG; 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; DeepColor™ (36-bit), “x.v.Color”, LipSync, and HDCP 2.3
Dolby Vision CompatibleYes
Ultra HD Upscaling (4K to 8K, 1080p to 8K/4K)Yes
Home Network Features
Works with Alexa supporting multi-room musicYes
Works with Hey Google and Chromecast built-inYes
DTS Play-Fi with Pioneer Music Control AppYes
Apple AirPlay 2 with Siri Voice ControlYes
Works with SONOS supporting multiple Sonos Connect control and Volume Pass Through modeYes
Amazon Music HD*3, Pandora®, Spotify, TIDAL, and Deezer Hi-Fi Music-Streaming Services ReadyYes
Internet Radio with TuneInYes
Hi-Res Audio File Playback via USB/NetworkYes
Up to 192 kHz/24-bit ALAC*5, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSDYes
CONVENIENCE FEATURES
Personal PresetYes
Dialog EnhancementYes
Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-inYes
Bluetooth® Wireless TechnologyTransmitter/Receiver (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX)) Built-in
Pioneer Remote AppReady for Multi-room Entertainment Control and Network Streaming
User-Friendly GUI with System Setup MenuYes
On-Screen Information for Audio, Video and NetworkYes
Web SetupYes
Auto Power Off in HDMI Standby ThroughYes
AM/FM Tuner 40 PresetsYes
Sleep TimerYes
User-Friendly Simple Remote ControlYes
Front Terminals
HDMI 1 InYes
USB 1 In for USB DriveYes
MCACC/Dirac Live Web Setup MICYes
Audio 1 InYes
Phones 1 OutYes

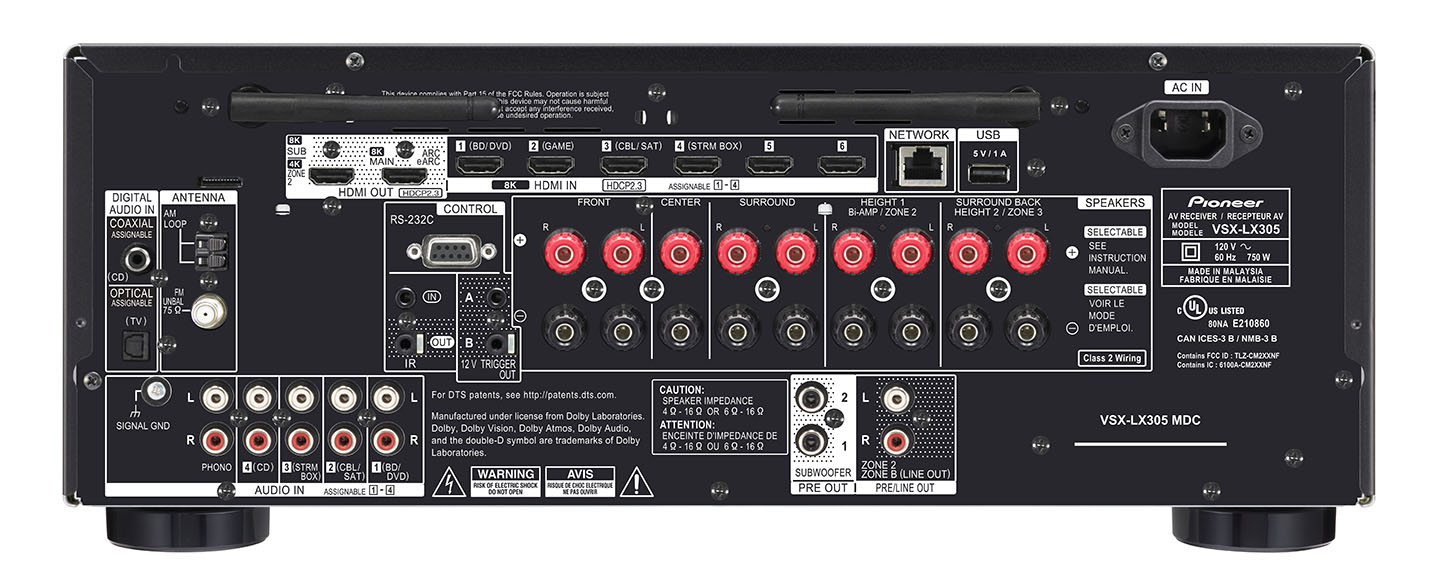

Rear Terminals
HDMI 6 In4 Assignable
HDMI 2 Out1 for MAIN, 1 for SUB/ZONE 2
Ethernet 1 InYes
USB 1 In for USB DriveYes
Audio 4 InAssignable
Phono (MM) 1 InYes
Digital Coaxial 1 InYes
Digital Optical 1 InYes
Subwoofer 2 Pre OutYes
ZONE 2 Pre/Line Out/ZONE B Line OutYes
Speaker 9 ch OutFRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP/ZONE 2, SURROUND BACK/HEIGHT 2/ZONE 3
IR 1 In/1 OutYes
12 V Trigger 2 OutYes
RS-232CYes
FM/AM AntennaYes
Warranty
Warranty3 Years
