| TUNING |
|---|
| Type | PLL synthesized |
| Memory Presets | 10 (5 FM, 5 AM / MW) |
| Rotary Tuning | V |
| Display |
|---|
| LCD / VFD / Dial Scale | LCD |
| View Area (mm / inch) | 79 x 32 / 3.11 x 1.26 |
| Graphic / Character Type | Segment |
| Back Light | V |
| Feature |
|---|
| Stereo | Speaker |
| Charger | V |
| TUNER |
|---|
| FM - Frequency (MHz) | 87.5 - 108 |
| AM / MW - Frequency (kHz) | 520 - 1710 (10k), 522 - 1629 (9k) |
| AM / MW - Adjustable Tuning Step | V |
| MEDIA |
|---|
| Aux - in | AUX-IN x 2 |
| Audio |
|---|
| EQ - EQ (Sound Effect Selection) | 6 (Flat / Rock / Outdoor / Pop / News / Indoor) |
| EQ - DBB ( Dynamic Bass Boost ) | V |
| EQ - Loudness on/off | V |
| OUTPUT DEVICES |
|---|
| Speaker - Size ( mm / inch ) | 6 1/2 inches x 2 |
| Speaker - Impedance | 8 ohms |
| OUTPUT POWER (TYPICAL) |
|---|
| AC / DC / AC to AC in (Speaker) | 7W + 7W (AC / DC) |
| Batteries (Speaker) | 4.5W+4.5W |
| POWER SUPPLY |
|---|
| AC - USA | 120V 60 Hz |
| DC in | 10 - 14V DC 1.8A |
| Batteries (Main Power) | 8x 1.5V(UM-1) |
| Batteries (Back up) | V |
| I/O SOCKET |
|---|
| Aux - in | AUX-IN x 2 |
| Accessories |
|---|
| Others | Aux-in Cable / Cigarette Adapter |
| Dimensions |
|---|
| Width (mm/inch) | 464.8 / 18.3 |
| Height (mm/inch) | 307.3 / 12.1 |
| Depth (mm/inch) | 304.8 / 12 |
| Weight (g & lb. oz) | 8295 / 18lb. 4.6oz |
| PARTICULAR PERFORMANCE |
|---|

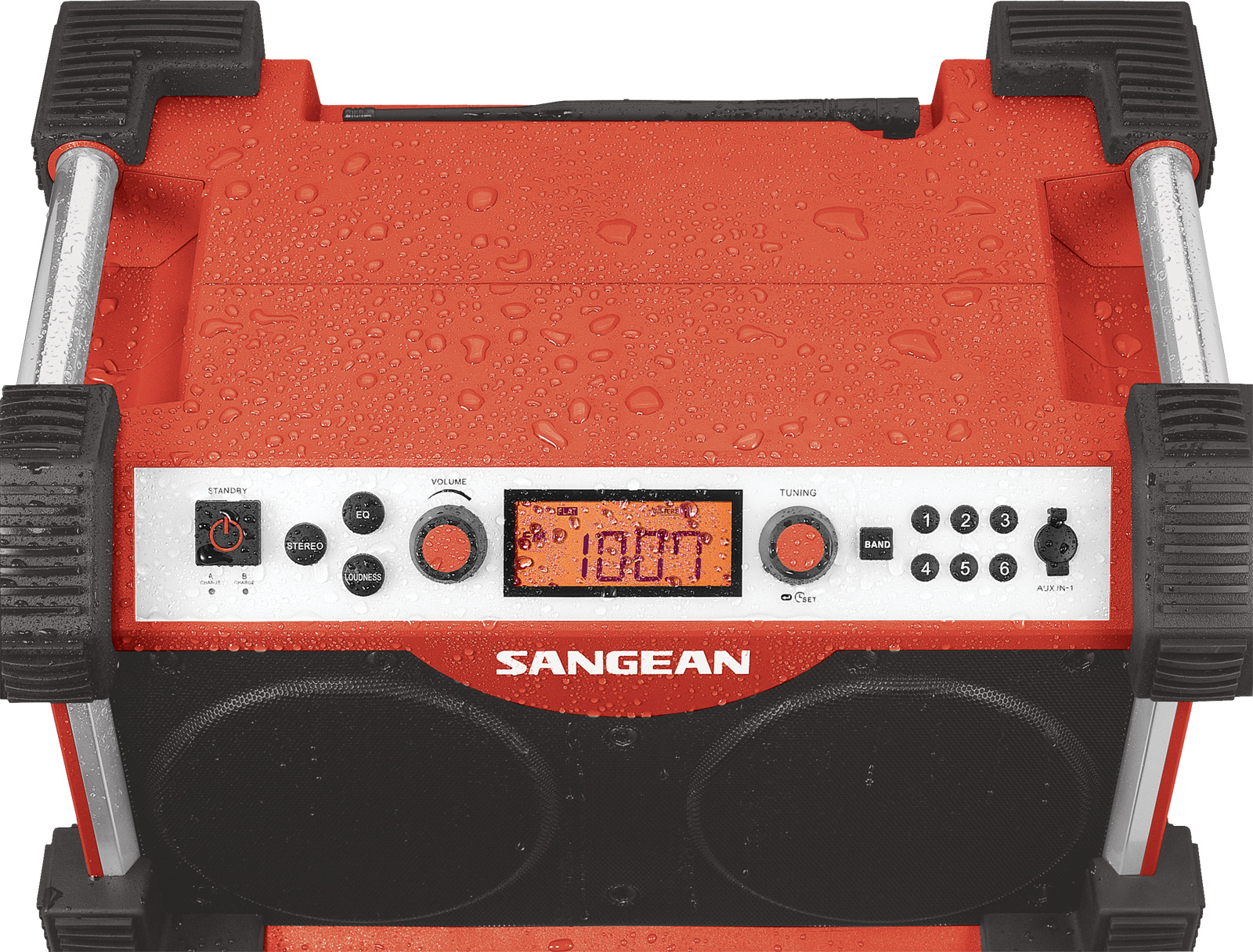

| 1 | WATER RESISTANCE JIS - 4 |
