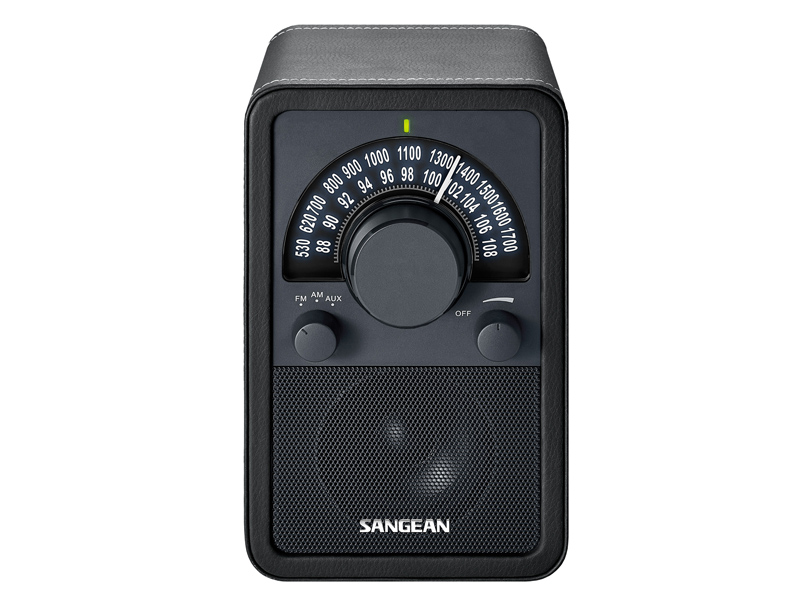

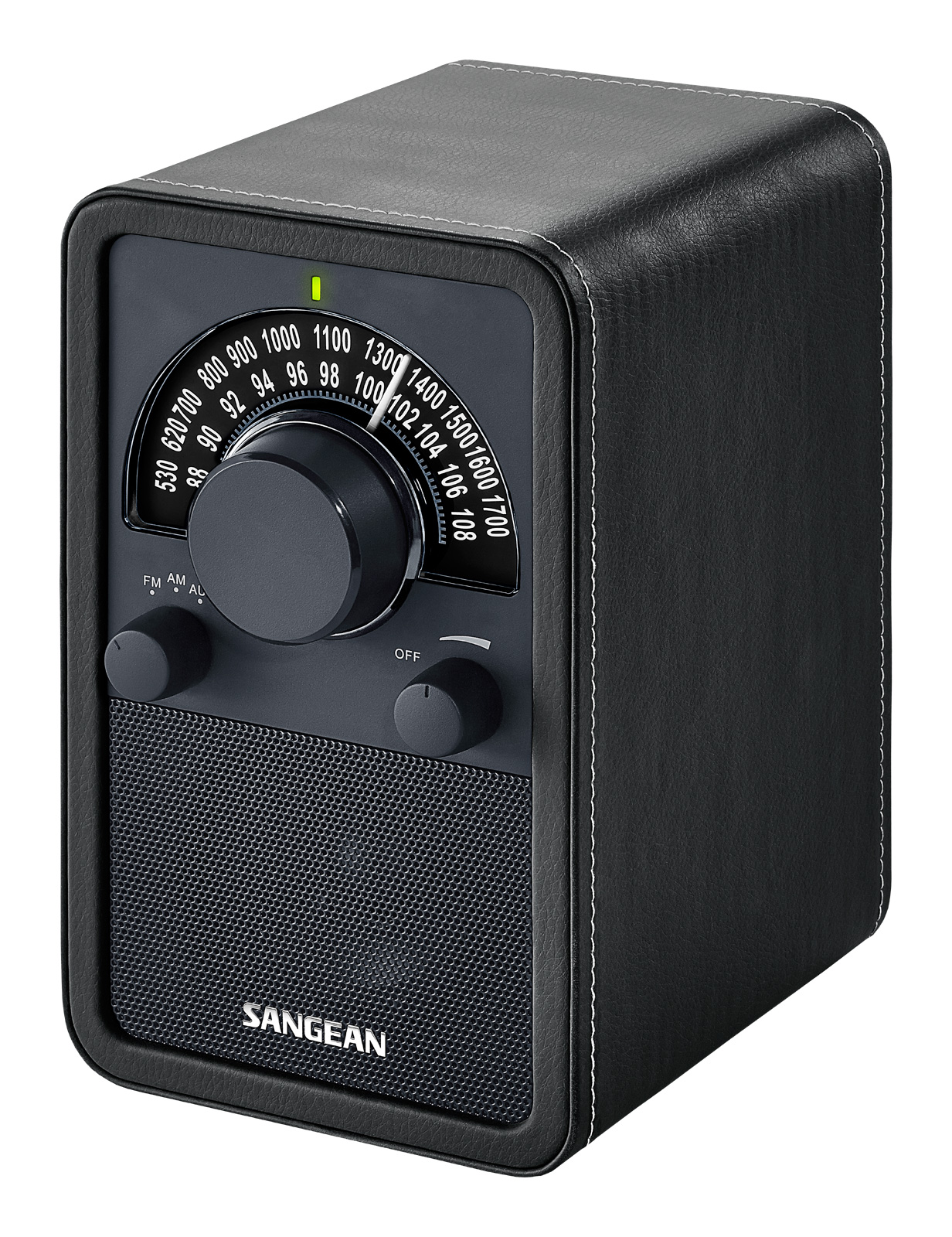

Sangean FM / AM Wooden Cabinet Receiver - WR-15BK
Sangean FM / AM Wooden Cabinet Receiver-WR-15WL
Sangean FM / AM Wooden Cabinet Receiver - WR-15SR
Sangean FM / AM Wooden Cabinet Receiver - WR-15BK
Literature
You may also like
- FM / AM 2 bands
- Tuning and Band Indicators
- Soft and Precise Tuning
- Deep Bass Compensation for Rich Bass
- 3 Inches 10 Watts Full Range Speaker with Enlarged Magnet
- Auxiliary Input for Additional Audio Sources
- Line-Out Jack Socket Connection for Audio Amplified Speaker System
| TUNING | |
|---|---|
| Type | Analogue |
| Rotary Tuning | V |
| Display | |
| LCD / VFD / Dial Scale | Dial scale |
| Back Light | V |
| TUNER | |
| FM - Frequency (MHz) | 87.5-108 |
| AM / MW - Frequency (kHz) | 520-1710 |
| MEDIA | |
| Aux - in | V |
| OUTPUT DEVICES | |
| Speaker - Size ( mm / inch ) | 3 inches |
| Speaker - Impedance | 8 ohm |
| OUTPUT POWER (TYPICAL) | |
| AC / DC / AC to AC in (Speaker) | 6.5W |
| Earphones | 5+5mW(32 ohm) |
| POWER SUPPLY | |
| DC in | 12V / 1.2A |
| I/O SOCKET | |
| DC in | V |
| Earphones | V |
| Line - out | V |
| Ext.Antenna | AM EXT ANT(USA) |
| Aux - in | V |
| Accessories | |
| AC Adapter | 12V / 1.2A |
| FM Wiring Antenna | V |
| Dimensions | |
| Width (mm/inch) | 120 / 4.72 |
| Height (mm/inch) | 204 / 8.03 |
| Depth (mm/inch) | 152 / 5.98 |
| Weight (g & lb. oz) | 1650 / 3lb. 10.2oz |
| PARTICULAR PERFORMANCE | |
| 1 | * Deep Bass Compensation |
