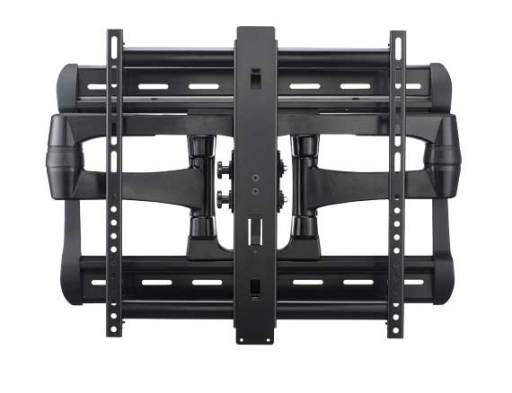

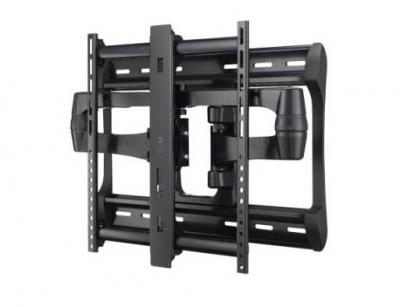

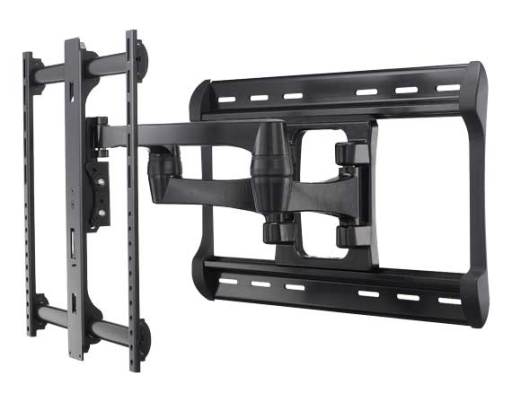

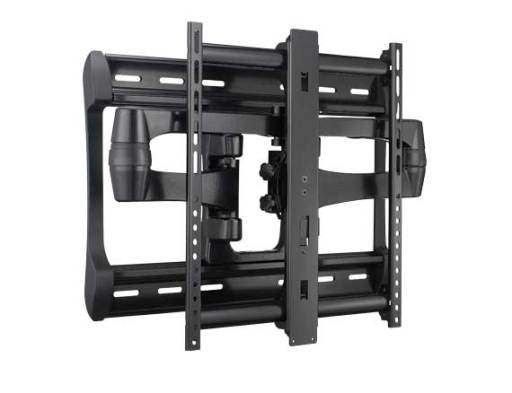

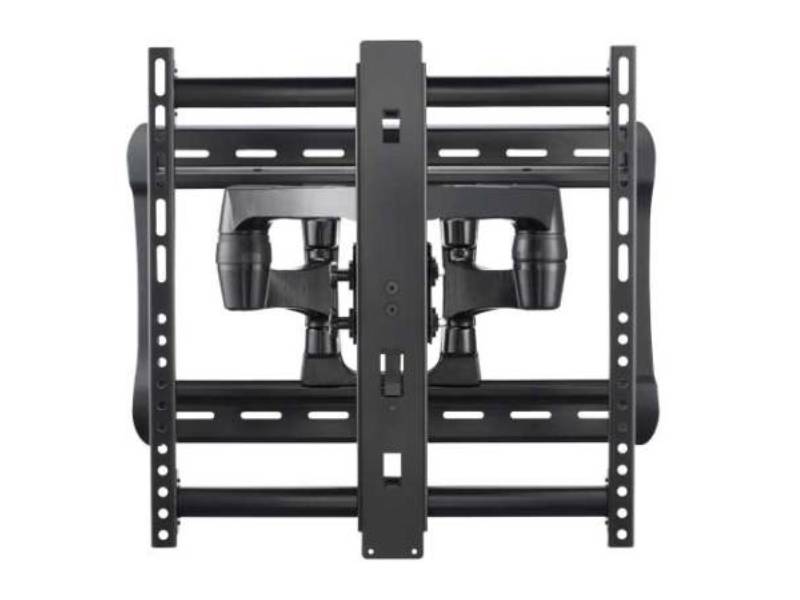

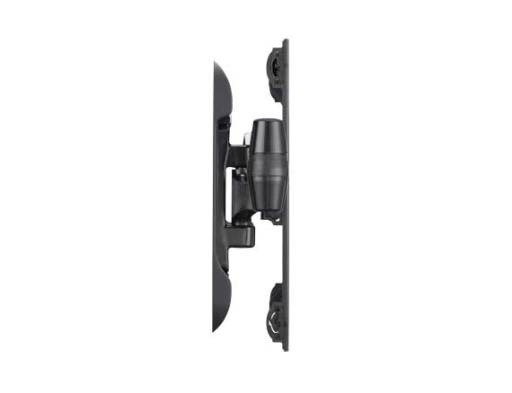

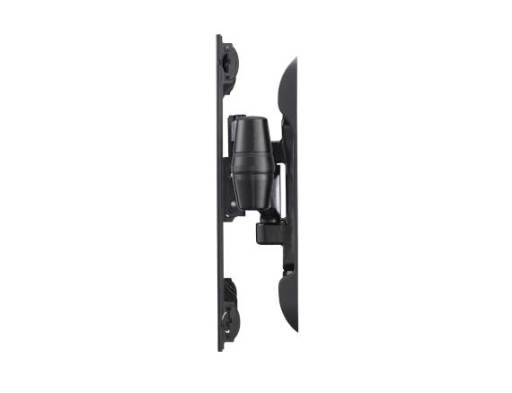

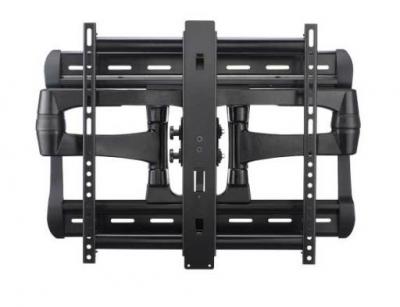

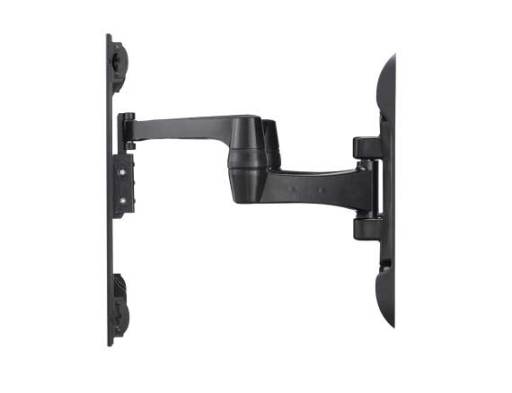

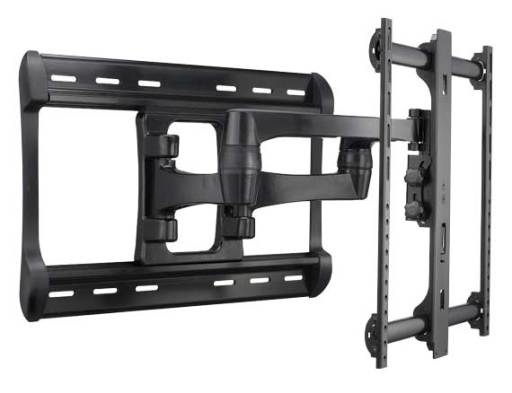

Sanus Full-Motion Wall Mount Dual Extension Arms For 42" – 90" Flat-Panel TVs - XF228-B3

Category : TV Mounts
SKU : XF228-B3


Literature

The SANUS HDpro™ Series XF228 features a pre-assembled interface and strong, ultra-light extruded aluminum wall plate for the quickest, easiest installation possible. The QuickConnect™ system allows the mounting head to snap onto the arm assembly with one easy movement and unlock with the push of a tab. ProSet™ post-installation height and leveling adjustments ensure the TV is always perfectly positioned after mounting. The XF228 arm assembly shifts left and right on the wall plate for easy TV centering, even with off-center wall studs. And the amazing FollowThru™ in-arm cable channel protects and completely conceals all cables without inhibiting movement, even through the elbow. Strong dual arms allow even the largest TVs to extend, retract, tilt and swivel up to 28" / 71.12 cm from the wall with ease. Virtual Axis™ tilting technology allows effortless viewing angle adjustment with the push of a finger. Universal mounting brackets. Mount now fits TVs 42” – 90” weighing up to 175 lbs, and all current XF228 models have been tested for compatibility with the updated size range.

Product Features

  • Conceal unsightly cables
  • Easily adjust the height of your TV
  • Easily adjust your TV without tools
  • Enjoy a great picture no matter where you watch
  • Expandable TV brackets ensure a perfect fit
  • HDpro™ product specially created for the custom installer
  • Hardware included
  • Leveling adjustments allow TV to be perfectly positioned after hanging
  • Our TV Mount products are Safety Tested and UL Certified
  • Slide TV side-to-side for perfect positioning on the wall
  • Swivel your TV left and right for the perfect view
  • TV “clicks” into place for a safe connection you can hear
  • Tilt your TV for perfect viewing from the couch or floor
  • TYPE:Full-Motion+
  • FITS TVS:106.68cm - 228.60cm
  • MAX WEIGHT:79kg
  • SWIVEL:75° / -75°
  • EXTENSION:71.12cm
Specifications
Product Brand:SANUS
Model Code:XF228
UPC Code: 793795520784 - Black
Product Width: 34.02" / 86.41cm
Product Height: 23.75" / 60.33cm
Product Depth: 3.25" - 28.00" / 8.26cm - 71.12cm
Product Weight: 54.20lbs / 24.58kg
Package Width: 37.50" / 95.25cm
Package Height: 5.80" / 14.73cm
Package Depth: 25.50" / 64.77cm
TV Size Range:42" - 90" / 106.68cm - 228.60cm
Maximum TV Weight: 175lbs / 79.38kg
Universal Mounting: Yes | 120 x 48 through 850 x 549
Tilt: 5° / -15°
Roll: 5° / -5°
Swivel: 75° / -75°
