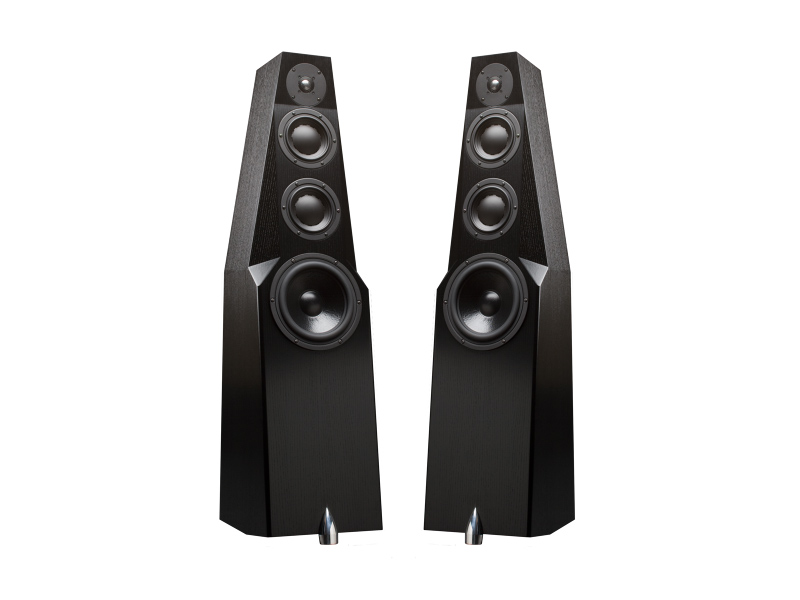

Totem Acoustic Superior Sonic Architecture Speaker - Wind (B)
$13,000.00 CAD
Literature
You may also like
Since its inception, the Wind has been appreciated for its avant-garde design and superior sonic architecture. Its complex cabinet geometry has masterfully made this dynamic, multi-driver speaker sound "Totem Great".
A totally unique (4x) driver 3-way speaker system, the Wind stands for flexibility and truly full-range expressiveness. The multiple midranges allow for an incredible amount of musically informative material to transpire in space with ease. The sound level possibilities of this large dynamic system also facilitate large and complex musical demonstrations. Design and performance are brought forth in a flexible and manageable equilibrium. Also available in Design finish.
Design features
- Avant-garde design
- Superior sonic architecture
- Complex cabinet geometry
- Absolute surreal holographic imaging
- Available in exotic veneer finishes
Technical features
- Totally unique (4x) driver 3-way speaker system
- On- and off-axis point source imaging
- Specially damped, long-throw woofer
- Special low resonance tweeter with chamber
- Multiple midranges
- Extreme-quality hard-wired crossover
| Specifications | |
|---|---|
| Break-in Time: | 200 - 250 hours |
| Placement from rear wall: | 3' - 7' / 91.44 - 213.36 cm |
| Placement distance apart: | 6' - 14' / 182.88 - 426.72 cm |
| Frequency Response: | 24 Hz - 21 kHz ± 3 dB (in room) |
| Impedance: | 4 ohms |
| Sensitivity: | 87 dB |
| Recommended Power: | 80 - 250 W |
| Crossover Frequency: | Woofer to mids, 2nd order / 2nd order Mids to tweeter, 2nd order / 2nd order |
| Woofer: | 8.5" / 21.59 cm cast frame, specially damped. High power handling. Long throw characteristics. |
| Mid-Woofers (2): | 3" / 7.62 cm voice coil. Cast frame. High power handling. Wrap-around neodymium magnet structure. Accurate linear throw. |
| Tweeter: | 1" / 2.54 cm alloy dome flexible linear suspension. Special low resonance tweeter with chamber. |
| Max SPL's: | In average room (12' x 20' / 4 x 6 m) 114 dB peak from pair at 7' / 2 m |
| Dimensions (w x h x d): | 10.7" x 44.3" x 14" / 27.18 x 112.522 x 35.56 cm (over max. size) |
