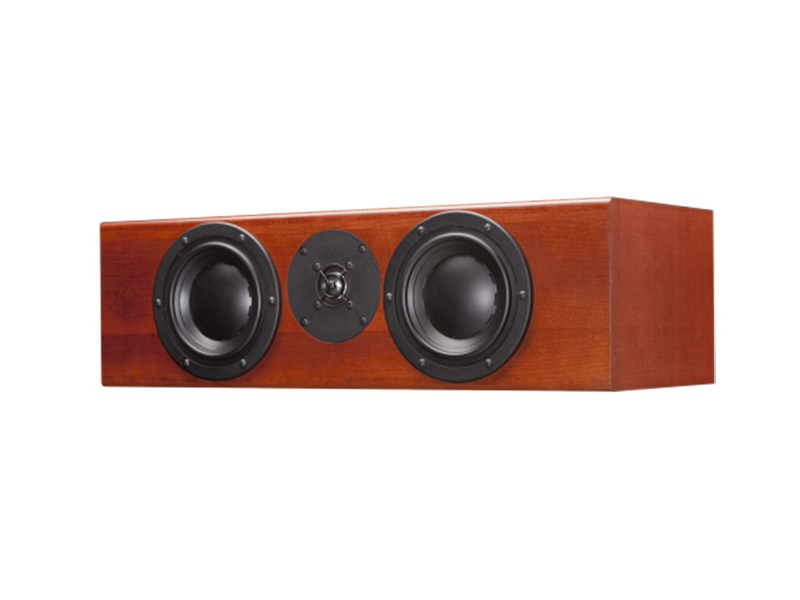

Totem Acoustic Center Speaker - Model-1 Signature Center (C)
$2,400.00 CAD
Literature
The Totem Model-1 Signature Center channel is our top echelon center speaker. The Model-1 Signature Center presents great off-axis dispersion, tremendous resolution and superb integration with other Totem’s models. The Model-1 Signature Center is fully shielded and one of the most compact full-range center channels available, offering the best musical performance of any center channel.
Design features
- Compact hi-performance chassis
- Specially modified proprietary drivers
- Bass, speed and balanced holographic dynamic presentation
- Back panel "Signature units" medallion
- Solid twin-pair WBT gold-plated terminals
Technical features
- Multi-layer borosilicate damping
- Lock mitered cabinet joints
- Exclusive hard-wired crossover
- High-quality drivers and wiring
| Specifications | |
|---|---|
| Type | 2-way vented loudspeaker for center channel application |
| Frequency Response | 40 Hz - 20 kHz ± 3 dB |
| Impedance | 4 ohms |
| Sensitivity | 87 dB |
| Recommended Power | 30 - 150 W |
| Crossover Frequency | 2.4 kHz, 2nd order |
| Woofer | 2 x 5.5" / 13.97 cm with 3" / 7.62 cm vented voice coil design |
| Tweeter | 1" / 2.54 cm alloy dome (low resonance frequency with double magnet) |
| Dimensions (w x h x d) | 22.2" x 6.5" x 9.3" / 56.39 x 16.51 x 23.62 cm |
