Totem Acoustic Powered Subwoofer 500 watt Integrated Amplifier - TRIBE Solution Sub (B)
Totem Acoustic Powered Subwoofer 500 watt Integrated Amplifier - TRIBE Solution Sub (B)
Totem Acoustic Powered Subwoofer 500 watt Integrated Amplifier - TRIBE Solution Sub (W)
The spectacular form of the Tribe Solution Sub dramatically separates it from the utilitarian mediocrity of conventional subwoofer design. Astonishing output and frequency depth that contradicts its appearance further distances itself from the pack. It is simultaneously both a beauty and a beast. And pure Totem Tribe.

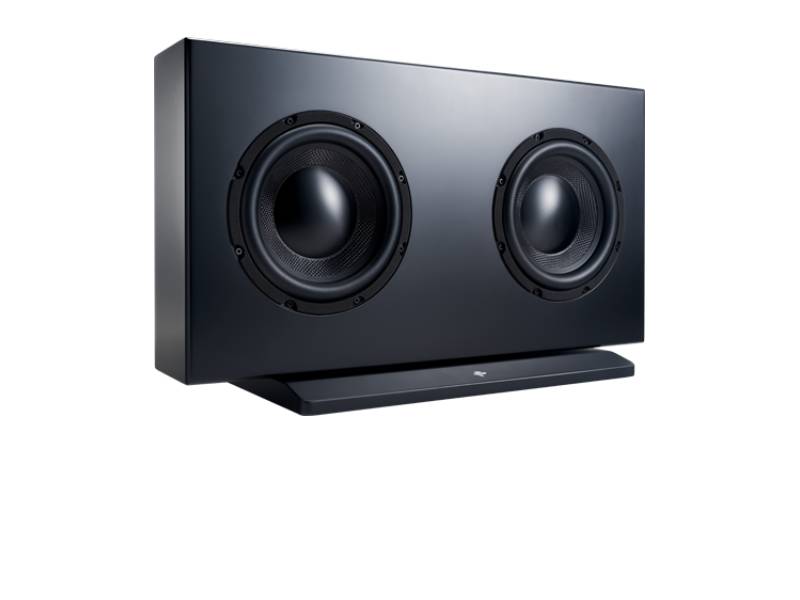

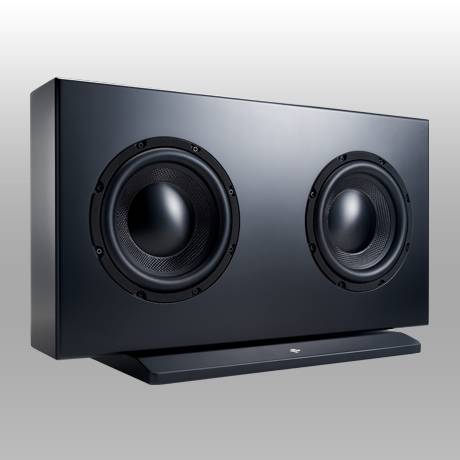

Bass excitement is delivered by the furious force of dual 8” woofers powered by a 500 watt integrated amplifier. Reinforced Fiberglass woofer cones perfectly balance strength and lightness for bass that is equally powerful and musical. The anodized aluminum dust cap dissipates heat so the entire motor structure runs cool and with bulletproof reliability.
The custom designed amplifier drives the woofers with a controlled ferocity. The compact digital design runs cooler and more efficiently than conventional amps, permitting the slim proportions and sealed enclosure.
The versatile Tribe Solution Sub can be positioned horizontally, vertically, or even on its back to hide under furniture. Output is prodigious in any orientation. The optional LINK wireless transmitter provides even greater placement flexibility. Whatever the application, this is the solution.
Design Highlights
- Multiple orientation options
- Sealed enclosure for consistent performance regardless of placement
- Slim, attractive, unobtrusive
- Wireless connectivity option

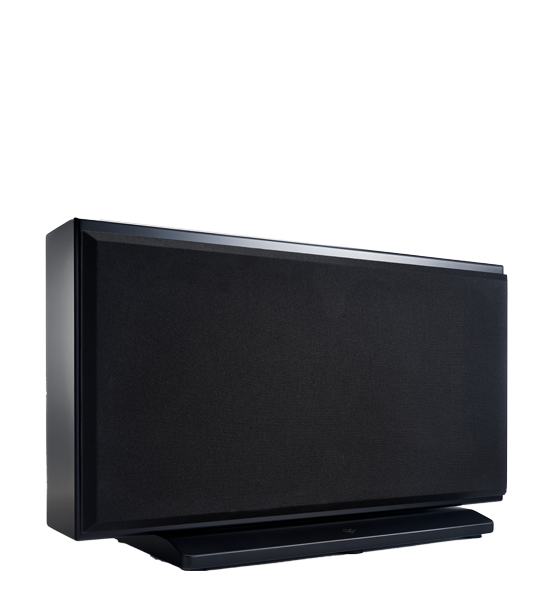

- Available in Black and White Satin with matching Magnetic grill
Technical Features
- 500 watt Class D high efficiency amplifier

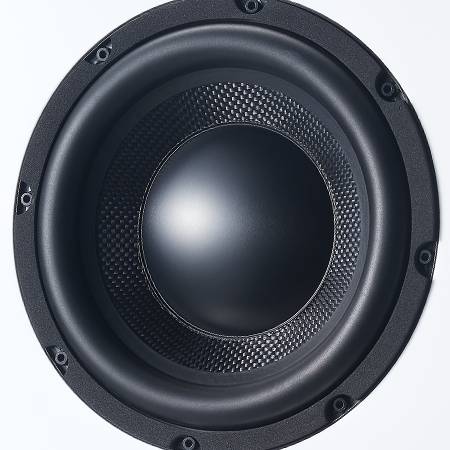

- Dual 8” Reinforced Fiberglass woofers with anodized aluminum dust cap
- High Impact and Natural BASS EQ settings
- Variable volume / phase / frequency adjustments for pinpoint accuracy
- Sealed enclosure for consistent performance regardless of placement
Customized Drivers
Bespoke Acoustic Engineering
Every single driver is completely unique to Totem and proprietary in design, engineered by Totem and then manufactured to the strictest standards to meet our parameters by the finest raw driver suppliers in the world. In some cases, where the technology is beyond the capabilities of suppliers or is wished to kept secret, Totem can and will build our own drivers. Every driver exhibits phase linearity, speed, emotion, off axis natural presentation, and spatial articulation.
Uniquely Designed Amplifiers
Specifically conceived for one job
Each Totem subwoofer amplifier is designed with a specific set of parameters for a single goal; to power the particular drivers within its given enclosure, all designed in tandem. Simply put, each Totem subwoofer amplifier is unique. As unique as every Totem driver. They are designed in tandem so they work harmoniously and with ultimate efficiency, attaining the maximum from each other. Throughout the design process the amplifier is tweaked and modified until it perfectly combines power and musicality.
Connectivity Options
Go wired or wireless

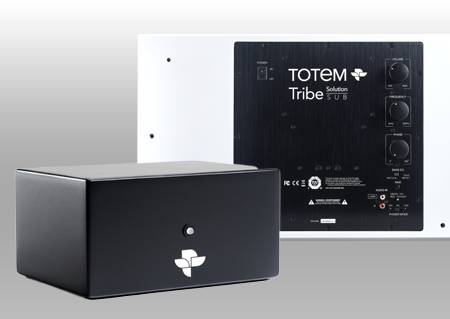

Stereo RCA and LFE inputs offer the wired connection options cover all modern gear. But, it is also equipped with an integrated Bluetooth receiver so the optional LINK transmitter can be added for wireless connectivity.
Sealed Enclosure
Better performance and versatility
The trapped air inside a sealed enclosure acts as a spring, dampening the movement of the woofer, and smoothly modulating the cone’s motion. This translates to notes being produced evenly for natural, musical, clear bass output. They can also be placed very close to boundaries or even within furniture with very little, if any, affect on their performance.
Specification | |
---|---|
Enclosure: | Sealed |
Amplifier: | Class D 500 watts |
Design: | Powered Subwoofer |
Woofer: | Dual 8” cones made of high tensile spun fibreglass strands top coated and bonded to a cellulose core. Driven by vented magnetics utilizing an oversized ferrite magnet assembly. Butyl rubber surround. |
Voice Coil: | High temperature enamel resin coated copper wire wound on a vented BASV black aluminum former |
Frequency response: | 26 Hz – 200 Hz |
Crossover: | Variable from 40Hz to 120Hz, 24dB/Octave |
Phase: | Variable from 0 to 180 degrees |
Volume: | Variable |
Inputs: | Stereo RCA/LFE/Wireless |
Power modes: | Auto/On |
Dimensions (WxHxD) : | 24.01″ x 13.07″ x 4.52″ / 610 x 332 x 115mm (cabinet only) |
Dims with feet: | 24.01″ x 13.22″ x 4.52″ / 610 x 336 x 115mm |
Weight: | 38.35lb / 17.38kg |
Finishes: | Black and white satin |
