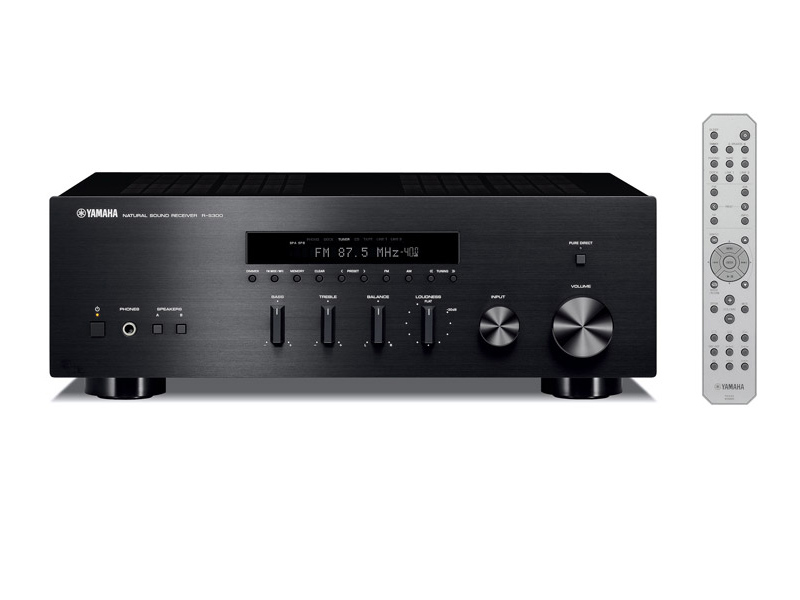

Yamaha Stereo Receiver With Aluminium-extruded Front Panel - RS300B
You may also like
Overview
- 55W x 2 (max), 50W x 2 (RMS) high power output
- ART base chassis to minimise noise and vibration
- Pure Direct for short and direct signal path
- Aluminium-extruded front panel
- Continuous Variable Loudness Control
- Subwoofer out
- Speaker A, B or A+B selection
- 40-station FM/AM preset tuning
The Look and Texture of Quality
Offers the look and feel of the top-class A-S2000, with elegant aluminium front panel and silky touch volume/selector knobs. You can feel Yamaha’s commitment to quality when you touch the knobs.
Pure Direct
Music signals travel the shortest possible route, bypassing the buffer amp and tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
Highest Quality Parts
The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.
New Speaker Terminals
These high grade speaker terminals have silver plating for best connection and outstanding durability. The pitch between jacks is wider for easier insertion.
Continuously Variable Loudness Control
Our ears lose sensitivity to high and low frequencies at low volume levels. This control lets you turn down the volume while maintaining the optimum frequency response.
Subwoofer Out
Subwoofer Out lets you connect a subwoofer for stronger bass and better overall sound quality.
Power management (Auto power off)
Auto Power Off automatically turns off the power after a certain amount of time to save energy.
New Remote Controls
The R-S300 come supplied with a slim remote unit whose button layout is both easy to understand and use.
| Specifications | |
|---|---|
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 55 W + 55 W |
| Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) | 50 W + 50 W (0.04% THD) |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 70/77/89/100 W |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) | 0.015% (25 W/ 8ohms) |
| Frequency Response | 10 Hz-100 kHz ±1 dB |
| Power Management (Auto Power Standby) | Yes (4/6/12 hours) |
| Signal-to-Noise Ratio (CD) | 100 dB (Pure Direct On, 200 mV) |

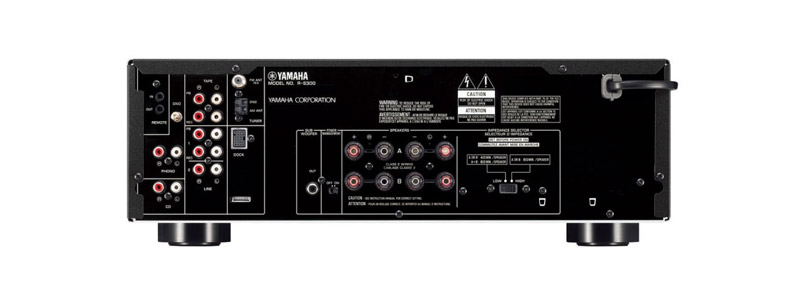

| Audio In / Out | 5 / 2 |
| FM Signal-to-Noise Ratio (Mono/Stereo) | 74 dB / 70 dB |
| Subwoofer Out | Yes |
| FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) | 3 µV (20.8 dBf) |
| Pure Direct | Yes |
| Standby Power Consumption | 0.5 W |
| Dimensions (W x H x D) | 435 x 151 x 387 mm |
| Weight | 8.8 kg |
